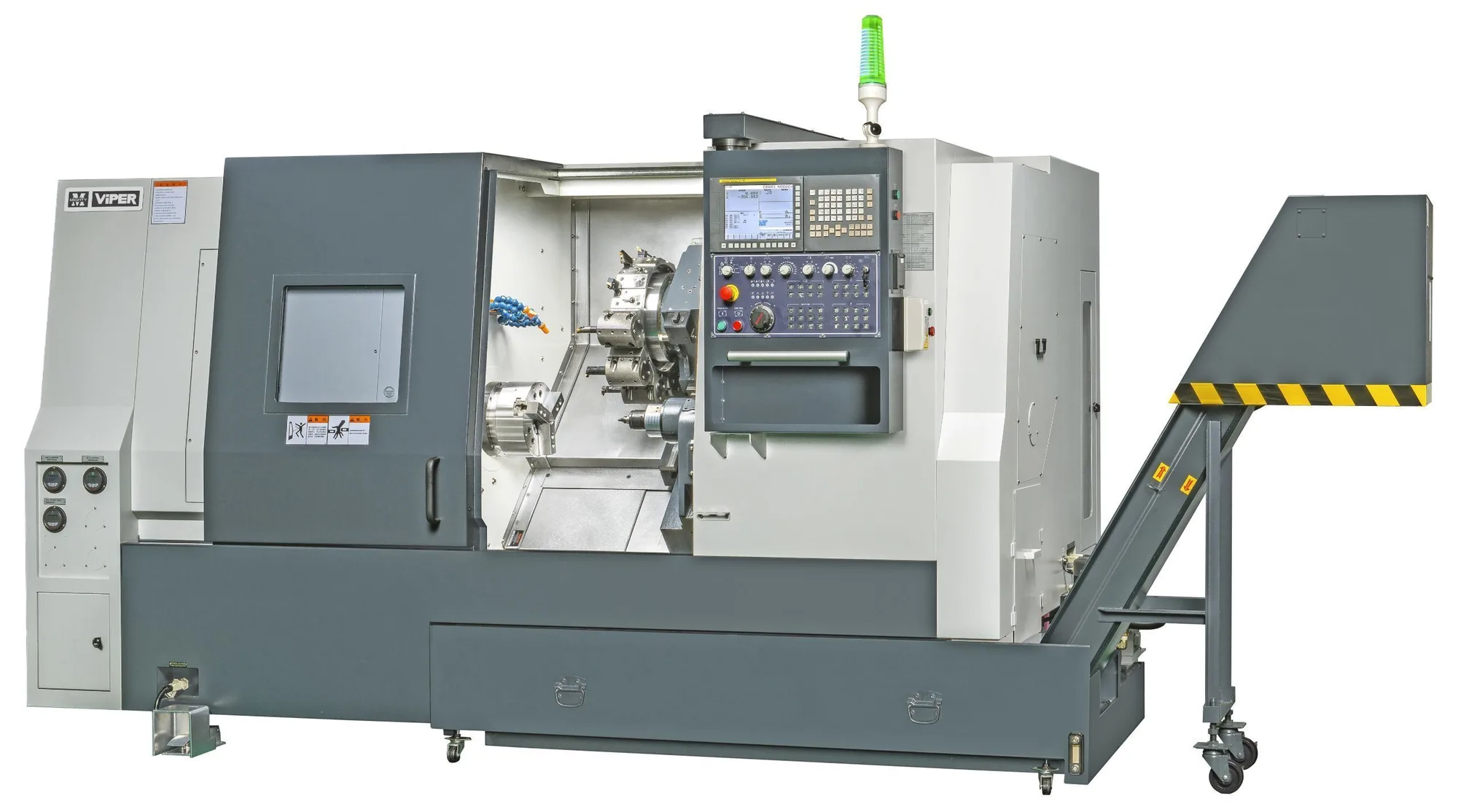

The Viper VT CNC Lathe is a high precision turning center.
Choice of turret: static block tool or live BMT-65.
| Swing | 18" | 457.2 mm |
| Machining Length | 41" | 1,041.4 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 11.42" | 290.07 mm |
Swing Over Bed 18 (460)
Max. Turning Diameter 11.42 (290)
Max. Turning Length 22 (550) / 41 (1050)
X Travel 9.25 (235)
Z Travel 21.65 (550)
Spindle Nose A2-8
Spindle Thru Hole 3.4 (86)
Bar Capacity 3.0 (76)
Max. Boring Bar Diameter 2 (50)
Spindle Motor** (hp) 35
Spindle Speed Range (rpm) 3500
Turret Tool Number 12
Units = inch (mm) | *Optional accessory **30 min. rating
