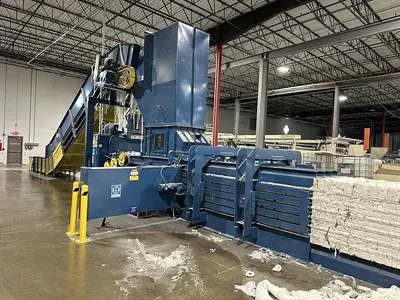

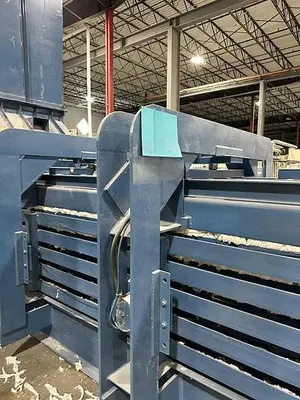

Balemaster EO-2273
*Conveyor not included
*Rebuilt in end of 2021: New PLC, new cylinder, new floor, O rings & hoses replaced, cleaned and painted
*Post rebuild 2021-2024: Baling 1 trailer a week of tissue average
*Will be cleaned & painted upon sale, and have a new HMI installed
*Was running when removed, no known issues.
10" Main Cylinder
75hp
Bale size: 42" x 42" x variable length
Feed chute cross section: 39 1/2" x 60"
Charging chamber volume: 73.5 cubic feet
Strokes per minute: 5
Typical bale weights (Approximate)
OCC 60" long 61.25 cu. ft. bale weights 1,715 lbs.
OCC 72" long 73.5 cu. ft. bale weights 2,058 lbs.
News 60" long 61.25 cu.ft. bale weights 1,837 lbs.
News 72" long 73.5 cu.ft. bale weights 2,200 lbs.
Highgrades 60" long 61.25 cu. ft. bale weights 2,143 lbs.
Highgrades 72" long 73.5 cu.ft. bale weights 2,570 lbs.
