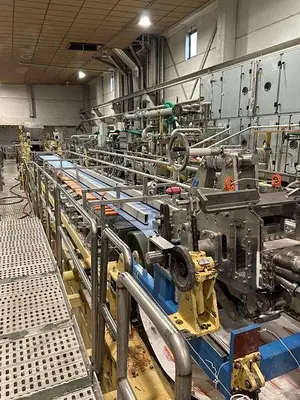

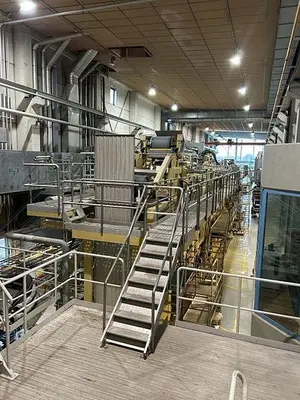

PILOT/LAB 13.3" (340MM) WIDE PAPAER MACHINE 60 - 140 GSM 2-PLY

109857
Used Pilot/Lab 13.3" (340MM) 2-ply wide paper machine,
Two ply 140 + 40 g/m2 400m/min fourdrinier + twin wire former Stratified forming on fourdrinier + top former 85 g/m2 700m/min
Speed max 2500m/min (design speed), roll-up of wet web after press, approx. 1000m/min.
Kraft liner 65g/m2 1000m/min, twin wire former
Production, max 22kg/min (dry weight in headbox)
Power consumption during normal run: approx. 1,5MW

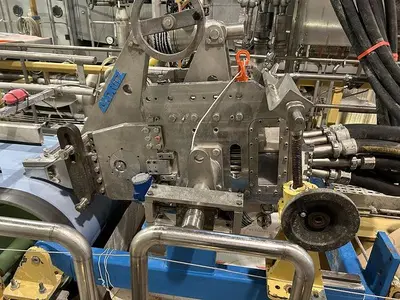

Andritz headbox 340mm (2008), Valmet headbox 330mm

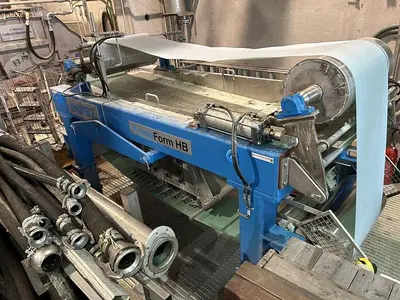

Andritz top former 2012

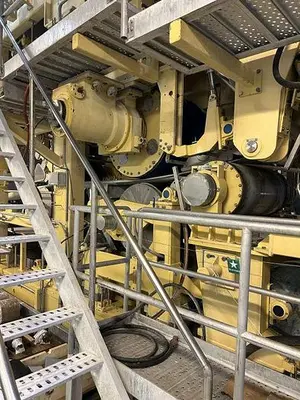

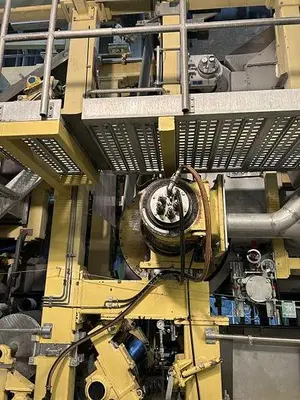

1st press: Double felted roll nip, max press load 150 kn/m

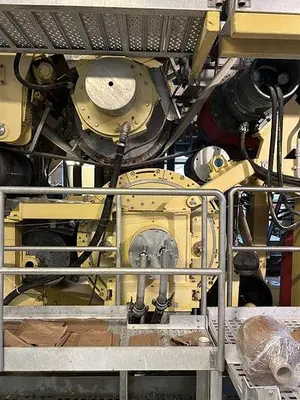

2nd press: Sym-belt lower roll, solid upper countershaft, double felted or single felt with trans belt, max press load 1200kN/m
3rd press: Sym-belt upper roll solid lower countershaft, single felt against solid countershaft, max press load 1200kN/m
2nd and 3rd press have tiltable shoes.
Cut web through press max 250mm.
Press section rebuilt to Sym-belt 1996.

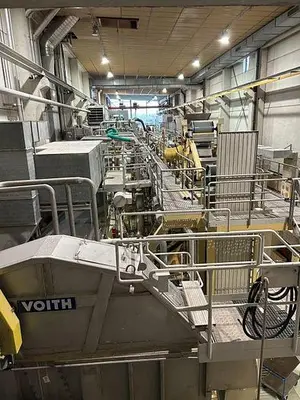

Closed white water system with fiber recovery over Voith disc filter (built year 2007)

Built in 1982
Shut down 2024, still installed.
Additional info available.
