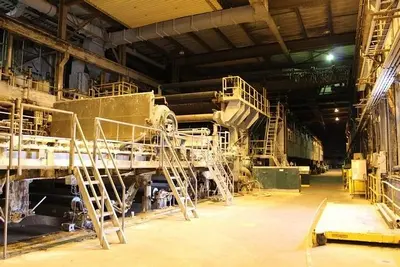

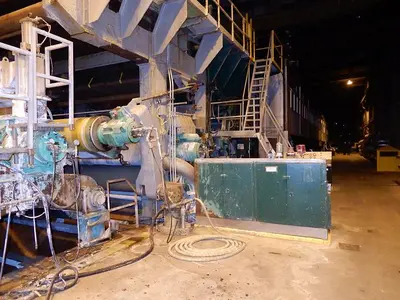

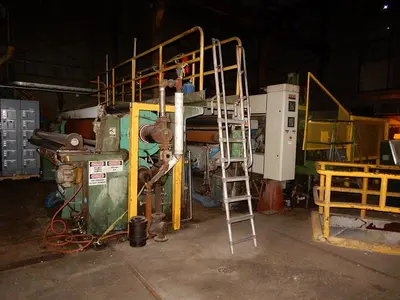

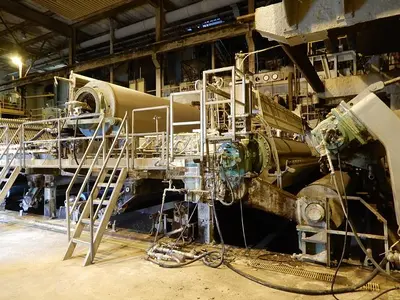

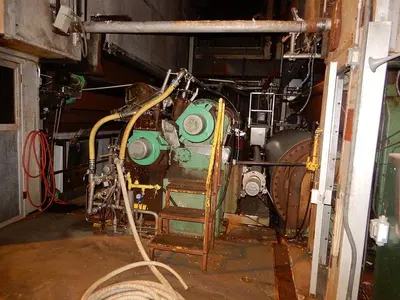

USED MECFAB PAPER MACHINE

156" (3.92M) TRIM FOURDRINIER PAPER MACHINE 2,200 FPM 50/60 HZ

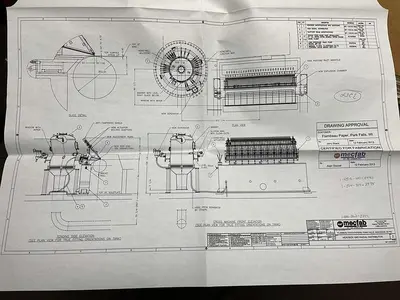

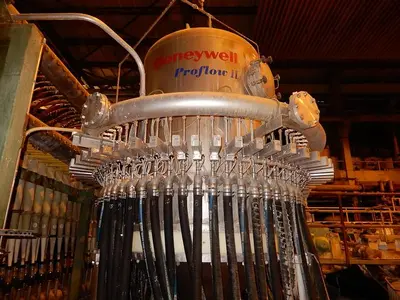

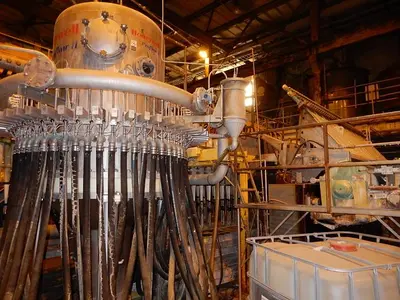

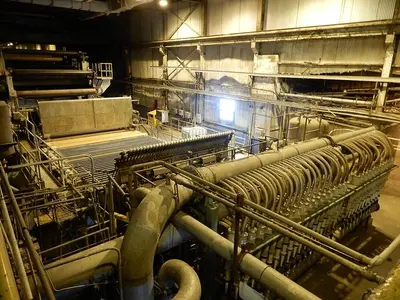

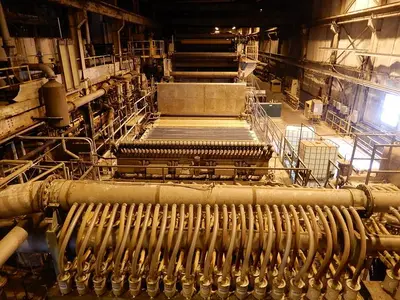

MacFab S/S Air Pad HeadBox (2013) With Honeywell Model ProFlow II Position Automatic Profile
50 - 235 GSM, Dilution System installed New in 2013.

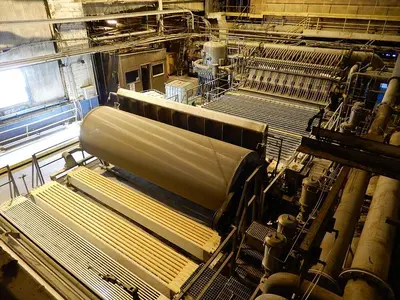

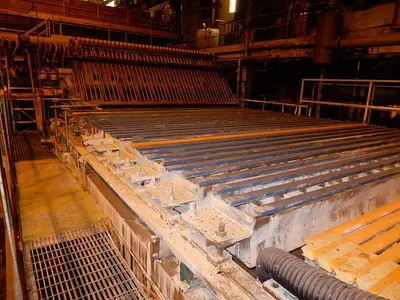

Cantilevered Fourdrinier S/S Table with (11) Suction Boxes

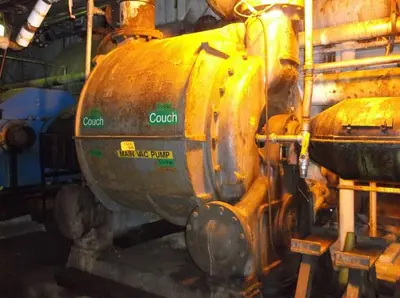

Suction Couch Roll 194" Face
Dandy Roll

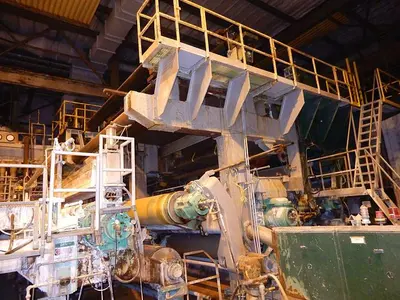

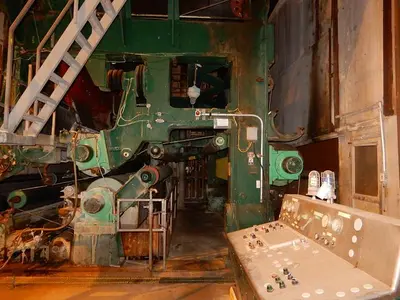

1st Press Hewitt Suction Press
2nd Press Plain Press Nip Roll- Blind Drilled

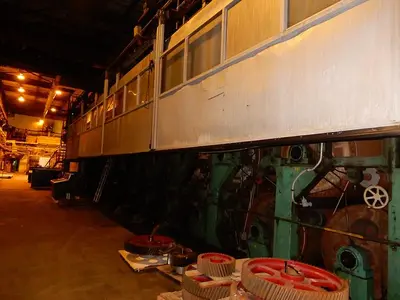

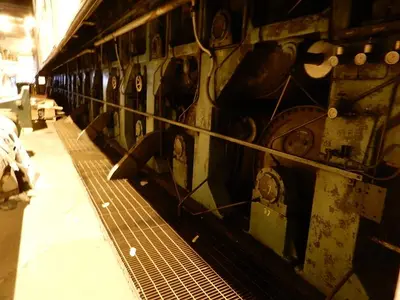

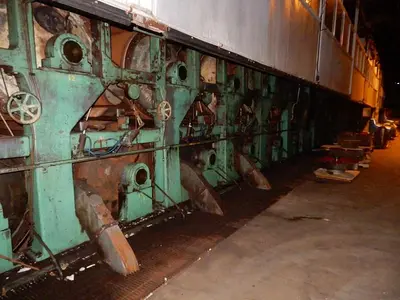

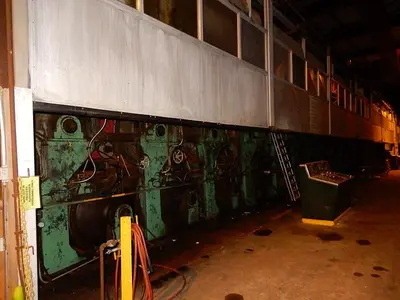

Dryer Section: (38)100 PSI Dryers 183.5" Face x 60" Diameter
Flooded Nip Size Press 182"
Manchester 2-Roll Calendar 174" Face Rated 900 PLI
Honeywell Model 4000 Gauging System Scanner
Air Turn Up System

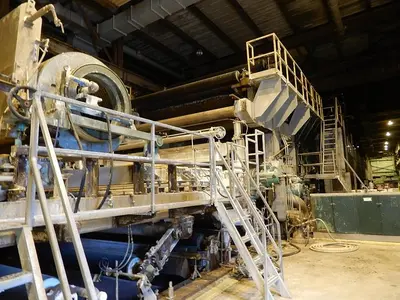

Voith Horizontal Track Reel 174" Wide
Jagenberg Vari-Step 65 Two Drum Slitter Rewinder s/n 30-23922 Mfg 1987. Dual (2) 250 HP Main motors.

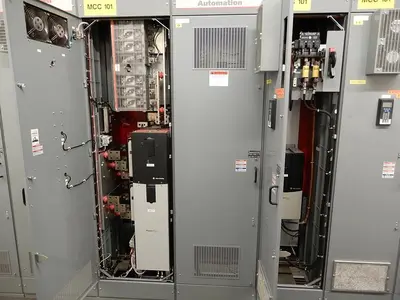

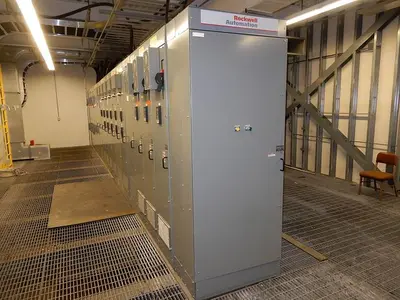

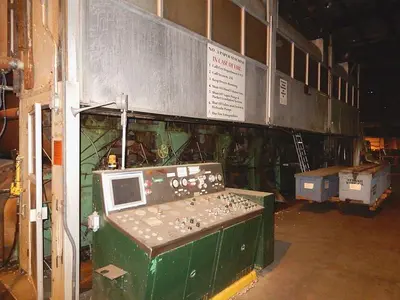

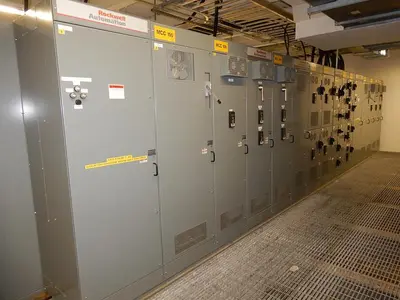

All Allen Bradley Drives and Controls Updated 2008 with new sectional drives Dual HZ 50/60

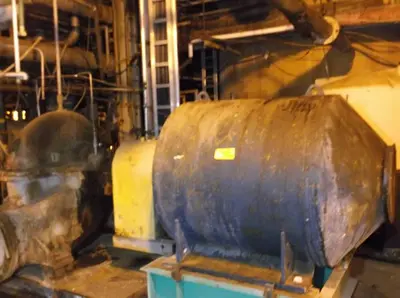

Fan Pump with 700 HP motor
Last ran 50-250 GSM

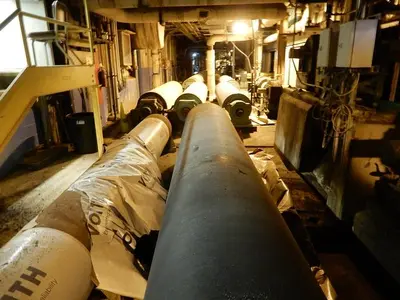

All Spare Associated Rolls
Complete Engineering and documentation available at site
