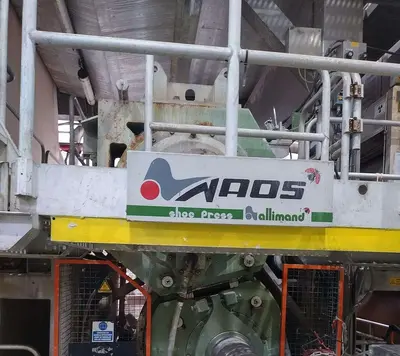

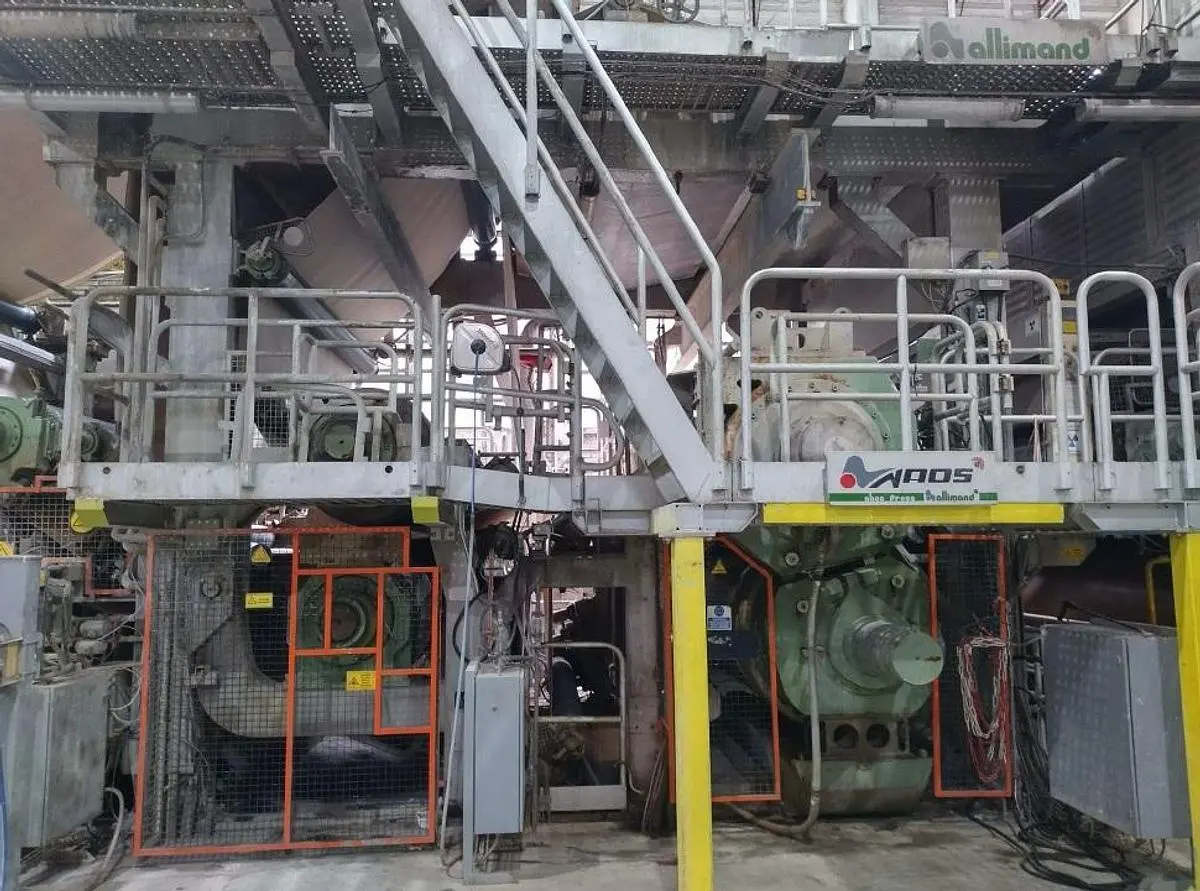

USED 2017 NAOS SHOE PRESS

125" Trim Width (3200mm) NAOS Shoe Press
Type: NAOS shoe press
Manufacturer: Allimand, France
Year of manufacture: 2017
Roll face width: to be checked
Wire width: 3500 mm
Linear nip load: 80 N/m - 1000 Kn/cm2
Design Speed: 150 - 400 m/ min
Operating Speed: 320 m/ min
Drive side: left hand
Stainless steel frame of press part (2017)
Scope of supply:

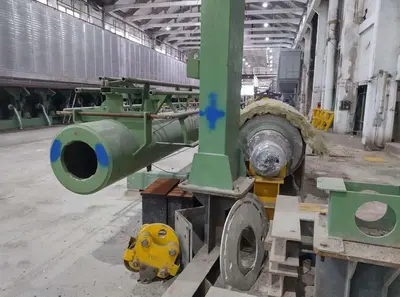

Shoe press bottom roll with its frame
Shoe press top roll with bearing housing
Top roll holder with hydraulic pistons
Hydraulic power pack for shoe press

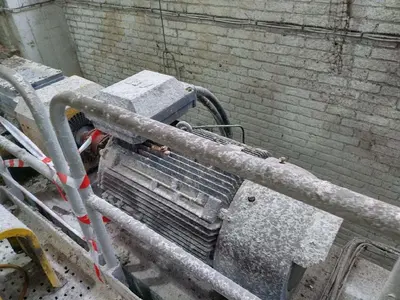

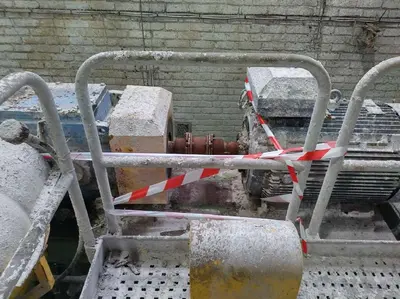

Mechanical drive for shoe press with electric cabinet
Tool for exchange of shoe belt

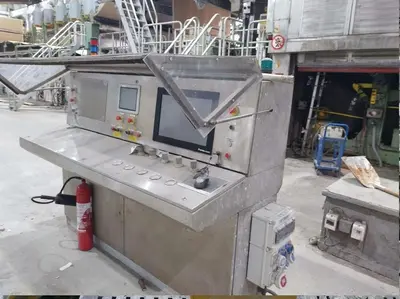

Control panel
Parameters of machine, where it was last installed:
Working width: 3180 mm
Average production output: 17,7 t/h
Design Speed: max 400 m/ min
Operating Speed: 320 m/ min
Paper grades: GD - GT Coated board made from recycled materials.
PM grammage: 250 - 460 gsm
49-50% dryness achieved after shoe press.
Also available: other parts of above paper machine such as pope reel, size press vacuum formers
