USED RECARD CRESCENT FORMER TISSUE MACHINE

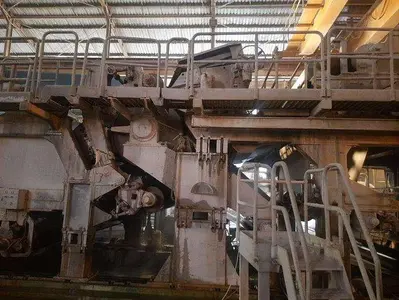

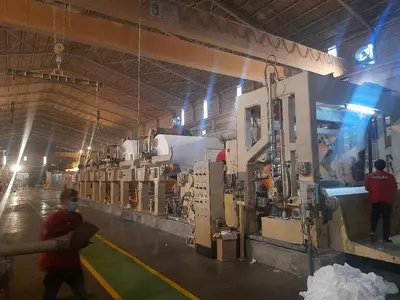

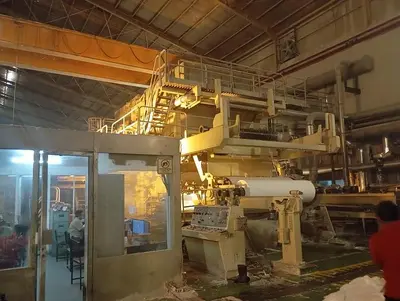

Recard Crescent Former Tissue Machine
Manufacturer: RECARD
Type: Crescent former
Year of construction: 1998
Material width on reel: 2750 mm
Production speed: up to 1400 m/min
Grammage: 14 to 23 GSM
Raw material: Virgin pulp
Drive voltage: 400V 50 Hz
Drive type: (AC & DC 400V)
DCS: Siemens S7-400 (Include MDP & MCC, cables)
Products: Tissue: Napkins, facials, toilets & kitchen towel
Headbox supplier: Recard
Pond side width: 2780mm
Layers: 1
Wet section/pressing:
Suction press: 80 kN/m
Blind press: No
Yankee Cylinder:
Diameter: 3850mm
Width: 3050mm
Max pressure: 8 bar
Dyring hoods: (Valmet 1998)
Energy: Gas/max temp 450 degrees C
Profling: Yes 6+2
Doctor blade:
No. 1 cutting
No. 2 creeping with conformatic complete with oscillation
No. 3 cleaning

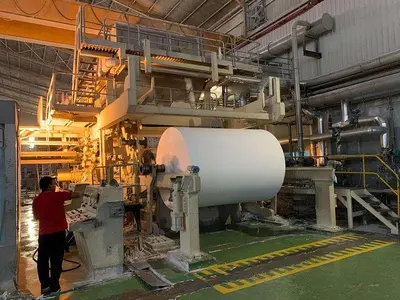

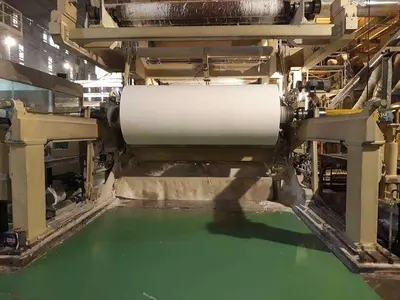

Pope Reel
Max roll diameter: 2300mm
Max width: 2730mm
Spare parts:
2 wire rolls
2 felt rolls
1 suction press roll
4 spools
Approach flow:

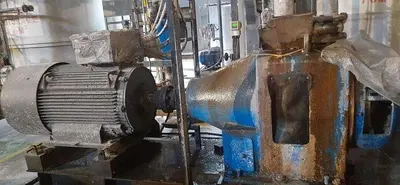

Fan Pump Manufacturer Ahlstrom, Model ZPP42 – 500, Year 1997, Power : 403 kW, DC Motor
Vertical Screen Manufacturer ST Machinne, Italy, Model SPT 1200, Year 1997, Power : 45kW, AC Motor

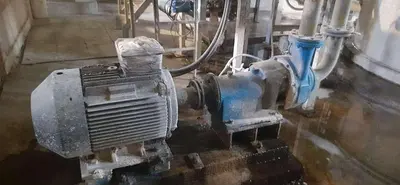

Vacuum pump Nash, Model 904T 1, Year 1998, Power : 250kW, AC Motor
Vacuum pumps, Manufacturer Azmec, Italy, Model AL-100/2000, Year 1998, Power : 160 kW, AC Motor

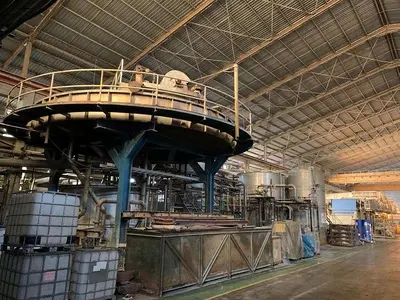

Fiber recovery: Krofta KWI Model SPC 33 (Capacity 6000 Lpm), complete with accesories

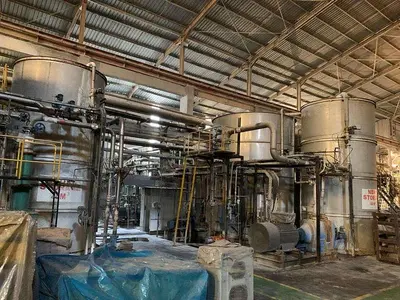

STOCK PREPARATION #2:

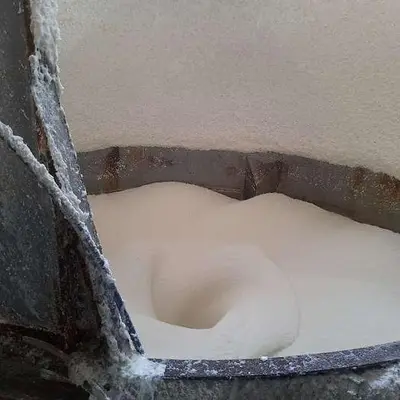

Pulper #1 Helico, European Manufacturer, Capacity : 16m3
Power: 160 kW agitator
With conveyor
High density cleaner: 1 unit
Refiner 1: double disc type, make Bruno, Brazil in 1997. Disc diameter 26“. Power : 330kW
Refiner 2: double disc type, make Bruno, Brazil in 1997. Disc diameter 26“. Power : 375kW
Deflaker 1: Chinese make, 15-60 t/day, made 2017. Power : 55Kw
ACCESORIES:
Includes: Pump, tank, agitator, instruments, valves, piping

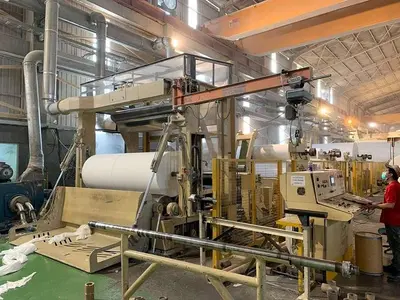

REWINDER:
 Manufacturer: ACelli
Year: 1998
Max width: 2750 mm
Max reel diameter: 1800 mm
Production Speed: 1000 m/min
Basic weight range: 12 – 30 gsm
Max plies: 4
Drive voltage: 400V DC
Drive type: ABB
Slitters: 6 Pcs by maxcess
