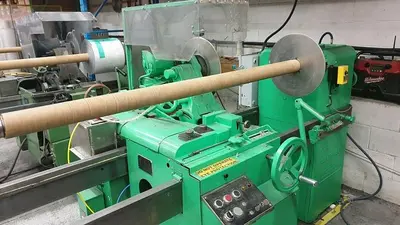

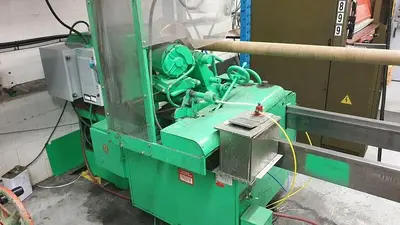

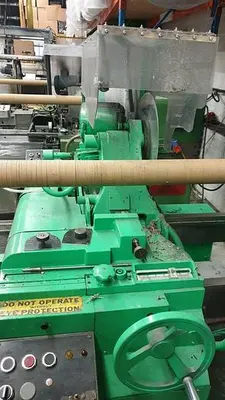

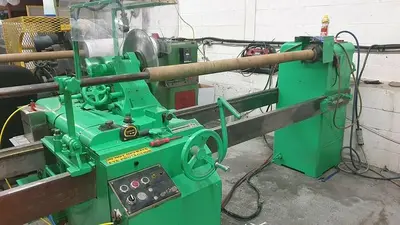

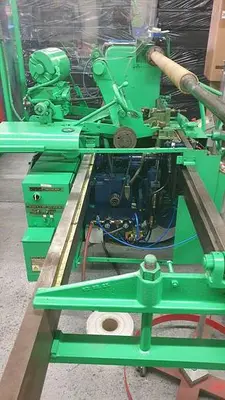

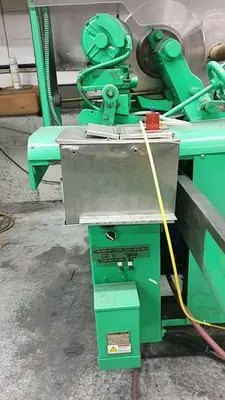

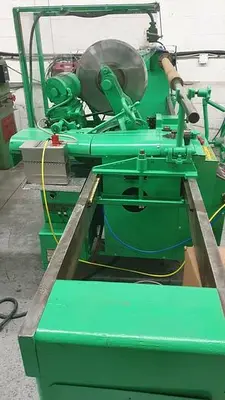

USED LEVER 500

903700
16” diameter blade (14" Max Diameter Roll)

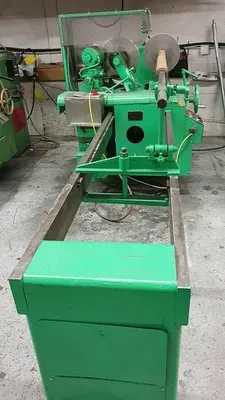

Shaft length –85”- (distance from chuck face to shaft support)
Spray mist system
Standard external 4 pin chuck
600 volt 3 phase

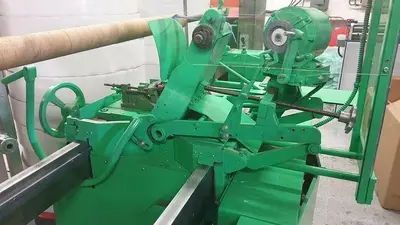

Locked knife for material
Attached grindstone and diamond dressing tool with separate motor.
Adjustable automatic dwell time control
Chuck converted to AC Drive for Speed Control

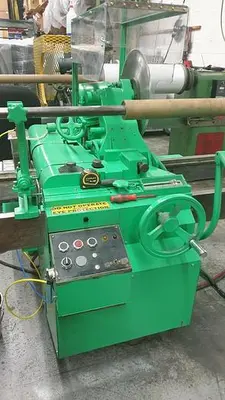

Machine equipped with both automatic and manual mode setting

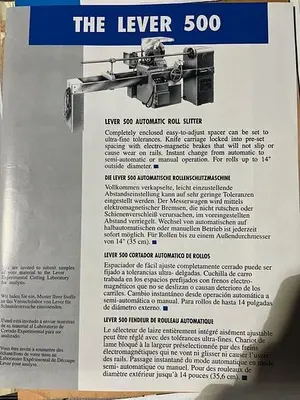

Completely enclosed easy-to-adjust spacer can be set to ultra-fine tolerances. Knife carriage locked into pre-set spacing with electro-magnetic brakes that will not slip or cause wear on rails. Instant change from automatic to semi-automatic or manual operation. For rolls up to 14" outside diameter.
