USED 2003 CHESTNUT ENGINEERING MODEL 150

904171.026

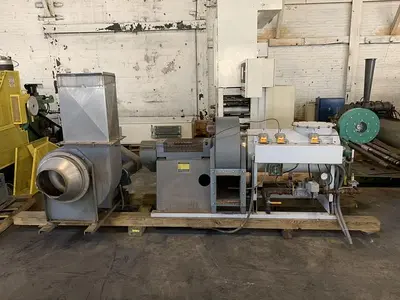

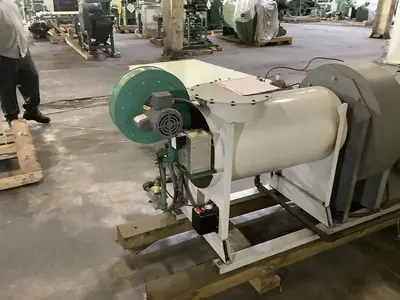

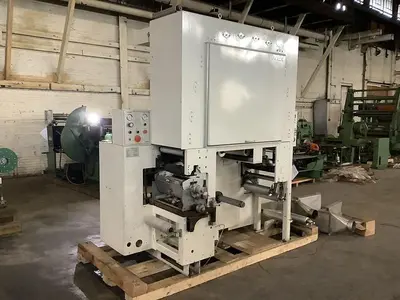

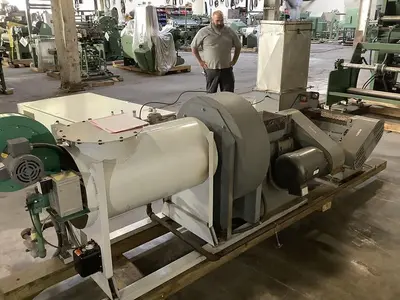

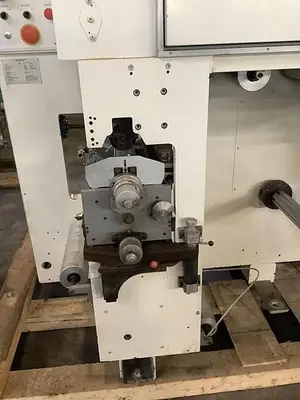

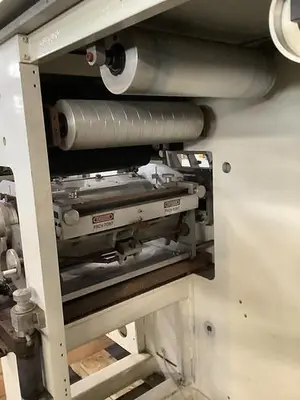

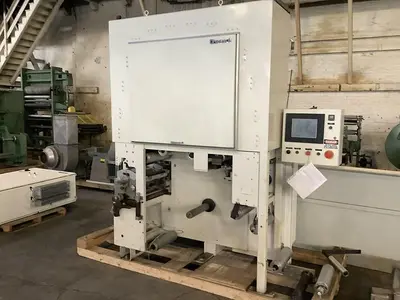

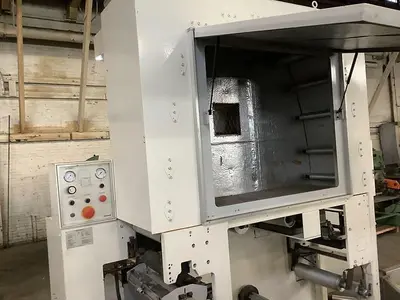

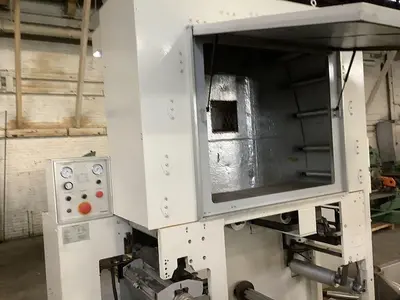

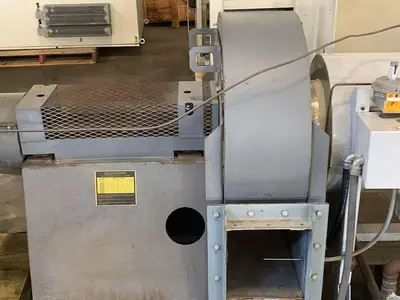

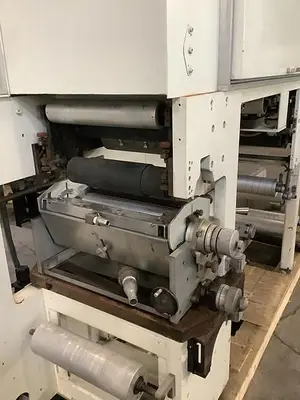

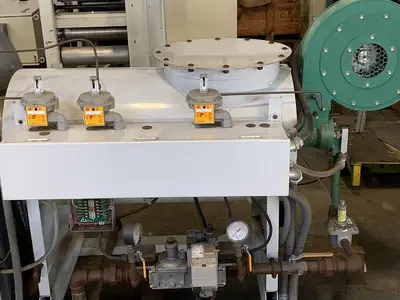

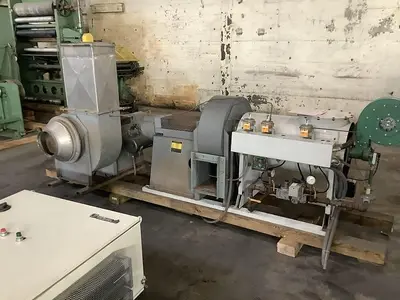

15” Chesnut, serial # 286, 1-color Model 150 laminator / printer, 2-roll rotogravure coating station or register print station with dry-bond laminating station. Video available shows unit when it was inline with Nilpeter press. Age 2003. Has been in line with Nilpeter label press laminating film-to-film or coating or printing in register. Web width 15” (380mm). Speeds up to 600 FPM. Material range: paper & paper board up to .015”, films, foils. 2-roll gravure coating or register print station with 13 ft. gas dryer laminating station and secondary single position unwind. Secondary single position unwind set up for 3” cores. 30” diameter rolls. Unwind has Coast pneumatic automatic edge guiding system. Edge guide the secondary unwind. Air brake & automatic tension control system on secondary unwind. 480 voltage, 60 cycle, 3 phase. Explosion-proof. Gas burner & blower. 13 ft. long dryer, explosion proof. Solvent & water-based coatings / inks. Idlers in machine are 16” wide. Enclosed doctor blade assembly. 10” to 20” repeat range. Machine is in like-new condition. Previous owner purchased for a customer, ran trials and never got the order. Gas burner & blower are included. Gas burner & blower were located on the roof outside. Can reverse print / coat by varying the web path. Electrics & drives included. Can purchase 20"-28" wide single position unwind & center rewind for $12,000 more; GBI has unwind & rewind. Would have a modern dry-bond laminator. In 2005, new AC servo drive & control system added; cost $85,000. Ratiomatic burner, 50 rm. 500,000 BTU burner. Has supply, exhaust, combustion motors. Burner is Chesnut Engineering Model 150, Serial # 2.86-5. Has Cincinnati fan blower, RBE-11, Serial # 303281 and Cincinnati fan Model HDBI-150, Serial # 303280
