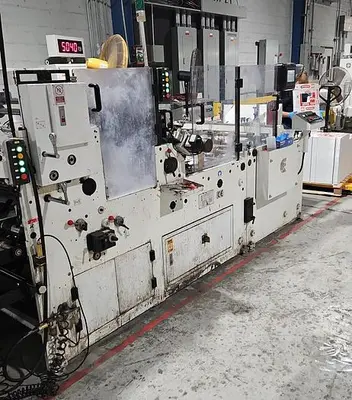

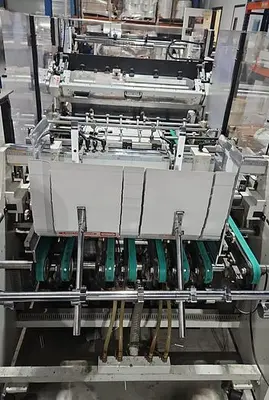

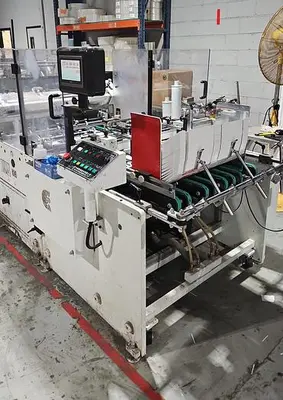

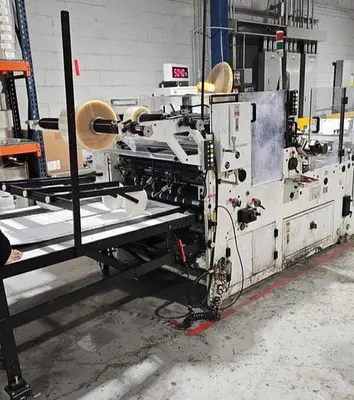

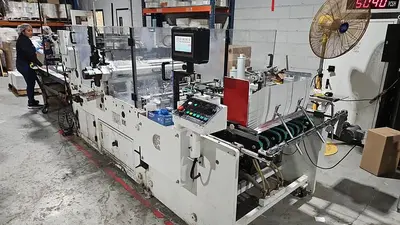

USED 2018 WINPAK WPA 1000DSV

2018 WPA-1000DSV Window Patcher
Servo Motor Driven Feeder Timing Belt System
Servo Motor Driven Rotary Knife Film Cutting System
Timed Delivery Conveyor Belt for Batch Counting
Vacuum Suction Belts in Delivery Section
Easy adjustment for running 1up or 2up position
Special treatment of the film cylinder to minimize film scratching
30mm Main machine side frames for increased machine stability
Standard suction belt to hold the blank in synchronized position while applying glue
Photo sensor detector automatically controls the glue roller to lift off when blank is not fed
The glue station slides out for easy cleaning and access to the rollers
The gluing rollers adjust forward and backwards, left and right for easy positioning and registration of substrate
Blank Length: 100mm ~ 710mm, Blank Width: 80mm ~ 480mm
Film Length: 38mm ~ 520mm, Film Width: 30mm ~ 400mm
Film Thickness: 0.03mm~0.20mm (Straight Preparation)
Feed Material: Cardboard, E-flute Corrugated Cardboard
Film Roll Specification: 400mm (16”) Roll, 3” Core
Max Working Speed: Length over 330mm: 300 sheets/min
Length less than 330mm: 600 sheets/min
CE Certified
