USED 2023 CATBRIDGE 324

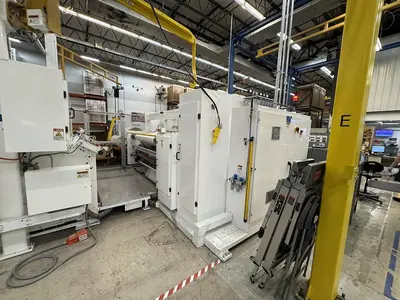

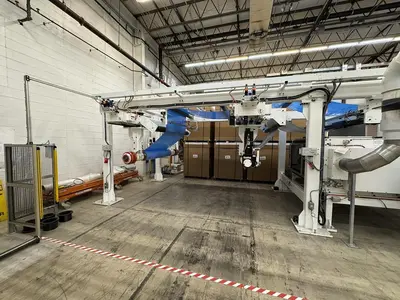

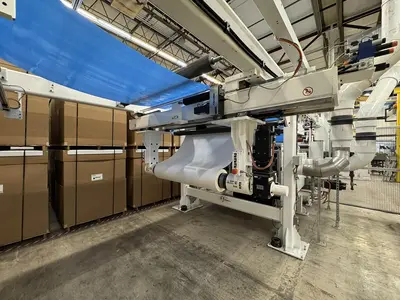

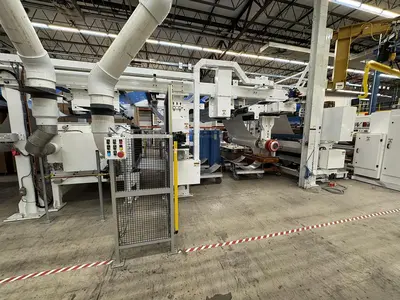

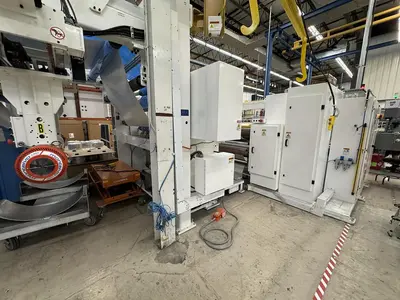

Catbridge 324 MC Turret Rewinder with Integrated Unwind and Laminator System
Manufacture Date: Apr 2023
Machine Hours: 24

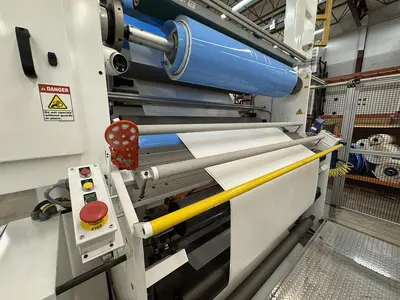

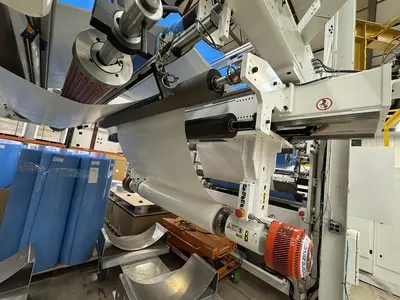

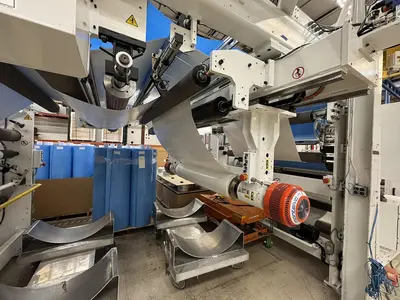

Includes 3 Unwinds, 2 Laminators, 1 Scrap Rewind and 1 Finished Product Rewind

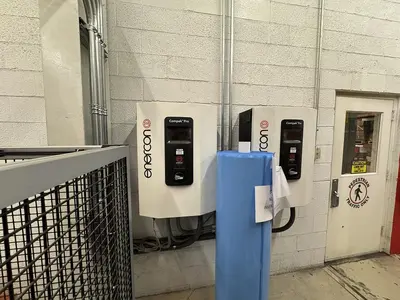

Unwind #2 is driven and includes Enercon Dual-Sided, Dual Emitter Corona Treater system (Adjustable treatment width (Max treat width = 66.5”)
Splice table for making final construction splices.

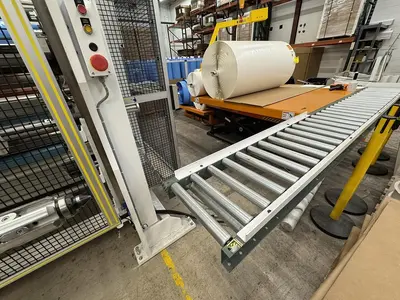

Pack-out cell includes Conveyor, roll-handling hoist and Upender

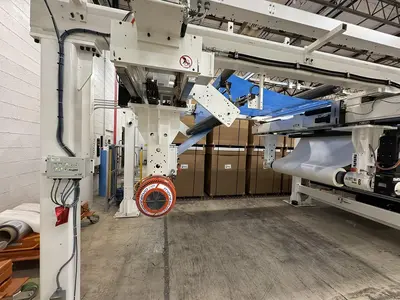

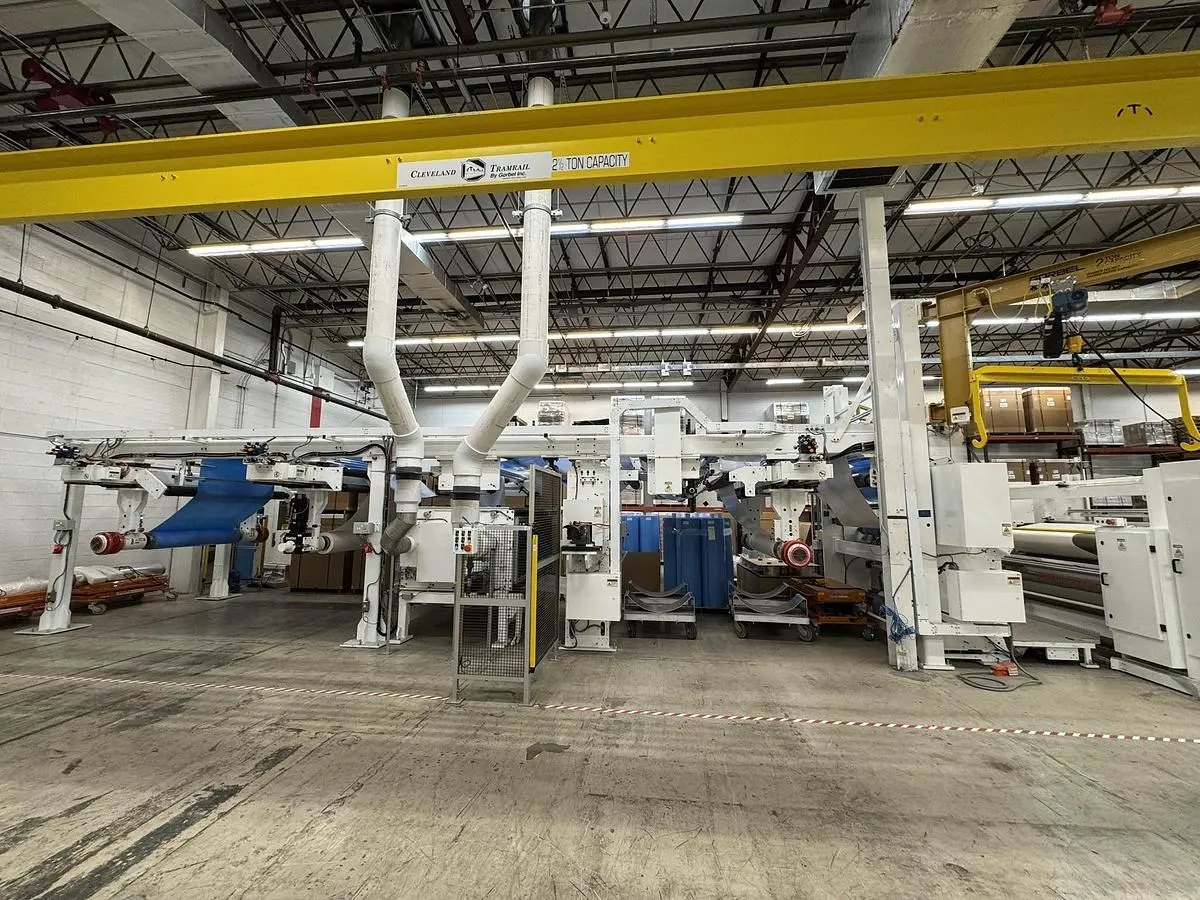

Includes 2-1/2 Ton Monorail Overhead Lift and Roll Cart System for transporting materials in and out of winders
Operating Speed: 15 – 300 FPM
Web Width: 22 – 72”
Unwind Specifications:
40” maximum roll diameter (2nd unwind is driven and capable of 50” maximum roll diameter)
5,000 lbs maximum roll weight
Shaftless design with 3” core chucks and 6” adaptors

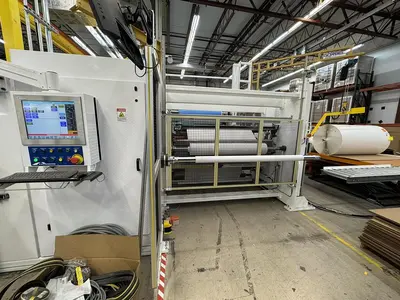

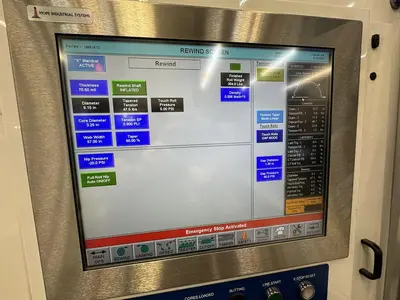

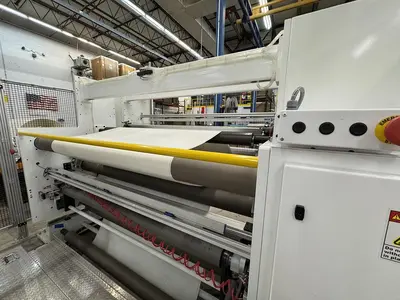

Rewind Specifications:
36” maximum roll diameter (24” max for continuous running)
350 lbs maximum roll weight

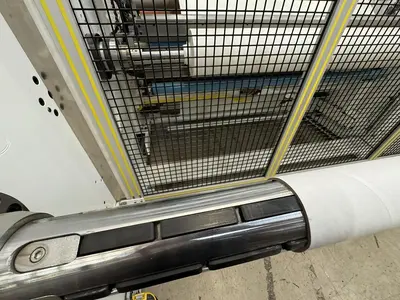

3” lock-core rewind shafts

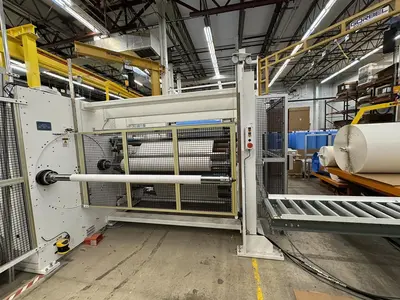

Turreted rewind built for continuous running of log rolls (Tabber system with cut/paste mechanism)
