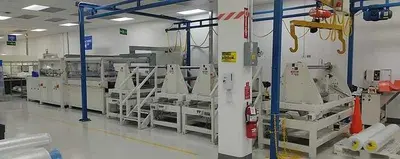

USED 2019 CONTECH 3662

Contech Converting Technologies, Inc. 3662 Web Press Paper Film Equipment.
This is an automatic die cutting press so you can cut shapes out of paperboard, non-wovens,vinyl's, laminates, poly films and others materials.

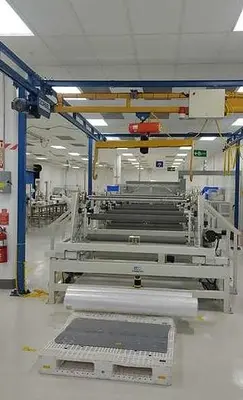

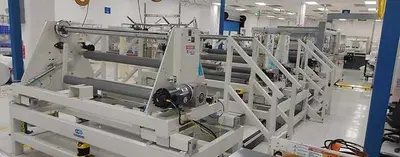

The Contech has a 4 roll unwind station so you can have 4 layers to cut through. Create a steal rule die any shape and the belt will feed the 4 layers of film under the cutting press and then cut.
Original manufactures specifications:1.0 UNWIND MODULE (4ea.)Max. roll dia. 25”Max. width 62”Max. weight 500 lbs.3” air shaftDual safety chuck drop in designAir brake tension with dancer feedback and roll diameter sensingDynamic braking to maintain minimum web tension constant throughout roll diameterWeb guide +/- 4” from center (8” total travel)Tiered unwinds to maintain separate web pathsIdler Roller array to maintain separate webs to hitch feed2.0 HITCH FEED MODULE & BELT SYSTEMServo increment belt/clamp hitch feedHitch feed to isolate web tension for near tensionless incrementPneumatic clamp bar for non-slip incrementMax. increment 62”Increment accuracy +/- .060” (machine motion)Exit conveyor area of 87” for max part removal3.0 PRESS SPECIFICATIONS HIGHLIGHTS2 plate /4 cylinder designHydraulic operation 100 ton62” X 62” max die cut area4 corner adjustable stop block system to control die cut depth and minimize belt wearHydraulic unit stand alone for ease of maintenanceOperator adjustable press stroke (to maximize cycle rate)Pneumatic die clamp system (design for common die boards)4.0 CONTROLSAllen Bradley Compact Logics formatColor HMI mounted on swivel arm for operator convenienceWarning and Errors displayedRecipe capable5.0 UTILITIES, PERFORMANCE & MISC.Electrical: 480 Volts, 60 Cycle, 3 Phase (other upon request)Air: 90 psi clean, dry airCycle rate: 9 cycles per min at 62” increment.
New Cost Estimate $800,000 to $1,000,000
Last used in clean room environment.
