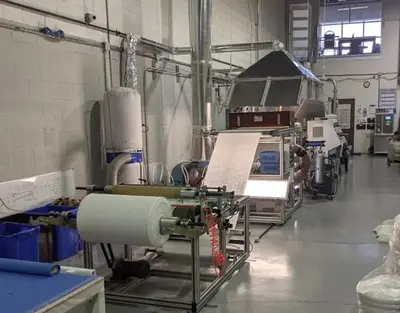

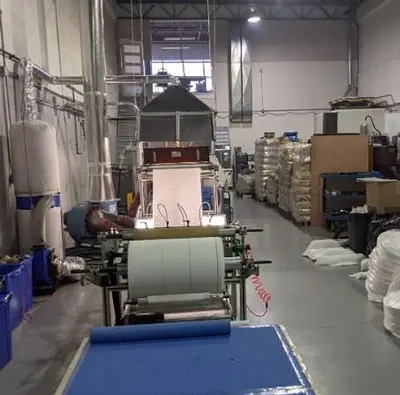

USED BFE PP MELTBLOWN FABRIC MAKING LINE

One (1) BFE99 24" (600mm) PP Meltblown Fabric Making Machine

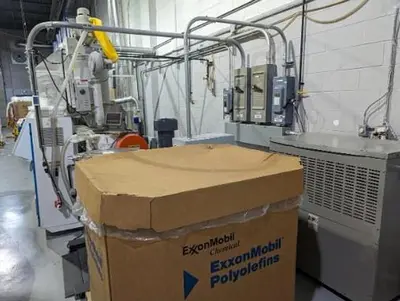

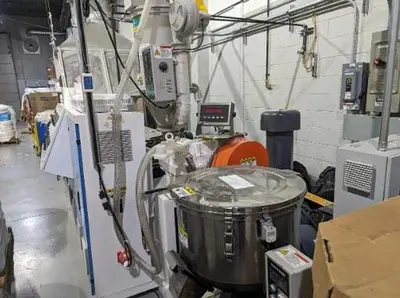

Automatic loader ZJ200 1 set
Hopper dryer STG-U160 1 set
65/33 Single screw extruder 22kw 1 set
600mm Hanger type SPINNERET and heating pipe 1 set
50kw Air heating box 1 set
Screen changer 1 set
Gear Pump 1 set
22kw Blower for mold 1 set
Forming machine 1 set
Electrostatic device 1 set
Slitting and Winding device 1 set
Color mixer 100kg 1 set
Ultrasonic Cleaner and heater case 2 sets
Spare parts 1 set
65/33 screw and barrel 1 set
Spare spinneret 1 set
Technical Description:
Automatic loader ZJ200
Max. wind pressure 9800 pa
Max. air volume 2 m³/min
Power of motor 1.1 kw
speed 2800 r/min
Transportation capacity 200 kg/h
Volume of aspirating hopper 5 L
Inter diameter of transfer soft tube 40 mm
Inter diameter of aspirating soft tube 40 mm
Method of loading Vacuum aspirating
Weight 75 kg
Dimension 400 x 450 x 700 mm

Hopper dryer STG-U160
Total volume 160L
Heating power 4.8 kw
Loading capacity 75kg
Blower power 0.12 kw
Material Stainless steel
Temperature adjusting Electron temperature adjuster
Weight 75 kg
Dimension 950 x 530 x 1200 mm

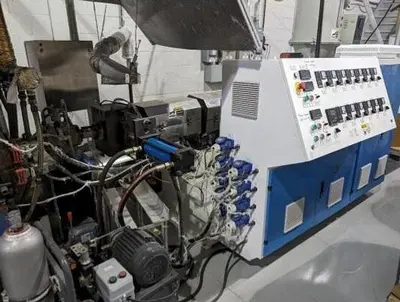

SJ 65/33 Single-screw extruder
Screw diameter 65 mm
L/D 33:1
Motor power 22 kw
Rotating speed of screw 1-100 r/min
Heating power 15 kw
Extrusion capacity 350-400kg per day
Center height 1000 mm
Weight 1300kg
Dimension 2500 x 1300 x 1500mm
Extruder speed adjusting way Frequency conversion
Barrel temperature adjusting way Heating: cast aluminum heater
Cooling: 4 sections by air
Material of screw and barrel 38CrMoAlA Azotizing on surface 0.4 ～ 0.7mm
Rigidity: above 700 HV
Drive way Hard tooth gearbox
Converter HOLIP
Temperature controller Fuji
Switch DELIXI
Contactor Schneider
Motor Dongya

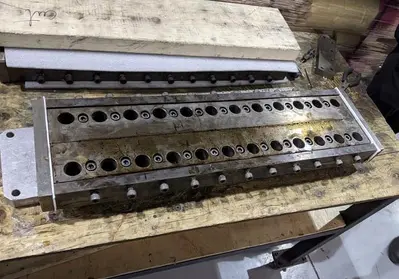

SPINNERET
Hanger type Spinneret and heating pipe
Specification 600mm
Material S431
Density 25-150 g/m2
Holes diameter Around 0.2-0.25mm
BFE 95%-99%
Including air heating system
Spare SPINNERET front plate

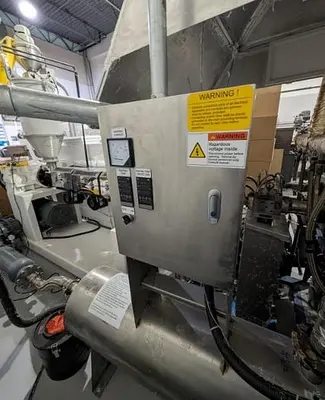

50kw Air heating box
Heating power 50kw

Screen changer
Structure plate type ， double working place non-stop auto-changer,
horizontal
Screen changing drive Hydraulic system, manual control
Pressure sensor

Gear Pump
Gear Pump 30cc
Extruder speed adjusting way Frequency conversion

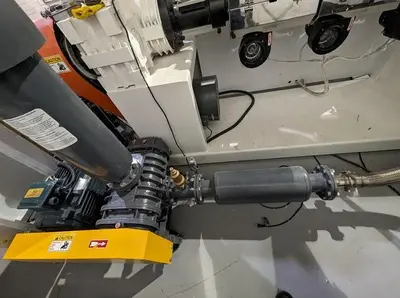

Blower for mold
Air volume 7.8m3/min
Motor 22kw

Forming Machine
Width of roller 800mm
Motor 0.75kw
Frame Material Stainless steel

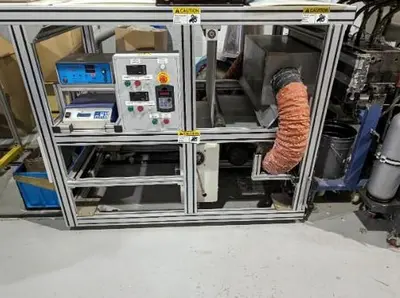

Electrostatic device
Bacterial filtration rate ≥95%
Generator power 120k V single side

Slitting and winding device
Width of roller 800mm
Motor 0.75kw
Material Stainless steel
blades type Disk type
Diameter and quantity 300mm with 4 pcs

Color mixer
Mixed amount 100kg
Material barrel volume 280L
Motor power 3kw
Weight 350kg
Dimension 1050×820×1350mm
Main shaft rotate speed 85rpm
Timer 5-15min

Ultrasonic Cleaner Bath and Electric Oven

Take up conveyor with electrostatic generators.

Melt Flow modifier additive

Percentage of MFR modificator additive letdown with a 35 Melt Index Total 3825 PP resin.

220V ,60HZ,3 Phase
