USED 2000 SUTHERLAND FTP-110 / MARK2 -121

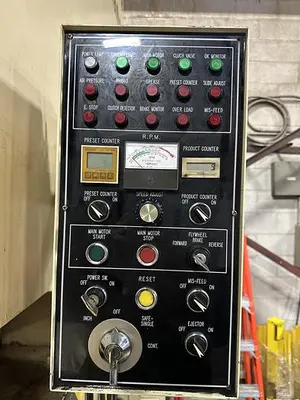

PENDANT CONTROL :
VARIABLE SPEED ADJUST DIAL
SLIDE ADJUST - SWITCH/BUTTON
FORWARD/FLYWHEEL BRAKE/ REVERSE SWITCH
INCH/OFF/SAFE-SINGLE/CONT. SWITCH
PRESET & PRODUCT DIGITAL DISPLAY COUNTERS
AUTOMATIC LUBRICATION

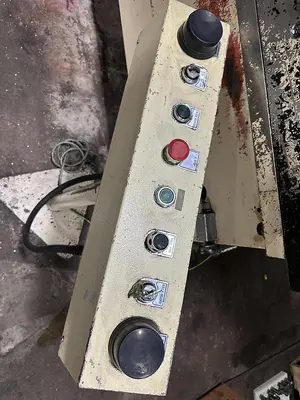

PEDESTAL PALM BUTTON CONTROL
BALANCER PRESSURE ADJUSTMENT DIALS FOR CLUTCH VALVES & CYLINDER VALVES

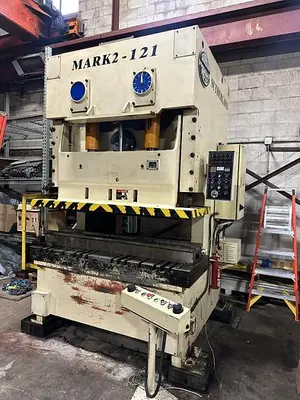

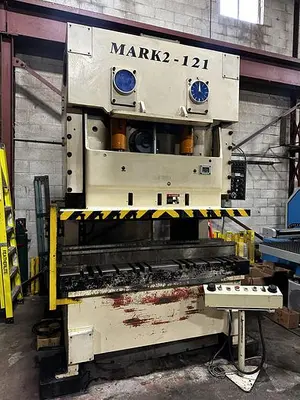

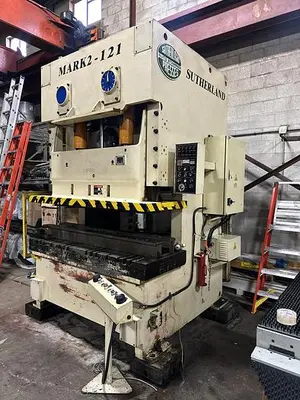

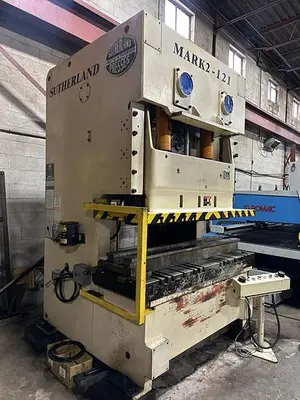

The SUTHERLAND 121 Ton OBS Gap Frame Press, model FTP-110 / MARK2-121 from the year 2000, is a robust and reliable piece of equipment built for high-performance industrial operations. With a capacity of 121 tons, this press offers a spacious slide and bolster area of 74" x 27.5", which is well-suited for handling large components. The machine features a stroke length of 3 inches and operates at 45-90 strokes per minute, providing flexibility and efficiency in various pressing tasks.

Equipped with modern controls, the press includes a pendant control with a variable speed adjust dial, slide adjust button, and brake/reverse switch. It also features preset and product digital display counters, automatic lubrication, and a pedestal palm button control. These features ensure user-friendly operation and precise control during operations. The press is powered by a 15 HP motor running on 575V/3/60 electrics, ensuring robust and reliable operation.

This equipment is designed with a bolster thickness of 5.9 inches, a die space of 14.96 inches, and an overall height of 122 inches. It requires a floor space of 88" x 71.6" and sits with a floor to bolster height of 35.4 inches. The total weight of the machine is 31,000 lbs, reflecting its sturdy construction and durability, making it an essential equipment for heavy-duty pressing applications.
