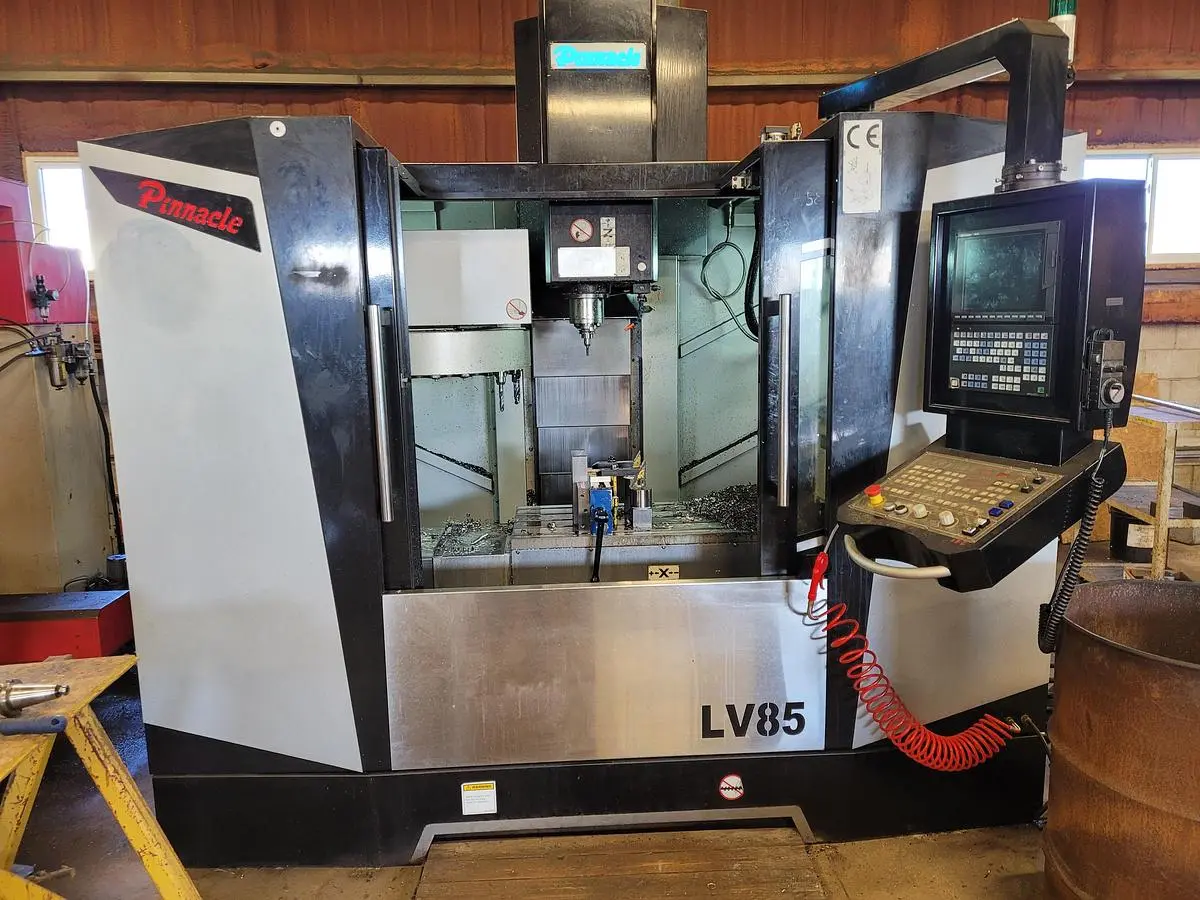

USED 2015 PINNACLE LV85
Overview
Specs
MACHINE INSTALLED: 2017
TABLE AREA: 39" X 20"
X-AXIS TRAVEL: 33"
Y-AXIS TRAVEL: 22"
Z-AXIS TRAVEL: 22"
MAX. TABLE LOAD: 1,322 LBS.
SPINDLE NOSE TO TABLE SURFACE: 3.9" TO 25.9"
NO. OF STATIONS ON ATC: 20
SPINDLE TAPER: ISO 40
MAX. SPINDLE SPEED: 8,000 RPM
RAPID FEED RATE - X /Y /Z: 1,417"/MIN. X/Y - 944"/MIN. Z
FEED RATE: 393"/MIN.
VOLTAGE: 600V/3/60
MAIN MOTOR: 21 HP
Equipped With
MITSUBISHI M70V CNC CONTROL

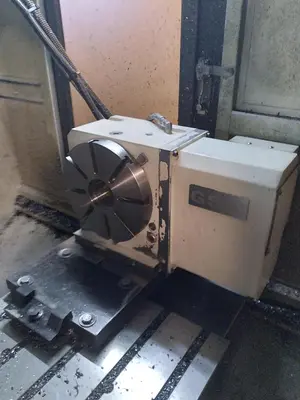

10" - 4TH AXIS ROTARY TABLE W/TAILSTOCK
CHIP AUGER
COOLANT SKIMMER
COOLANT TANK & PUMP
