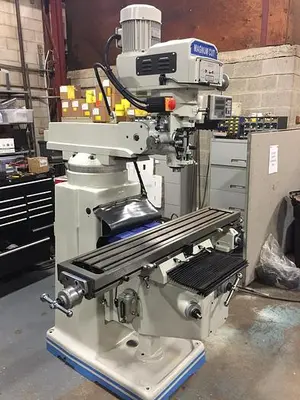

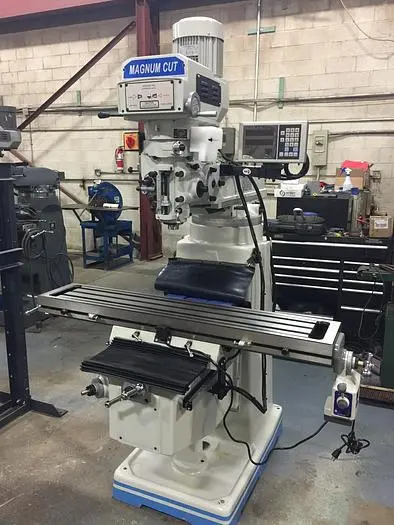

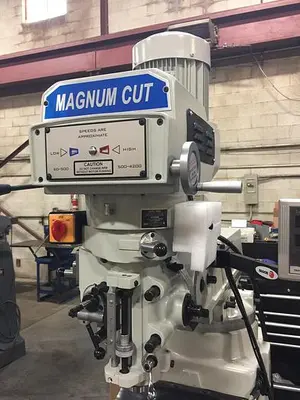

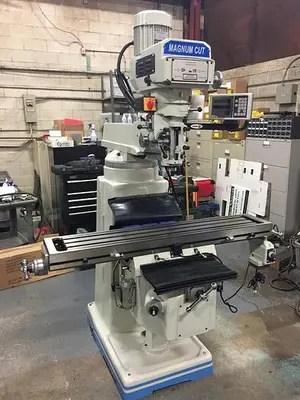

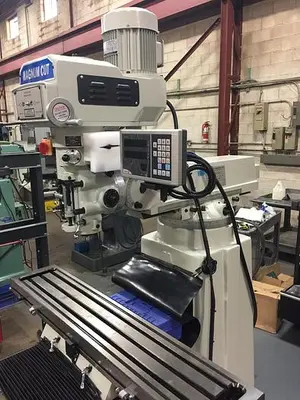

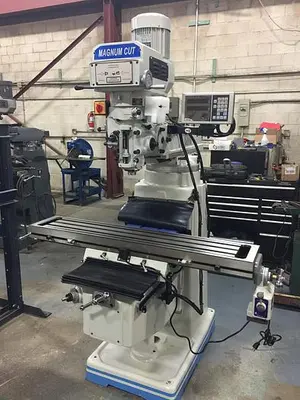

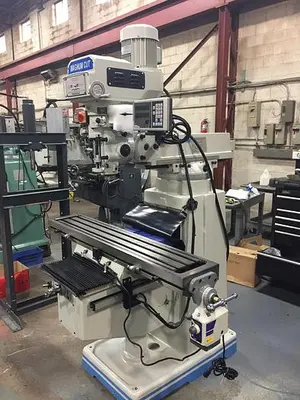

NEW MAGNUM-CUT 3VS

TABLE SIZE: 10" X 54"
LONGITUDINAL TRAVEL: 37"
CROSS TRAVEL (SQUARE CROSSWAYS): 17"
VERTICAL TRAVEL OF KNEE: 16.5"
SPINDLE TAPER: R8
SPINDLE SPEEDS (VARIABLE): 60 - 4000 RPM
QUILL TRAVEL: 5"
SPINDLE MOTOR: 3 HP
ELECTRICS: 575V/3/60
NET WEIGHT: 2,650 LBS.

STANDARD EQUIPMENT:
======================
HARDENED & GROUND TABLE SURFACE
HARDENED & GROUND SQUARE CROSS WAYS
MEEHANITE CASTINGS
ONE SHOT LUBRICATION SYSTEM
PENDANT CONTROL
ELECTRICAL PANEL
MACHINE LAMP
COOLANT SYSTEM W/ CHIP TRAY
INSTRUCTION MANUAL & SPARE PARTS LIST, TOOL BOX
ELECTRICS, 575V/3/60 WITH REVERSING SWITCH & MAGNETIC STARTER (CSA)
OPTIONAL EQUIPMENT:
=====================
208-220 Volt, 3 phase ( in lieu of standard 575 Volt ) - $ 750.00

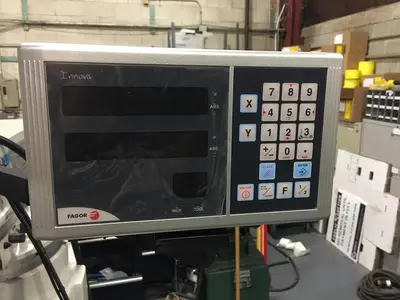

FAGOR 2-AXIS DIGITAL READOUT SYSTEM INSTALLED - $ 3,450.00
FAGOR 3-AXIS DIGITAL READOUT SYSTEM INSTALLED - $ 4,750.00
ALIGN POWERFEED FOR LONGITUDINAL TRAVEL , DECREASES TRAVEL 2" - $ 920.00
ALIGN POWERFFED FOR CROSS TRAVEL - $ 1,050.00
ALIGN KNEE LIFT SERVO FOR VERTICAL - $ 1,050.00
ALIGN AIR OPERATED POWER DRAWBAR - $ 1,250.00
MACHINE VISE 6" WITH SWIVEL BASE, ANGLE-LOC TYPE - $ 425.00
R-8 COLLET SET - $ 290.00
CLAMPING KIT 58 PC - $ 190.00
Skidding if required with shipment by common carrier - $ 475.00
WARRANTY:
==========
PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship.
LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of Our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers' responsibility.
