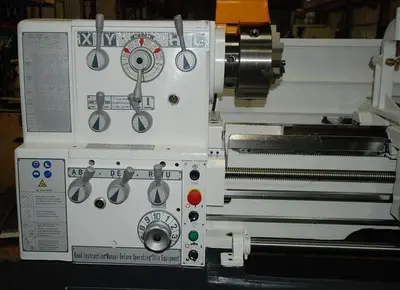

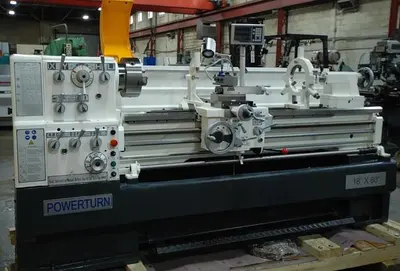

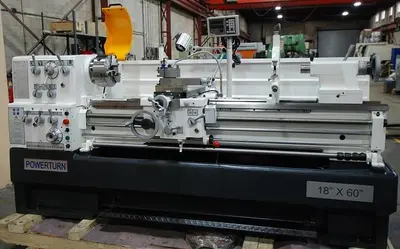

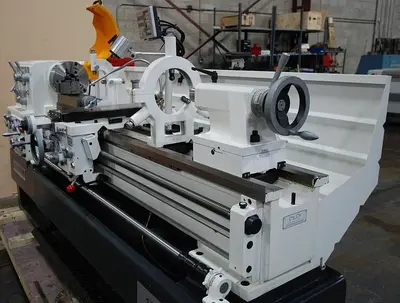

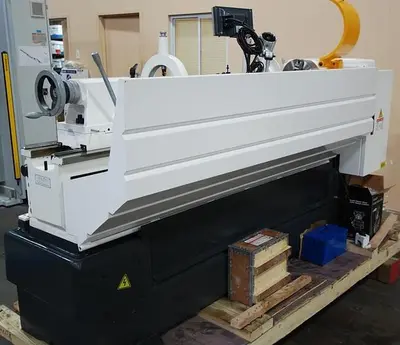

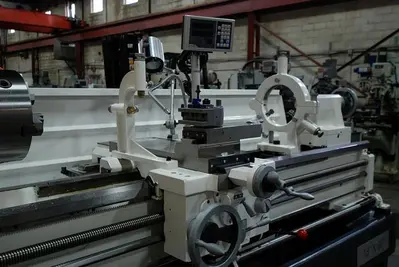

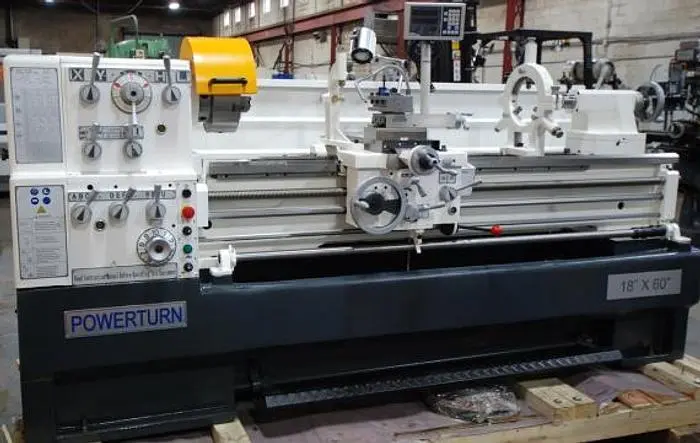

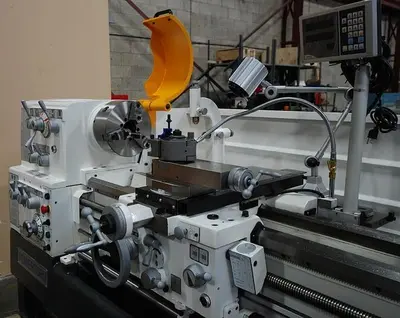

18" X 60" "NEW" POWERTURN PRECISION LATHE, WITH 3.14" SPINDLE BORE
Overview
Specs
SWING OVER BEDWAYS: 18"
SWING OVER CROSS SLIDE: 10.4"
SWING IN GAP: 27"
WIDTH OF BED: 11.85"
CENTER DISTANCE: 60"
SPINDLE NOSE CAMLOCK: D1-8
SPINDLE BORE: 3.14"
SPINDLE SPEEDS (12): 25 - 1700 RPM
SPINDLE TRAVEL OF TAILSTOCK: 4.75"
TAPER OF TAILSTOCK: MT 4
MAIN MOTOR: 7.5 HP
APPROX. WEIGHT: 5,500 LBS.
Equipped With
STANDARD ACCESSORIES:
ONE PIECE CASE BASE
HARDENEND & GROUND BEDWAYS
COOLANT SYSTEM
REAR SPLASH GUARD
FOOT PEDAL BRAKE
THREAD CUTTING DIAL
STEADY REST ( 7-1/2" CAP. )
FOLLOW REST
HALOGEN WORKLIGHT
FACEPLATE
10" 3-JAW CHUCK
12" 4-JAW CHUCK
QUICK CHANGE TOOLPOST C/W 4 HOLDERS
INSTRUCTION MANUAL & TOOLS
ELECTRICS 575V/3/60 CSA
OPTIONAL ACCESSORIES:
TAPER TURNING ATTACHMENT..........$ 1,520.00
FAGOR NV20 2-AXIS DIGITAL
READOUT SYSTEM................................$ 5,750.00
CHUCK SAFETY GUARD .......................$ 520.00
LIVE CENTER #4MT.................................$ 220.00
WARRANTY:
PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship.
LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers' responsibility.
