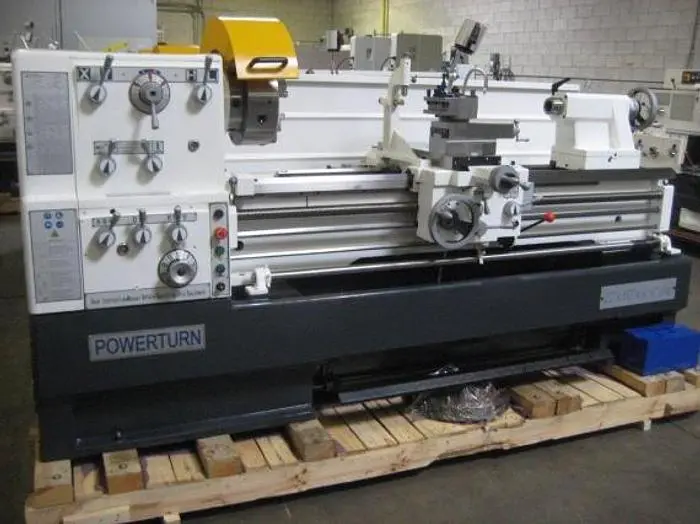

22" X 88", "NEW" POWERTURN ENGINE LATHE, W/ 4-1/8 SPINDLE BORE
Overview
Specifications
SWING OVER BEDWAYS: 22"
SWING OVER CROSS SLIDE: 13-3/4"
SWING IN GAP: 31"
CENTRE DISTANCE: 88"
SPINDLE BORE: 4-1/8"
SPINDLE NOSE - CAMLOCK: D1 - 8"
SPINDLE SPEEDS (12): 26 - 1500 RPM
SPINDLE TRAVEL OF TAILSTOCK: 6-1/4"
TAILSTOCK TAPER: 5 MT
SPINDLE MOTOR: 10 HP
APPROX. WEIGHT: 6,800 LBS
Equipped With
One Piece Cast Base
Hardened & Ground Bed-ways
Foot Pedal Brake
Coolant System
Splash Guard
Threading Cutting Dial
Quick Change Tool-Post 40 pos. c/w 4 Holders
Rapid traverse on carriage
3 - Jaw Chuck 12-1/2" Dia.
4 - Jaw Chuck 16" Dia.
Steady Rest with Rollers
Follow Rest
Instruction Manual & Tools
Electrics 575/3/60 CSA
EXTRA FOR:
Telescopic Safety Cover for screw $ 1,500.00
Large Steady Rest (300 mm capacity) with Rollers $ 1,675.00
Faceplate - 16" Diameter $ 445.00
Taper Turning Attachment $ 1,730.00
Chuck Safety Guard $ 520.00
Fagor Digital Readout System (88" Centres) $ 6,650.00
Live Center #5MT $ 425.00
WARRANTY:
PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship.
LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers' responsibility.
Payment Terms: 50% with order, Balance due in 30 days
