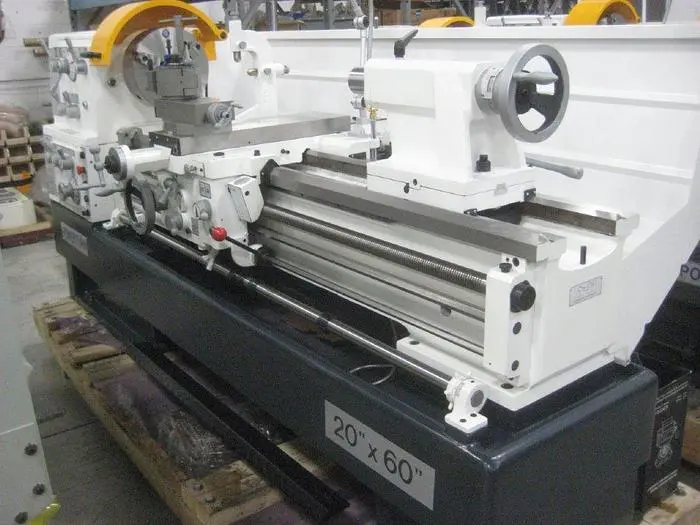

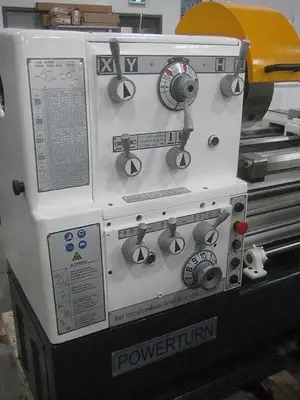

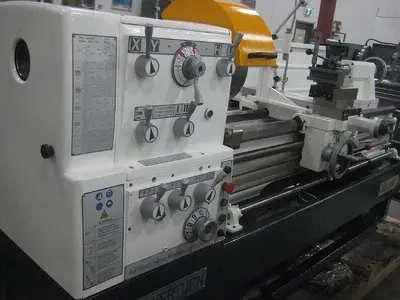

20" X 60", POWERTURN, "NEW" PRECISION LATHE

SWING OVER BEDWAYS: 20"
MAX. SWING OVER CROSS SLIDE: 12"
SWING IN GAP: 28-1/2"
CENTER DISTANCE: 60"
SPINDLE BORE: 3-1/8"
SPINDLE NOSE - CAMLOCK: D1-8
SPINDLE SPEEDS: 25 - 1600 RPM
SPINDLE TRAVEL OF TAILSTOCK: 6-1/4"
TAILSTOCK TAPER: 5 MT
MAIN SPINDLE MOTOR: 10 HP
APPROX. WEIGHT OF MACHINE: 5,200 LBS.

STANDARD EQUIPMENT:

One Piece Cast Base
Hardened & Ground Bedways
Foot Pedal Brake
Coolant System
Splash Guard
Threading Cutting Dial

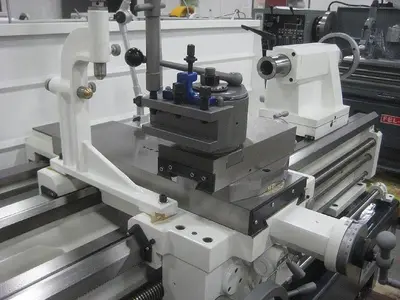

Quick Change Toolpost 40 pos. c/w 4 Holders
3 – Jaw Chuck 12” Dia.
4 – Jaw Chuck
Steady Rest
Follow Rest
Instruction Manual & Tools
Electrics 575/3/60 CSA

EXTRA FOR:
16" Faceplate---------------------------------------------- $ 445.00
Large Steady Rest (300 mm) Roller Type----------- $ 1,675.00
Taper Turning Attachment------------------------------ $ 1,730.00
Chuck guard------------------------------------------------ $ 520.00
Fagor Digital Readout System ---- (60” Centers)---$ 5,750.00
Live Centre #5MT------------------------------------------ $ 425.00

WARRANTY:
PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship.
LABOUR - One Year “ON SITE” labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers’ responsibility.
