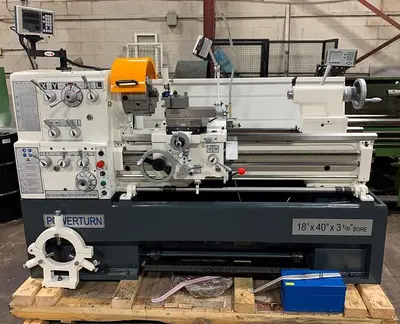

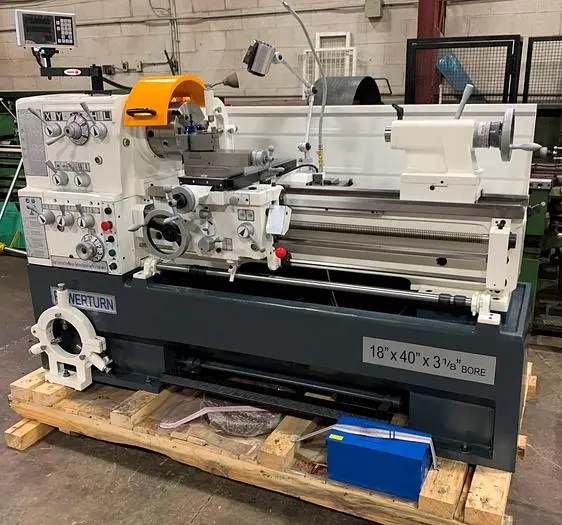

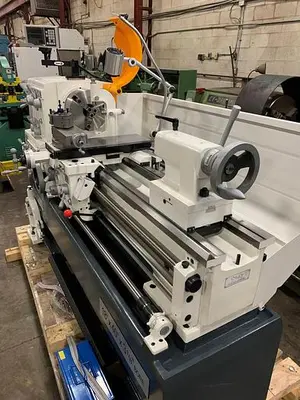

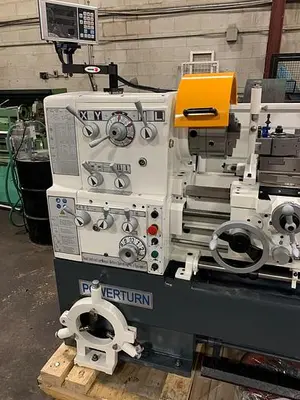

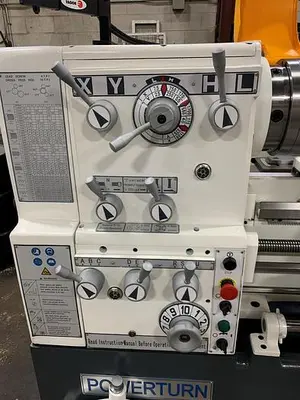

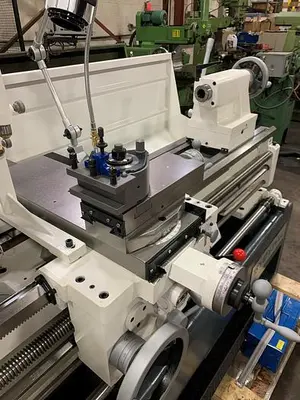

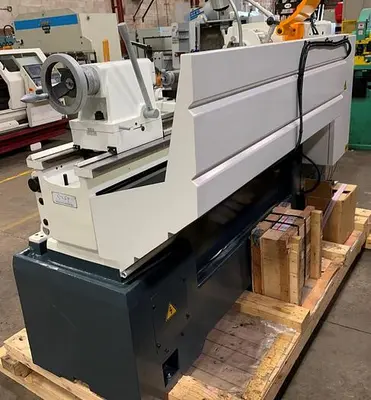

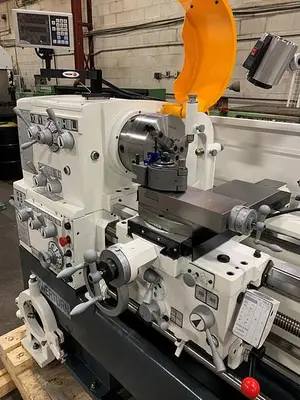

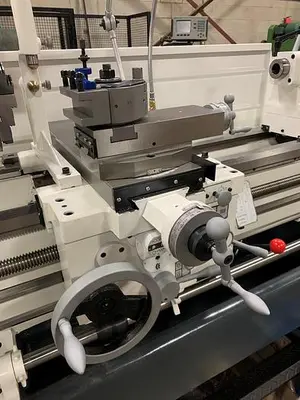

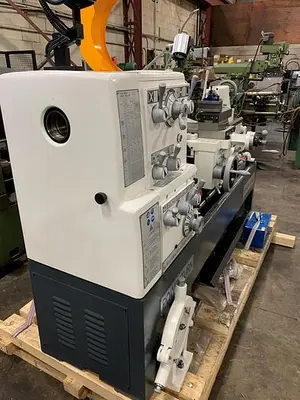

18" X 40" "NEW" POWERTURN LATHE, PRECISION LATHE WITH 3.14" SPINDLE BORE
Overview
Specs
SWING OVER BEDWAYS: 18"
SWING OVER CROSS SLIDE: 10.4"
SWING IN GAP: 27"
WIDTH OF BED: 11.85"
CENTER DISTANCE: 40"
SPINDLE NOSE - CAMLOCK: D1-8
SPINDLE BORE: 3.14"
SPINDLE SPEEDS (12): 25 - 1700 RPM
SPINDLE TRAVEL OF TAILSTOCK: 4.75"
TAPER OF TAILSTOCK: MT 4
MAIN MOTOR: 7.5 HP
WEIGHT (40" CENTRES): 4,400 LBS
APPROX. OVERALL DIMENSIONS: 7'L x 34"D x 50"H
Equipped With
-ONE PIECE CASE BASE
-HARDENED & GROUND BEDWAYS
-COOLANT SYSTEM
-REAR SPLASH GUARD
-FOOT PEDAL BRAKE
-THREAD CUTTING DIAL
-STEADY REST (7-1/2" CAP.)
-FOLLOW REST
-HALOGEN WORK LIGHT
-FACE PLATE
-3-JAW CHUCK 10"
-4-JAW CHUCK 12"
-QUICK CHANGE TOOLPOST C/W 4 HOLDERS
-INSTRUCTION MANUAL & TOOLS
-ELECTRICS 575/360
OPTIONAL ACCESSORIES
======================
TAPER TURNING ATTACHMENT $ 1,520.00

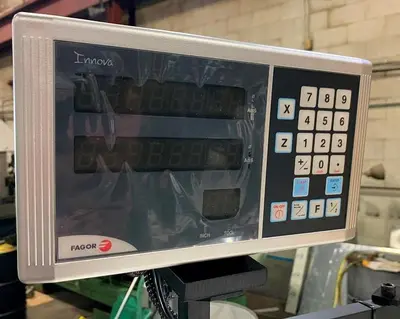

FAGOR NV20 2-AXIS DIGITAL READOUT SYSTEM...(40" CENTERS) $ 4,950.00
CHUCK SAFETY GUARD $ 520.00
LIVE CENTER #4MT $ 220.00
WARRANTY:
PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship.
LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers' responsibility.
