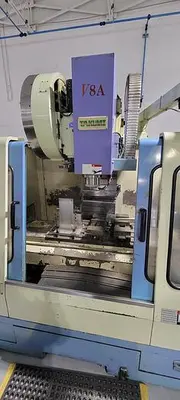

USED 1996 TAKUMI V8A

TABLE AREA: 39" X 20"
X-AXIS TRAVEL: 31"
Y-AXIS TRAVEL: 20"
Z-AXIS TRAVEL: 18"
SPINDLE NOSE TO TABLE SURFACE: 5.9" - 24"
SPINDLE TAPER: ISO 40
SPINDLE SPEED: 8,000 RPM ( MAX. )
CUTTING FEED RATE: 275"/MIN.
RAPID TRAVERSE RATES - X, Y AXES: 590" / MIN.
RAPID TRAVERSE RATE - Z AXIS: 472" / MIN.
ATC CAPACITY: 24
MAX. TOOL WEIGHT: 15.43 LBS.
MAX. TOOL DIAMETER: 3.14"
MAX. TOOL LENGTH: 9.8"

MITSUBISHI MELDAS 500 CNC CONTROL
HAND REMOTE
SIDEMOUNT ATC
CHILLER
COOLANT TANK & PUMP
