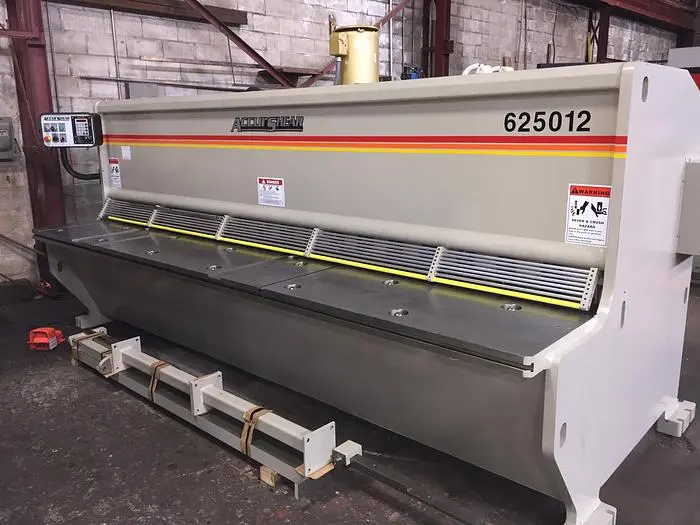

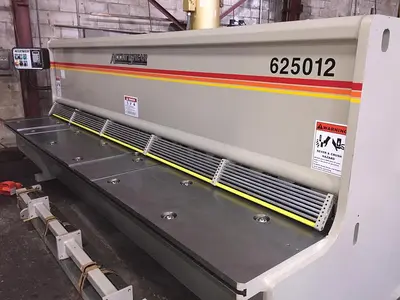

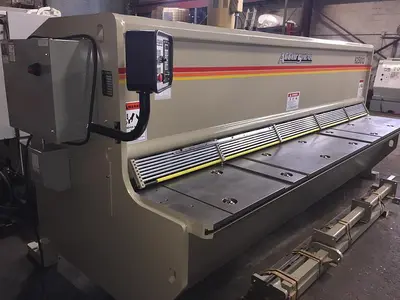

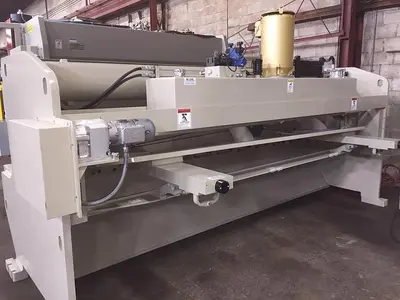

NEW ACCURSHEAR 625012
Specs
CUTTING CAPACITY: 1/4"
LENGTH: 12'
KNIFE SIZE INCHES: 1" X 3" X 148"
NO. OF HOLD DOWNS: 19
HOLD DOWN TONNAGE: 19
CYCLES PER MINUTE - FULL STROKE: 20
CYCLES PER MINUTE - SHORT STROKE: 46
MOTOR HP: 20 HP
ELECTRICS: 575V/3/60
OVERALL DIMENSIONS: 171"L X 110"D X 83"H
APPROX. WEIGHT: 21,000 LBS
Equipped With

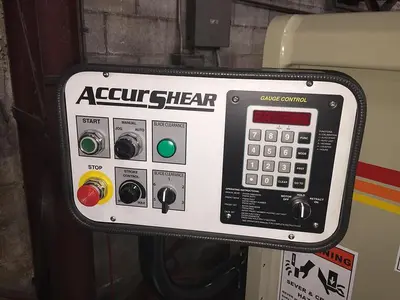

PENDANT CONTROL C/W ON/OFF BUTTONS, MODE SELECTOR SWITCH & STROKE CONTROL DIAL
BACKGAUGE CONTROL INCLUDES LED DISPLAY, INCH OR METRIC CONVERSION, GO-TO-POSITION FUNCTION, 999 PRE-SELECT PROGRAMS, HOUR METER & STROKE COUNTER
36" BACKGAUGE TRAVEL WITH AUTOMATIC SWING UP BACKSTOP AT FULL EXTENSION
MOTORIZED QUICK BLADE CLEARANCE ADJUSTMENT
MECHANICAL POINT OF OPERATION GUARDING APPLICABLE TO OSHA AND ANSI REGULATIONS
10' SQUARING ARM.
2 FRONT SUPPORT ARMS
T-SLOT IN TABLE W/ INCH/METRIC SCALES
BALL TRANSFERS IN TABLE
4-EDGED BLADES, TOP & BOTTOM, MODIFIED HIGH CARBON, HIGH CHROME
3 POSITION FOOT SWITCH CONTROL
SHADOW LIGHT & LINE
HAND SLOTS IN TABLE
OIL COOLER
