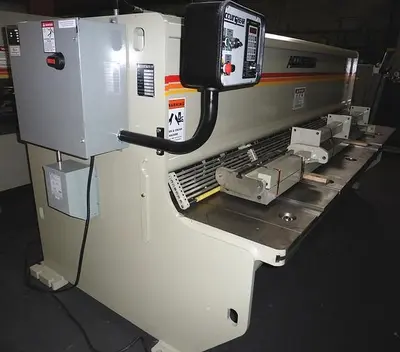

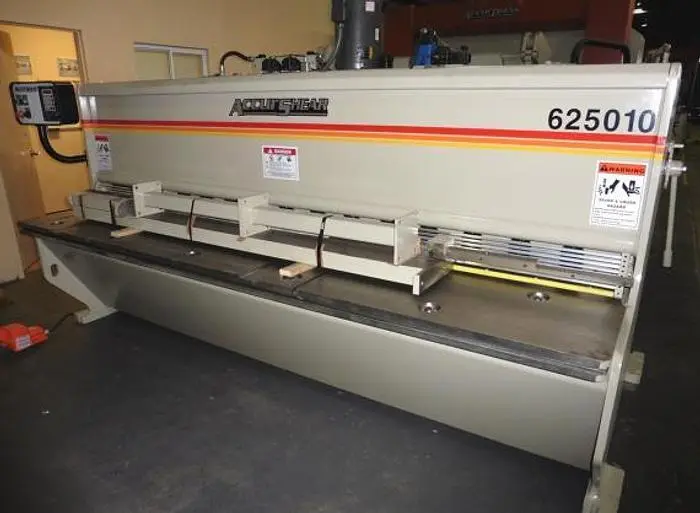

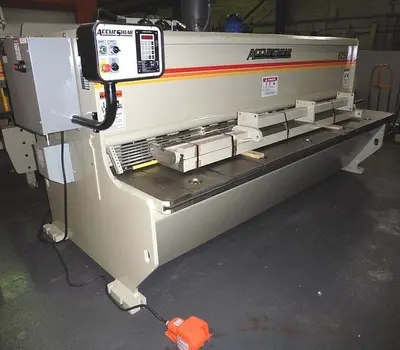

NEW ACCURSHEAR 625010

CUTTING CAPACITY: 1/4"
LENGTH: 10'
KNIFE SIZE INCHES: 1" X 3" X 124"
NO. OF HOLD DOWNS: 16
HOLD DOWN TONNAGE: 16
CYCLES PER MINUTE - FULL STROKE: 23
CYCLES PER MINUTE - SHORT STROKE: 48
MOTOR HP: 20 HP
ELECTRICS: 575V/3/60
OVERALL DIMENSIONS: 147"L X 85"D X 83"H
APPROX. WEIGHT: 17,000 LBS

OPTIONAL ACCESSORIES:

BALL TRANSFERS MOUNTED IN THE TABLE
10' SQUARING ARM.
2 FRONT SUPPORT ARMS W/RECESSED INCH/METRIC, T-SLOT WITH FINGER
T-SLOT IN TABLE W/ INCH/METRIC SCALES
STANDARD FEATURES:
SHEAR CAPACITY UP TO 80,000 TENSIL & 44,000 YIELD STRENGTH

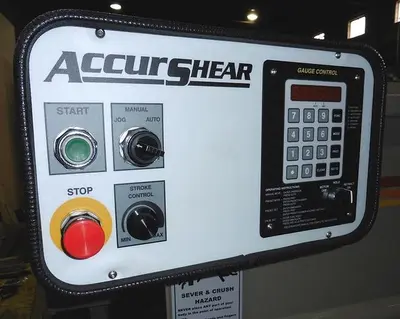

PENDANT CONTROL C/W ON/OFF BUTTONS, MODE SELECTOR SWITCH & STROKE CONTROL DIAL
BACKGAUGE CONTROL INCLUDES LED DISPLAY, INCH OR METRIC CONVERSION, GO-TO-POSITION FUNCTION, 99 PRE-SELECT PROGRAMS, HOUR METER & STROKE COUNTER
36" BACKGAUGE TRAVEL WITH AUTOMATIC SWING UP BACKSTOP AT FULL EXTENSION
4-EDGED BLADES, TOP & BOTTOM, MODIFIED HIGH CARBON, HIGH CHROME
3 POSITION FOOT SWITCH CONTROL
MANUAL QUICK BLADE CLEARANCE ADJUSTMENT
SHADOW LIGHT & LINE
OIL COOLER
HEAVY DUTY BACKGAUGE DESIGN:
STRENGTH, RIGIDITY AND ACCURACY COMBINE TO PRODUCE A SOLID BACKGAUGE WITH A 36" TRAVEL, HIGH ACCURACIES ARE ACHIEVED VIA PRECISION ACME LEAD SCREWS, RUNNING ON ROLLER BEARINGS, PRODUCING LONGEVITY & LOW FRICTION
AUTOMATIC SWING-UP BACKSTOP:
THE ACCURSHEAR ALSO FEATURES AN AUTOMATIC SWING-UP BACKSTOP. WHEN THE BACKSTOP IS RUN BACK TO THE FULL TRAVEL DISTANCE IT WILL MECHANICALLY LIFT UP, ENABLING THE SHEARING OF LONGER PIECES
