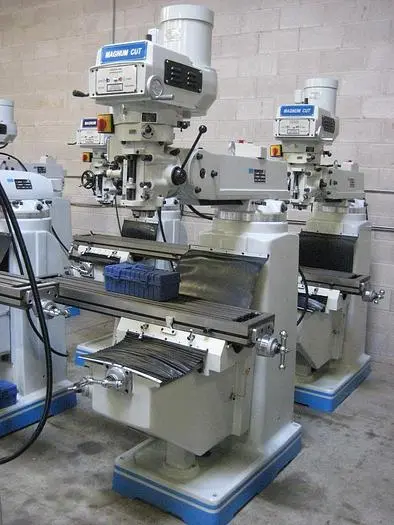

NEW MAGNUM-CUT 4VS

TABLE SIZE: 10" X 54"
LONGITUDINAL TRAVEL ( MANUAL ): 35.9"
CROSS TRAVEL: 17"
VERTICAL KNEE TRAVEL: 16.5"
SPINDLE MOTOR: 5 HP
SPINDLE TAPER: ISA 40
SPINDLE SPEEDS ( VARIABLE ): 60 - 3800 RPM
QUILL TRAVEL: 5"
QUILL FEEDS ( 3 ): .0015" - .006"
HEAD SWIVELS: 90 DEG.
TILTS FRONT / BACK: 45 DEG.
WEIGHT: 3,000 LBS.

STANDARD EQUIPMENT:

Hardened & Ground Table Surface
Hardened & Ground Cross & Vertical Ways
Meehanite Castings
One Shot Lubrication System
Machine Lamp
Coolant System & Splash Tray
Full Electrical Cabinet
Operator's Pendant Arm
Electrics Box with 575/3/60 Volt - CSA

OPTIONAL ACCESSORIES:

FAGOR 2-Axis Digital Readout System (Installed) - $ 3,450.00
FAGOR 3-Axis Digital Readout System (Installed) - $ 4,750.00
ALIGN Servo Longitudinal Powerfeed (Decreases Travel 2”) - $ 920.00
ALIGN Servo Cross Powerfeed - $ 1,050.00
ALIGN Servo Knee Lift - $ 1,050.00
ALIGN Air Operated Power Drawbar - $ 1,250.00
Machine Vise 6” with Swivel Base Angle-Loc Type - $  425.00
Collet Chuck ISA 40 c/w Set (15) Collets 1/8” – 1” - $  550.00
Clamping Kit 58 pc - $ 190.00
Skidding if required with shipment by common carrier - $ 475.00
