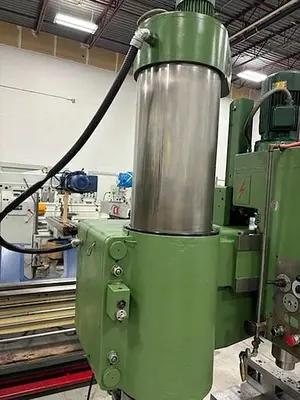

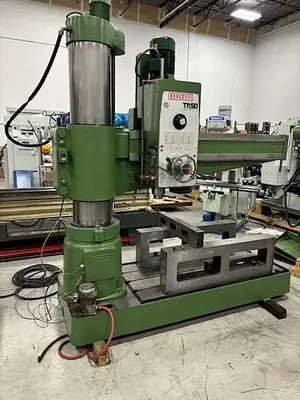

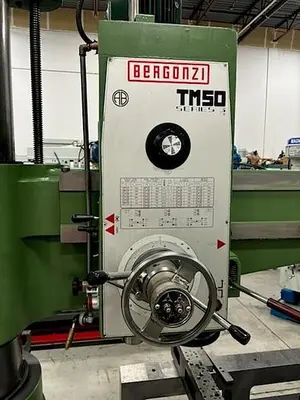

USED BERGONZI TM50/1600

DRILLING CAPACITY - CAST IRON: 2-9/16"
DRILLING CAPACITY - STEEL: 2"
DISTANCE SPINDLE TO COLUMN FACE: 63"
HEAD LONGITUDINAL TRAVEL ALONG ARM: 51"
COLUMN DIAMETER: 13-3/8"
SPINDLE SPEEDS ( 12 ): 30 - 1400 RPM
SPINDLE FEEDS: YES
SPINDLE TAPER: 5 MT
SPINDLE TRAVEL: 11-7/8"
SPINDLE MOTOR: 5 HP
NET WEIGHT: 6,900 LBS.

HYDRAULIC CLAMPING
POWER ELEVATION TO ARM
COOLANT SYSTEM
BOX TABLE
ELECTRICS 550V/3/60
