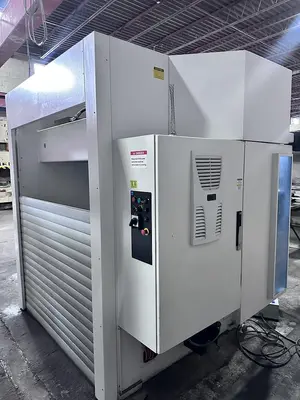

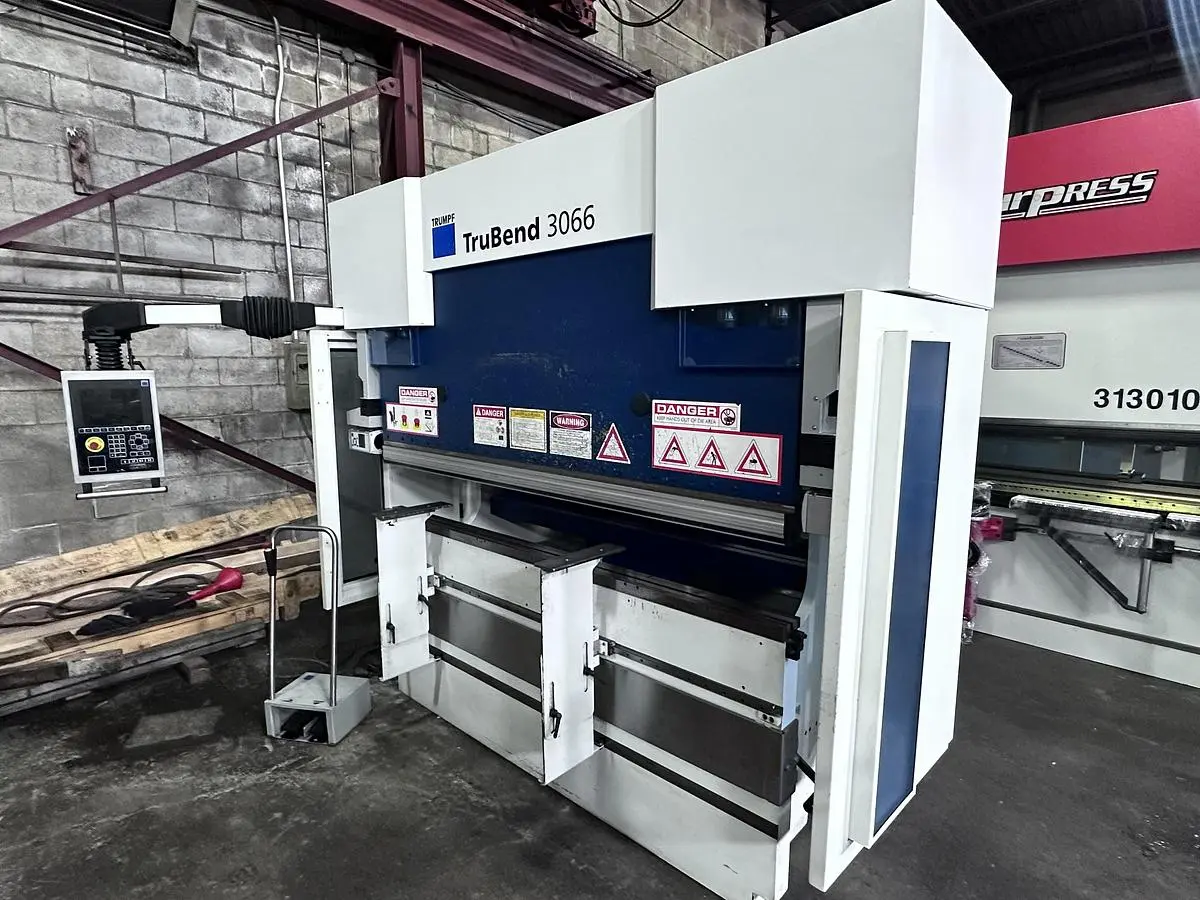

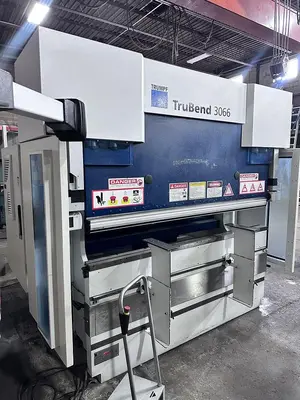

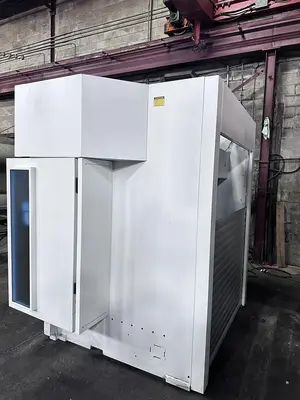

USED 2013 TRUMPF TRUBEND 3066

BEND CAPACITY: 73 TONS
OVERALL BENDING LENGTH: 82"
DISTANCE BETWEEN FRAMES: 69"
THROAT DEPTH: 16-1/2"
STROKE: 7.87"
OPEN HEIGHT: 14"
SPEEDS - Y-RAPID: 472 IN./MIN.
Y-WORKING, MAX.: 35 IN./MIN.
Y-RETURN TRAVERSE SPEED: 472 IN./MIN.
X-AXIS: 1181 IN.MIN.
Z-AXIS: 2362 IN./MIN.
Y-AXIS POSITION ACCURACY: 0.0004 IN.
X-AXIS POSITION ACCURACY: 0.002 IN.
R-AXIS POSITION ACCURACY: 0.004 IN.
WORKING RANGE, Y-AXIS STROKE: 8"
TRAVEL PATH X-AXIS: 24"
TRAVEL PATH R-AXIS: 6"
OVERALL DIMENSIONS APPROX.: 102"L X 65"D X 93"H
APPROX. OVERALL WEIGHT: 12,456 LBS.

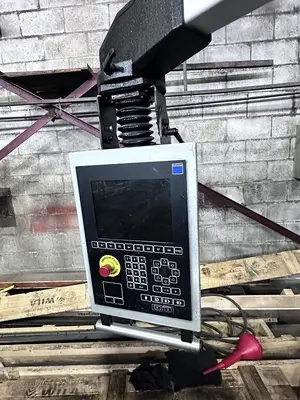

2D DELEM CNC CONTROL
4-AXIS BACK GAUGE ( X, R, Z1, Z2 )
TRUMPF LASER SAFETY LIGHTS
WILA NEW STANDARD HYDRAULIC UPPER CLAMPING
BOTTOM HYDRAULIC CLAMPING
MANUAL CROWNING SYSTEM

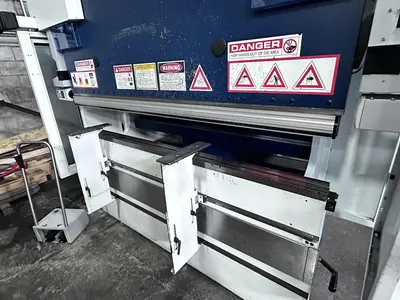

2 FRONT LINEAR SUPPORTS
MULTIFUNCTION FOOT SWITCH
