USED CHICAGO PNEUMATIC COMPRESSORS RCP-7581V

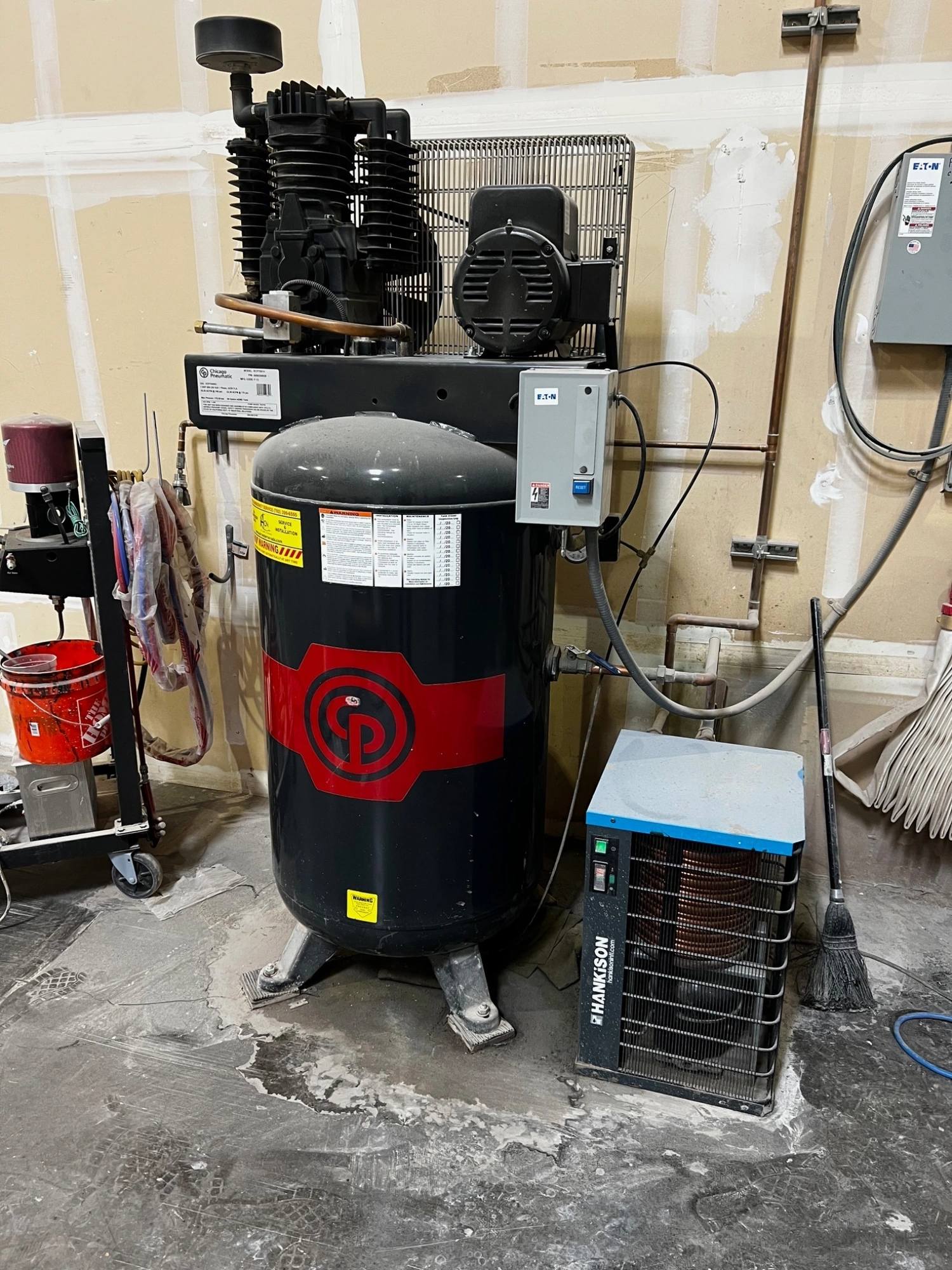

Chicago Pneumatic 7.5 HP Piston Air Compressor + SPX Hankison Refrigerated Air Dryer (Used)

Complete Industrial Compressed Air Package – Made in USA

This is a well-maintained, single-phase compressed air system ideal for woodworking, CNC, spray booths, or general industrial use. The system includes a Chicago Pneumatic 7.5 HP piston-style air compressor and a Hankison refrigerated air dryer by SPX FLOW. Together, they deliver clean, dry air and are perfect for shops without access to 3-phase power.

✅ Compressor Specifications
• Make: Chicago Pneumatic
• Model: RCP7581V
• Pump: RCP39 cast iron pump
• Horsepower: 7.5 HP
• Voltage: 208–230V, Single Phase, 60 Hz
• Max Pressure: 175 PSI
• Air Delivery:
 • 25.25 ACFM @ 100 PSI
 • 22.28 ACFM @ 175 PSI
• Tank: 80 Gallon vertical ASME tank
• RPM: 1400
• Amps: 32/29
• Origin: Made in USA

⸻

✅ Dryer Specifications
• Make: Hankison (SPX FLOW)
• Model: HPR25-115
• Type: Non-cycling refrigerated air dryer
• Capacity: 25 SCFM @ 100 PSIG, 100°F
• Max Working Pressure: 250 PSIG
• Max Inlet Temp: 120°F
• Power: 115V standard plug
• Refrigerant: R-134a
• Estimated Year: 2011
• Status: Tested and operational

⸻

🔧 Condition
• Both units recently removed from service and in good working condition
• Compressor runs strong and builds pressure normally
• Dryer powers on and cools as expected
• Cosmetic wear consistent with age (see photos)
• Ideal for small to mid-sized shops needing reliable compressed air without a 3-phase connection
All information, including photos and videos, has been provided by third-party sources and is believed to be accurate. However, it is the buyer’s sole responsibility to verify specifications, condition, and all relevant details prior to purchase.
