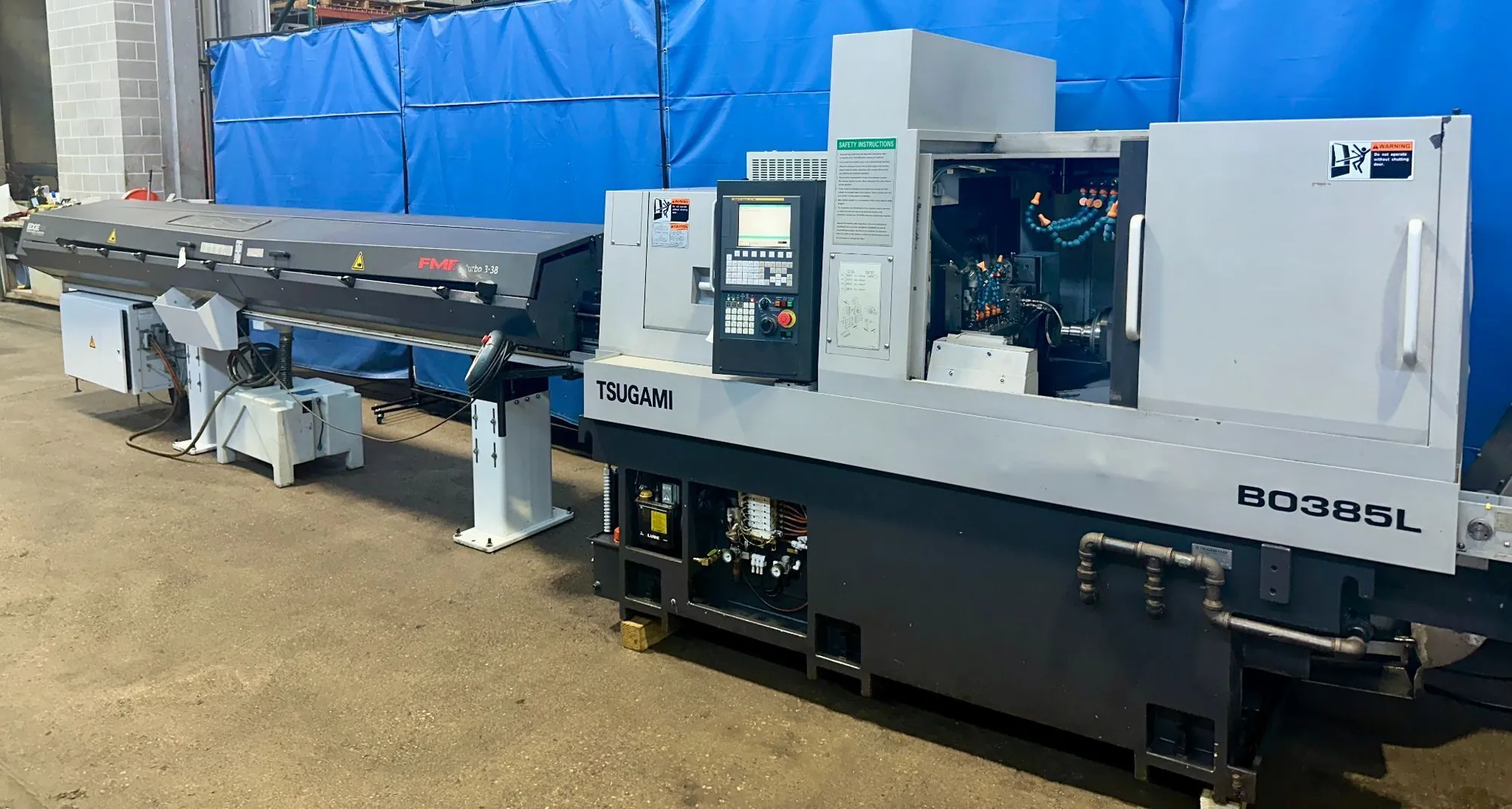

Tsugami B0385L 5-Axis CNC Swiss Turning Center, Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Rosedale Coolant Filters, Coolant Tank & LNS Chip Conveyor, New 2011
| CNC Control | Fanuc 0i-TD CNC | Fanuc 0i-TD CNC |
| # Axis | 5 | 5 |
| Max Working Barstock Diameter | 1.4961" | 38.001 mm |
| Max Workpiece Length | 3.937" | 100 mm |
| Max Drilling Diameter Main Spindle | 0.5118" | 13 mm |
| Max Tapping Diameter Main Spindle | M12 | M12 |
| Max Barstock Diameter Back Spindle | 1.4961" | 38.001 mm |
| Max Drilling Diameter Back Spindle | 0.4724" | 11.999 mm |
| Max Tapping Diameter Back Spindle | M12 | M12 |
| Max Drilling Diameter Tool Spindle | 0.3937" | 10 mm |
| Max Tapping Diameter Tool Spindle | M8 | M8 |
| Max Slotting Cutter Diam. Tool Spindle | 1.7717" | 45.001 mm |
| Main Spindle Speed Range | 200 - 6,000 RPM | 6,000 RPM |
| Back Spindle Speed Range | 200 - 7,000 RPM | 7,000 RPM |
| Tool Spindle Speed Range | 200 - 5,000 RPM | 5,000 RPM |
| Total Tool Storage Capacity | 23 | 23 |
| Tool Size | .787" x .787" x 4.92" | .787" x .787" x 4.92" |
| X1-Axis Rapid Traverse Rate | 944.9 in/min. | 24,000.4 mm/min. |
| Y1-Axis Rapid Traverse Rate | 944.9 in/min. | 24,000.4 mm/min. |
| Z1-Axis Rapid Traverse Rate | 944.9 in/min. | 24,000.4 mm/min. |
| X2-Axis Rapid Traverse Rate | 1,259.8 in/min. | 31,998.9 mm/min. |
| Spindle Index | C1 Axis and C2 Axis | C1 Axis and C2 Axis |
| Main Spindle Power | 14.8 hp | 11 kW |
| Back Spindle Power | 7.4 hp | 5.5 kW |
| Cross Drill of Front Tool Post Power | 1.3 hp | 1 kW |
| Cross Drill of Rear Tool Post Drive | 1.3 hp | 1 kW |
| Z1 Axis Power | 1.6 hp | 1.2 kW |
| X1 Axis Power | 1 hp | 0.7 kW |
| Y1 Axis Power | 1 hp | 0.7 kW |
| X2 Axis Power | 3.4 hp | 2.5 kW |
| Z2 Axis Power | 3.4 hp | 2.5 kW |
| Coolant Pump Power | 0.8 hp | 0.6 kW |
| Lubricating Oil Pump Power | 0.004 hp | 0 kW |
| Power Source Requirement | 30 kV·A | 30 kV·A |
| Compressed Air Requirement | 58 PSI | 4 bar |
| Air Discharge Rate | 3.5 SCFM | 99.1 L/min. |
| Coolant Tank Capacity | 51.5 gal | 194.9 L |
| Dimensions | 99.2" x 52.95" x 77.56" | 99.2" x 52.95" x 77.56" |
| Weight | 10,150 lbs | 10,150 lbs |
Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Coolant Tank & LNS Chip Conveyor, 48 Collets & 10 Toolholders (4 Live) Included, New 2011.
Hours as of 7/31/2025 (as in photo):
* Power On: 45,090 Hours
* Cutting Time: 18,111 Hours
*** Replacement Cost for This Equipped System If Purchased New Today: $300,000
