USED 1979 TOSHIBA BFT-13C-W3
Overview
Description

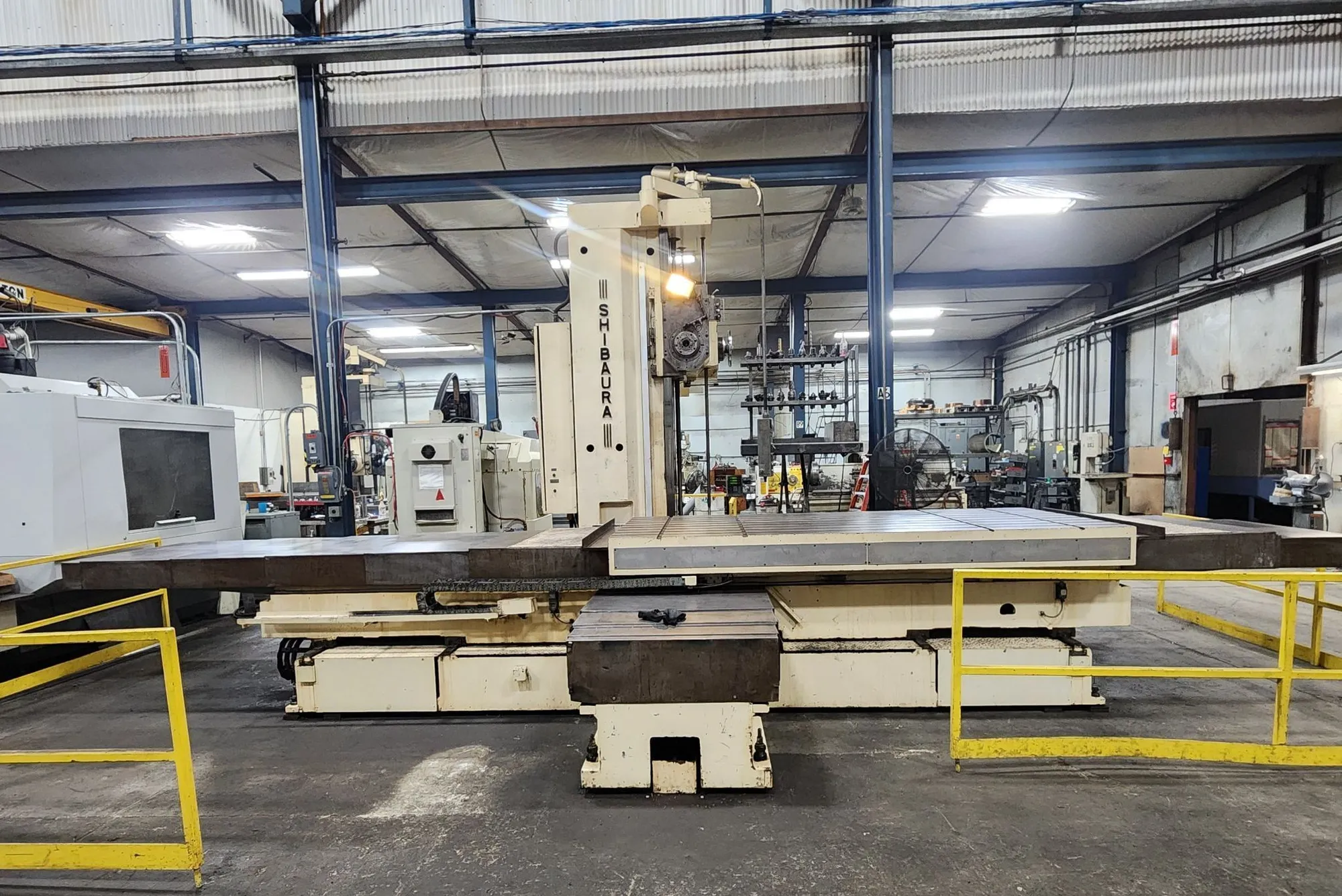

TOSHIBA BFT-13C-W3 horizontal boring mill. 5.12" spindle diameter, #50 taper spindle, and large 59.1" x 118.2" table. 118" X Travel, 83" Y travel, Equipped with hardened ways, Right Angle Head and Newall digital readouts.
Specifications
| Spindle Size | 5.12" | 130.05 mm |
|---|---|---|
| X-Horiz Tvl of Table | 118.2" | 3,002.3 mm |
| Y-Vert Tvl of Head | 82.7" | 2,100.6 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 1,200 RPM | 1,200 RPM |
| Capacity | 5" | 127 mm |
DIAMETER OF SPINDLE .................. 5.12"
TAPER IN SPINDLE ..................... #50
DIAMETER OF MILLING QUILL ............ 8.86"
SPINDLE TRAVEL ....................... 35.4"
HEADSTOCK VERTICAL TRAVEL ............ 82.7"
TABLE WORKING SURFACE ................ 59.1" X 118.2"
TABLE CROSS TRAVEL ................... 118.2"
TABLE LOAD ........................... 22,000 LBS.
TABLE LONGITUDINAL TRAVEL ............ 63"
RAPID TRAVERSE RATE .................. 126 IPM
SPINDLE SPEEDS (27) .................. 9 TO 1200 RPM
FEEDS RANGES:
HIGH SPINDLE SPEED RANGE .......... .0001 - .07 IPR
MEDIUM SPEED RANGE ................ .0006 - .315 IPR
LOW SPINDLE SPEED RANGE ........... .0003 - 1.73 IPR
APPROX. WEIGHT ....................... 72,500 LBS
DIMENSIONS ........................... 264"F-B x 315"W X 175"H
Equipped With
- FOUR WAY BED CONSTRUCTION AND OUTRIGGERS
- #50 TAPER POWER DRAW BAR
- T-SLOTTED TABLE
- POWER RAPID TRAVERSE
- HARDENED WAYS ALL AXES
- SIMPLE PENDANT CONTROL
- NEWALL DIGITAL READOUTS
- TELSCOPIC WAY COVERS FOR CROSS & SADDLE TRAVELS
- 25 HORSE POWER SPINDLE MOTOR
- SPINDLE SUPPORT
- RIGHT ANGLE HEAD (2)
Inspect Under Power in NY. Call us or email for pre-removal pricing.
