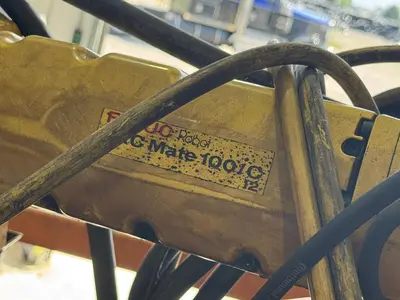

USED 2015 GENESIS/FANUC ARCMATE 100IC/12

Genesis/FANUC Arcmate 100iC/12, R-30iB Control, Used, 2015

This used Genesis/FANUC Arcmate 100iC/12 (2015) is a unit available from R.A.B. Industries. It is equipped with the R-30iB controller.

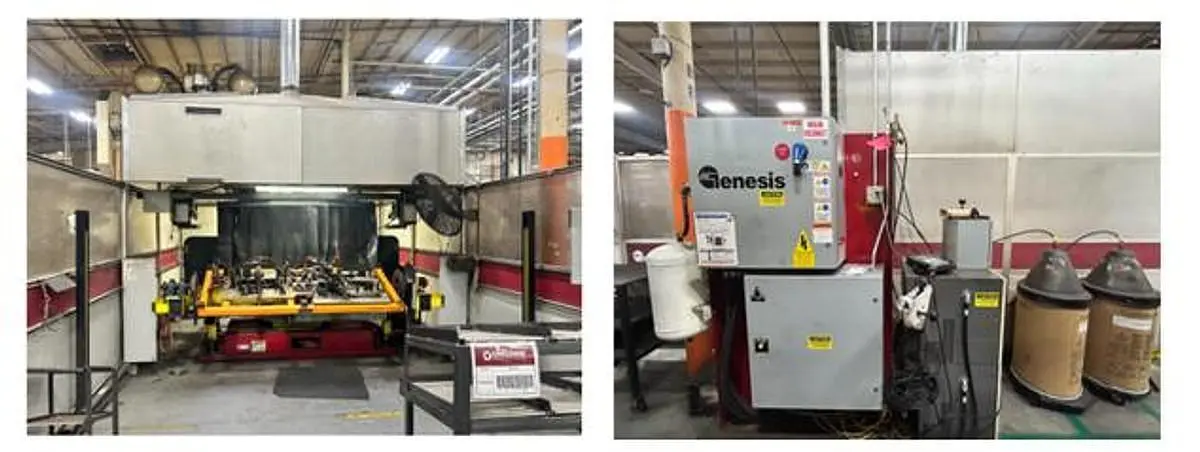

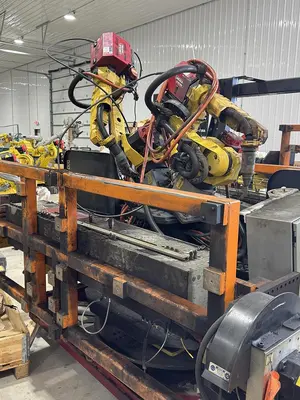

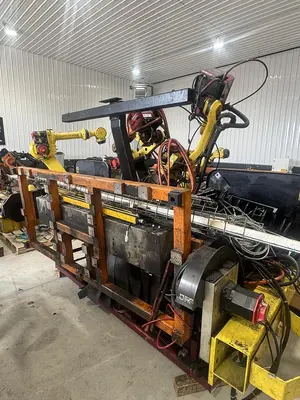

1-USED GENESIS/FANUC DUAL ARCMATE 100iC/12 DUAL TRUNION MIG WELDING CELL WITH

R-30iB CONTROLLERS, LINCOLN WIRE FEEDERS, TEACH PENDANTS, CABLES,

WELDING POWER SUPPLIES, AND FULL ENCLOSURE

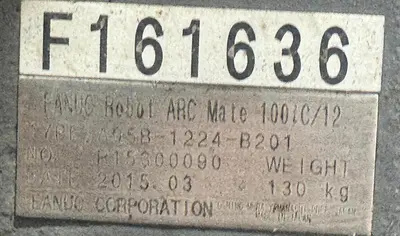

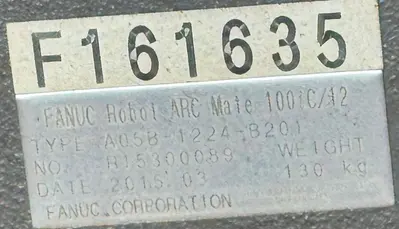

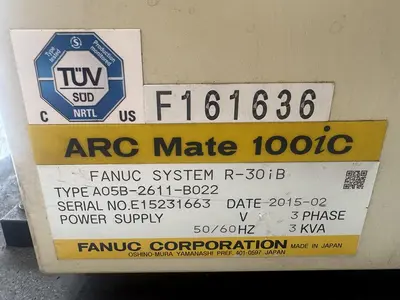

ROBOT SERIAL NUMBERS: F161636 & F161635

HOURS: ROBOT 1: 4,787

ROBOT 2: 5,921

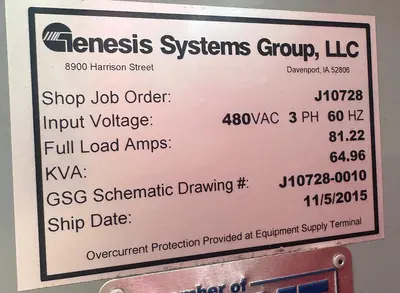

DATE OF MFG. FOR THE CELL 11/05/2015

GENESIS JOB NUMBER J10726

STK#105347

==============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 1420mm

Repeatability: ±0.08mm

Robot Mass: 130kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 230 °/s (4.01 rad/s)

J2 225 °/s (3.93 rad/s)

J3 230 °/s (4.01 rad/s)

J4 430 °/s (7.5 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±250°

J3 ±445°

J4 ±380°

J5 ±380°

J6 ±720°

Applications:

Arc Welding Robots

Laser Welding Robots

MAG Welding Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

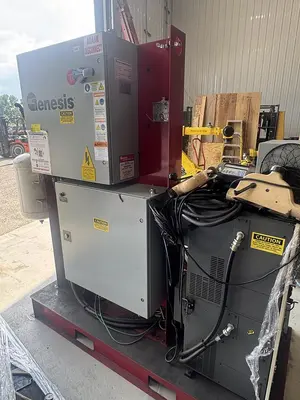

CELL EQUIPPED WITH:

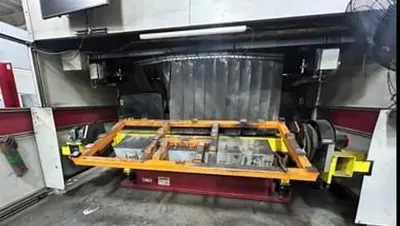

GENESIS DUAL TRUNNION FIXTURE WITH A CAPACITY OF 80" LENGTH X 40" SWING

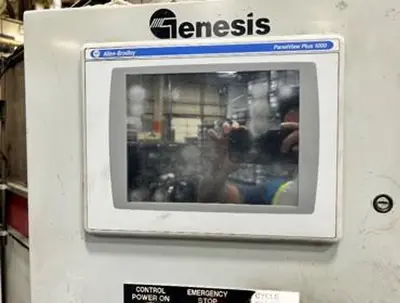

ALLEN BRADLEY PANEL VIEW 1000

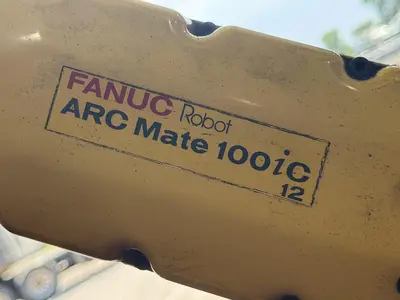

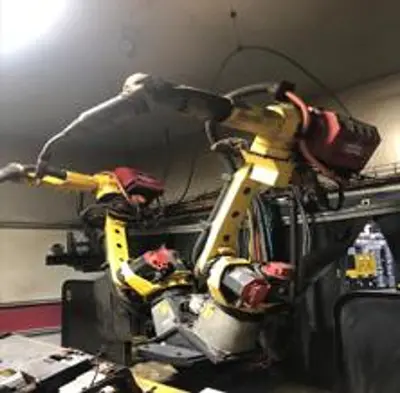

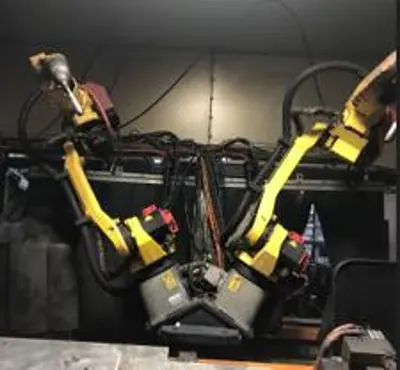

2 FANUC ARC MATE 100iC ROBOTS

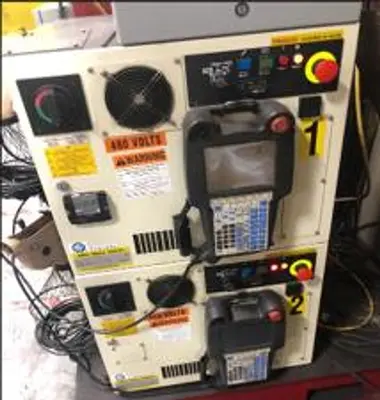

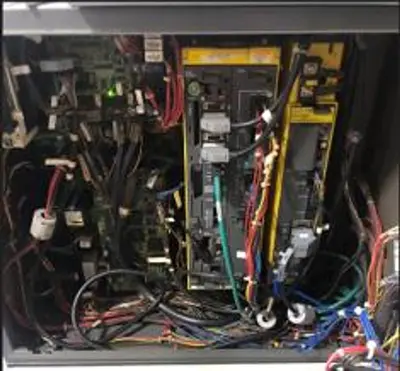

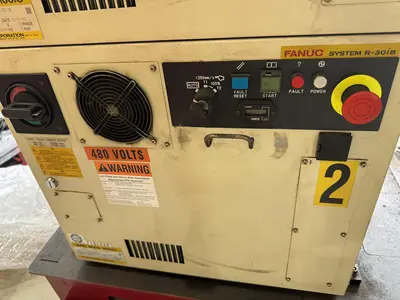

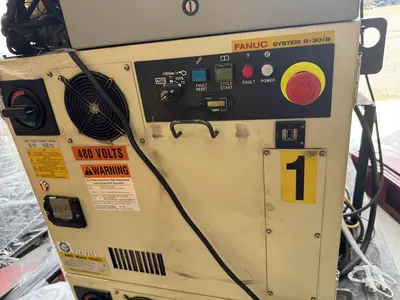

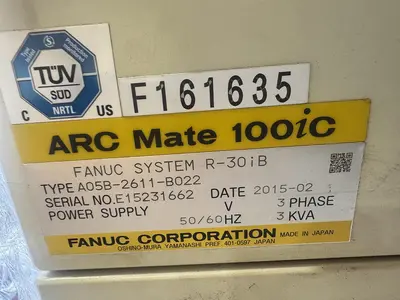

2 FANUC R-30iB CONTROLLERS

2 SETS FANUC ROBOT CONNECTION CABLES

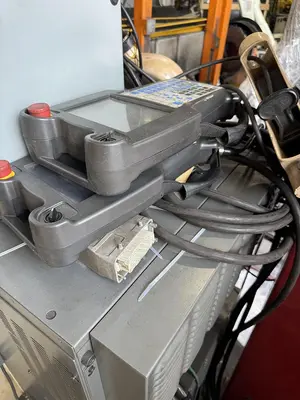

2 FANUC COLOR TEACH PENDANTS

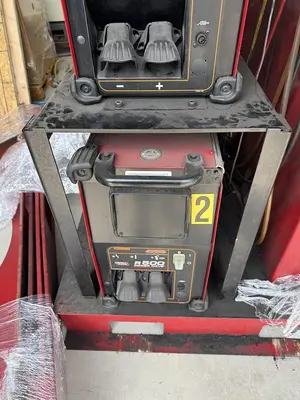

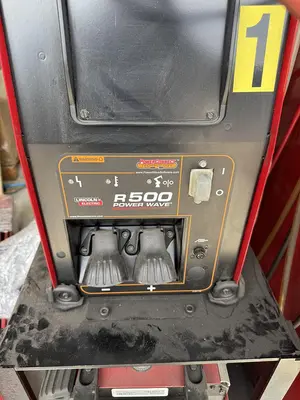

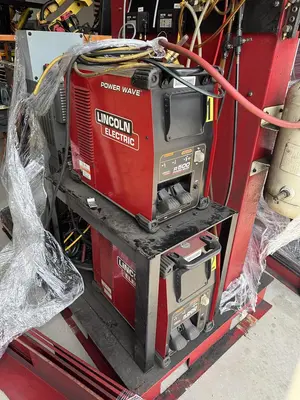

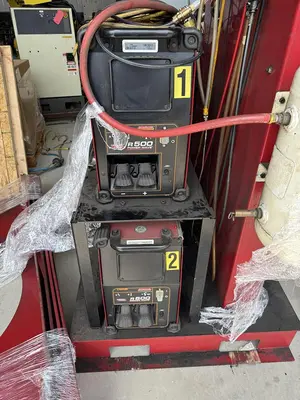

2 WELDING POWER SUPPLIES

2 LINCOLN WIRE FEEDERS MODEL 4R220

2 WELDING TORCHES

CABLES

1 FULL ENCLOSURE

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
