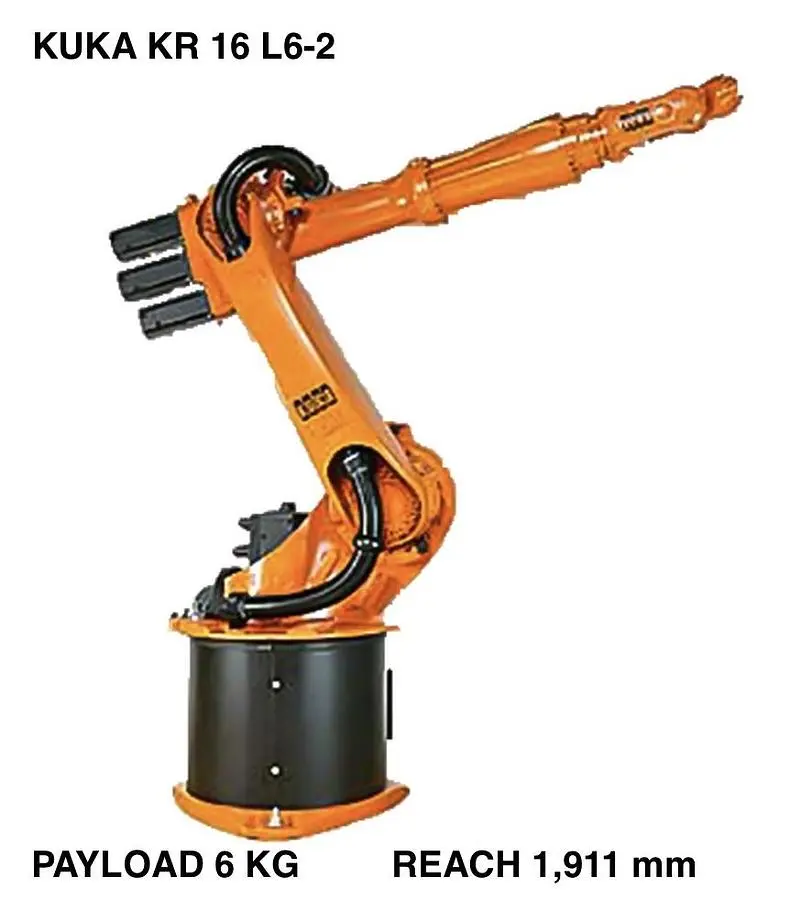

USED 2014 KUKA KUKA KR16 L6-2

KUKA KR16 L6-2 Robot, KRC4 Control, Used, 2014, S/N 690158

This used KUKA KR16 L6-2 (2014) is a robot available from R.A.B. Industries. It is equipped with the KRC4 controller and 6-axis configuration.

1-USED KUKA KR16 L6-2 6 AXIS ROBOT

SERIAL NUMBER 690158

DATE OF MFG. 07/2014

STK#105307

========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

If your low-payload application requires a long, extended reach, then consider the KR 16 L6-2. It has a reach of 1911 mm, payload of 6 kg, and mounting options include floor or ceiling. It is sure to bring your production line ultimate efficiency. This robot is paired with the KRc4 controller.

ROBOT SPECIFICATIONS:

KR 16 l6-2 Maximum reach 1,911 mm

Rated payload 6 kg

Suppl. load, arm/link arm/rotating col. 10/variable/20 kg

Suppl. load, arm + link arm, max. variable

Maximum total load 36 kg

number of axes 6

Mounting position floor, wall, ceiling variant

positioning repeatability* ±0.05 mm

path repeatability*

Controller KRc4

Weight (excluding controller), approx. 240 kg

Temperature during operation +5 °c to +55 °c

Protection classification ip 65

Robot footprint 500 mm x 500 mm

Connection 7.3 kvA

Noise level < 75 db

Axis data Range (software) speed with rated payload 6 kg

Axis 1 (A1) ±185° 156°/s

Axis 2 (A2) +35°/–155° 156°/s

Axis 3 (A3) +154°/–130° 156°/s

Axis 4 (A4) ±350° 335°/s

Axis 5 (A5) ±130° 355°/s

Axis 6 (A6) ±350° 647°/s

Equipped with:

Kuka KRc4 Controller

Kuka Robot Connection Cables

Kuka Teach Pendant

APPLICATIONS

Arc Welding Robots,

Machine Loading Robots

Material Handling Robots

Order Picking Robots

Packaging Robots

Palletizing Robots

Part Transfer Robots
