USED FANUC ARCMATE 100IBE

This used FANUC Arcmate 100iBe (nan) is a robot available from R.A.B. Industries. It is equipped with the RJ3iB controller and 6-axis configuration.

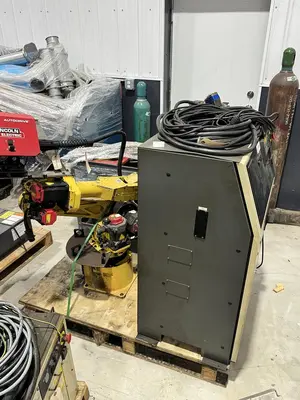

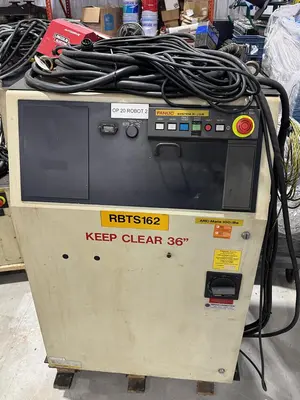

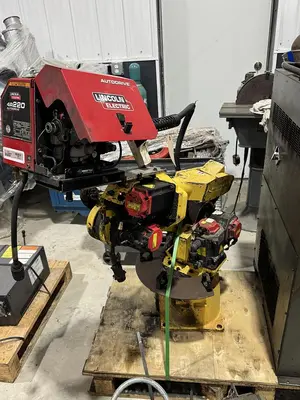

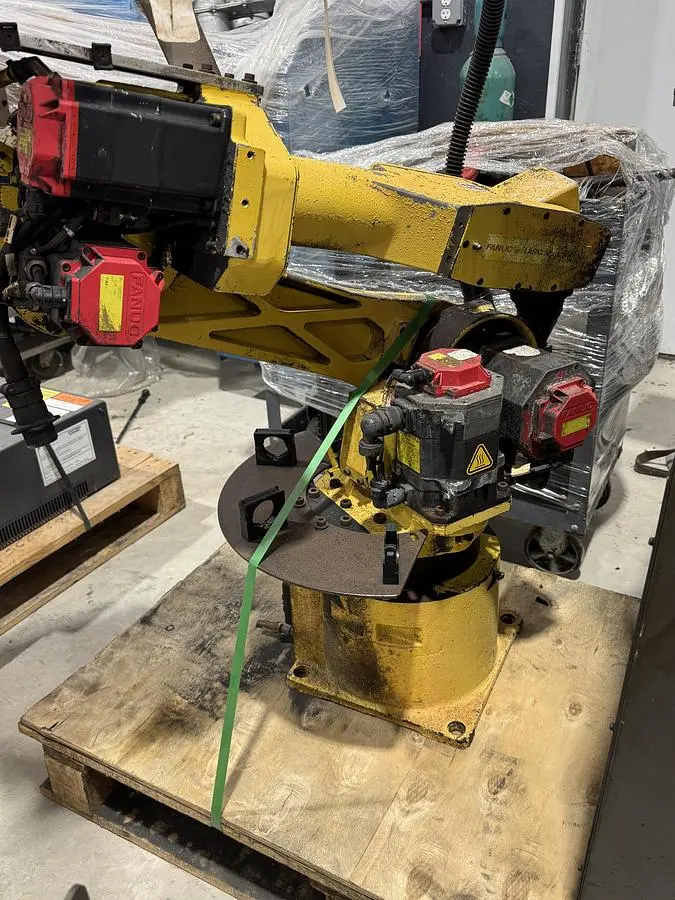

1-FANUC ARC MATE 100iBe 6 AXIS ARC WELDING ROBOT WITH RJ3iB CONTROLLER

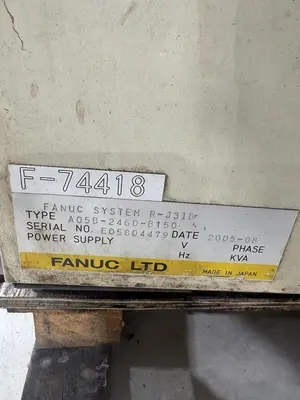

SERIAL NUMBER F74418

DATE OF MFG.

STK#105309

========================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The Fanuc ARC Mate 100iBe is a val­ue ori­ent­ed robot designed to deliv­er peak pro­duc­tiv­i­ty for arc weld­ing robot appli­ca­tions. It has six axes, a remark­able reach/​stroke ratio, and ele­vat­ed axis speeds. The com­pact Fanuc 100iBe R‑J3iB weld­ing robot design reduces instal­la­tion and trans­porta­tion timing. The con­troller has been inte­grat­ed into the base of the weld­ing robot to sim­pli­fy instal­la­tion and con­serve pro­duc­tion floor space. All basic arc weld­ing robot­ic soft­ware fea­tures are sup­port­ed to pro­vide supe­ri­or per­for­mance for sim­ple and com­plex arc weld­ing appli­ca­tions. The ARC Mate 100iBe R‑J3iB is capa­ble of arc weld­ingas well as a vari­ety of weld­ing applications. The 100iBe robot has a con­densed wrist design min­i­mizes air-cut times, high axis speeds enhances prod­uct out­put, and is avail­able with 2 or 6 brakes.

Robot Specifications:

PAYLOAD 6 kg

REACH 1373 mm

AXES 6

REPEATABILITY 0.08 mm

MASS 238 kg

STRUCTURE Articulated

MOUNTING Floor

Robot Motion Speed:

J1 150 °/s (2.62 rad/s)

J2 160 °/s (2.79 rad/s)

J3 170 °/s (2.97 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range:

J1±340°

J2±250°

J3±340°

J4±380°

J5±280°

J6±720°

Primary Applications:

Arc Welding Robots

Laser Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Welding Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
