USED 2016 FANUC FANUC M-20IA/35M

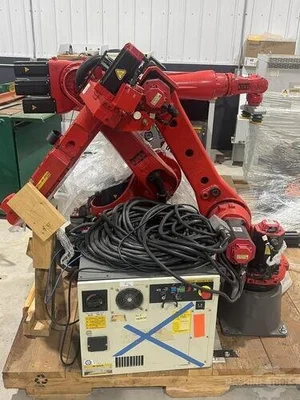

FANUC M-20iA/35M Robot, R-30iB Plus Control, Used, 2016

This used FANUC M-20iA/35M (2016) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller and 6-axis configuration.

1-FANUC M-20iA/35M 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER, TEACH PENDANT, AND

CABLES, HIGH INERTIA WRIST, 1,813 MM REACH

SERIAL NUMBER F190174

DATE OF MFG 11/2016

CONTROLLER PART NUMBER A05B-2611-B322

MECHANICAL PART NUMBER A05B-1225-B705

STK#105306

===============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The Fanuc M-20iA is one awesome robot. A high Inertia robot that can lay waste to loading jobs, machine tending jobs, Assembly jobs, and more. Its a full 6 axis robot with a hollow arm, no need for an external dress pack.

Robot Specifications:

Axes: 6

Payload: 35kg

H-Reach: 1813mm

Repeatability: ±0.08mm

Robot Mass: 252kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 180 °/s (3.14 rad/s)

J2 180 °/s (3.14 rad/s)

J3 200 °/s (3.49 rad/s)

J4 350 °/s (6.11 rad/s)

J5 350 °/s (6.11 rad/s)

J6 400 °/s (6.98 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±260°

J3 ±461°

J4 ±400°

J5 ±280°

J6 ±900°

Equipped With:

Fanuc R-30iB Controller

Fanuc Robot Connection Cables

Fanuc Teach Pendant

EE Connection

Applications:

Material Handling Robots

Assembly Robots

Machine Loading Robots

Machine Tending Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
