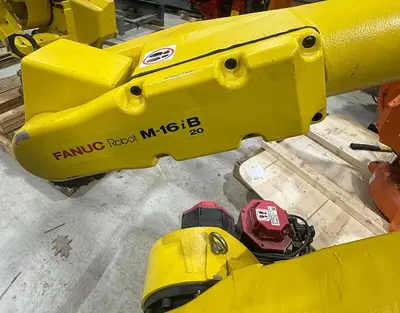

USED 2006 FANUC M16IB/20

This used FANUC M16iB/20 (2006) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.

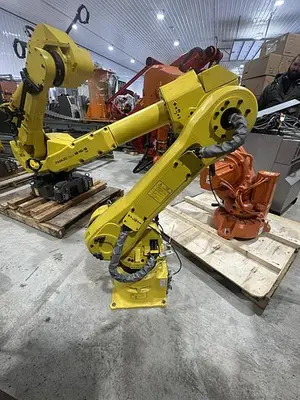

1-USED FANUC M16iB/20 6 AXIS CNC ROBOT WITH R30iA CONTROLLER, PENDANT, CABLES

FROM LABORATORY
SERIAL NUMBER F80426
DATE OF MFG. 01/2006

CONTROLLER TYPE A05B-2512-B330

ARM TYPE A05B-1216-B402
STK#105237
================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications
Axes: 6
Payload: 20.00kg
H-Reach: 1667.00mm
Repeatability: ±0.0800mm
Robot Mass: 220.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°

EQUIPPED WITH:

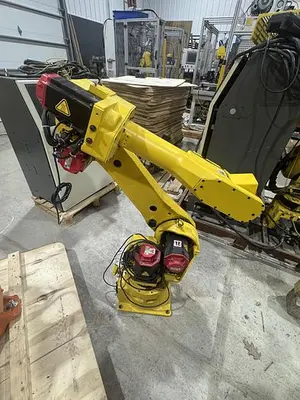

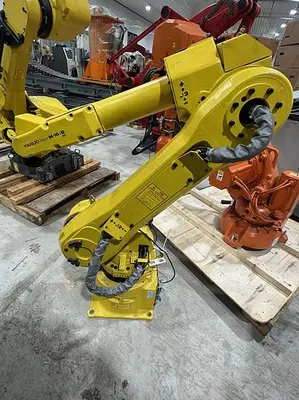

FANUC M16iB/20 ROBOT MECHANICAL UNIT

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

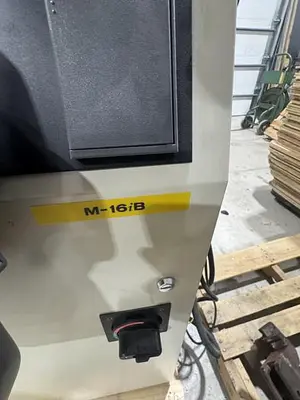

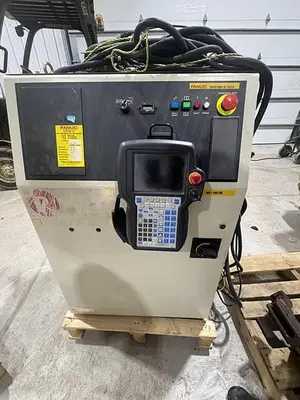

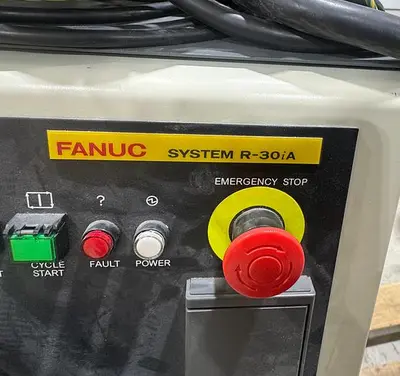

FANUC R30iA CONTROLLER

ROBOT STAND

Robot Applications
Material Handling Robots

Mig Welding Robots

Machine Tending Robots

This Robot is Designed to perform many material handling applications, the FANUC M-16iB/20 features a payload capacity of 20 kilograms. It has servo driven motors, a simple construction, and reliable motion control that further improved productivity and performance.

An M16iB/20 RJ3iB has a small footprint, streamline design, and reaches 1,667 millimeters horizontally to ensure a large work envelope and that large parts will be reached. Along with a small footprint, this robot also saves space by providing the manufacturer with a variety of mounting options, including floor, inverted, angle, and wall mounting.
