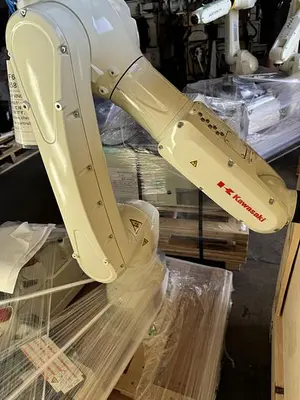

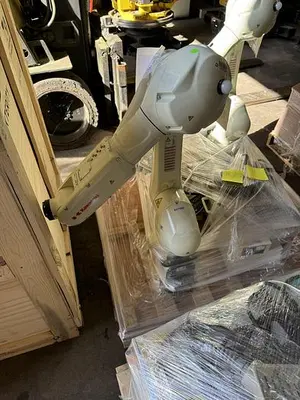

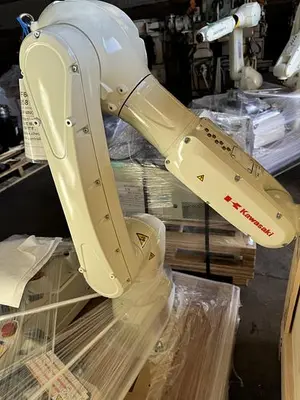

USED 2022 KAWASAKI ROBOTICS RS007L

Kawasaki RS007L Robot, F60 Control, Used, 2022, S/N 5664

This used Kawasaki RS007L (2022) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 6-axis configuration.

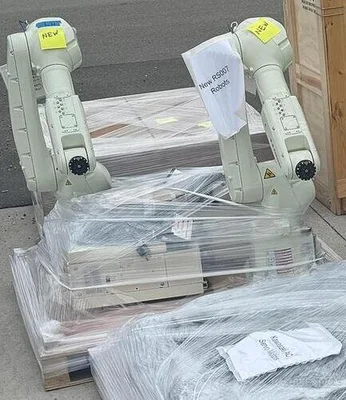

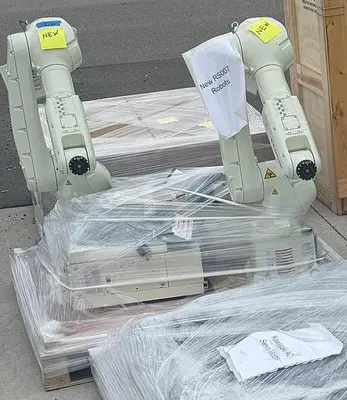

NEVER USED KAWASAKI MODEL RS007L 6 AXIS ROBOT

WITH F60 CONTROLLERS, TEACH PENDANTS, AND CABLES.

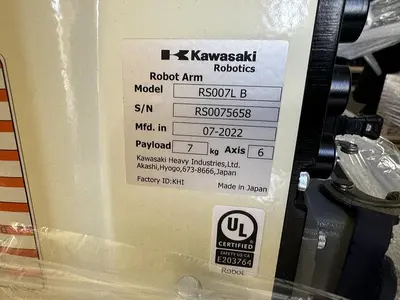

SERIAL NUMBER 5664

ADDITIONAL NEW UNIT SN 5658

DATE OF MFG. 07/2022

(2) UNITS AVAILABLE

STK# 105208

=====================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER.

High Speed, High Performance Robot

The R series robots are setting the benchmark for all small to medium duty industrial robots. The RS007L is part of the next generation of the series, which offers a redesigned arm structure and main-unit weight reductions. By utilizing a cantilever design for the upper arm section, Kawasaki has achieved a longer maximum reach and an expanded range of motion below, behind and in the immediate vicinity of the robot. These enhancements result in the fastest operating speeds in its class along with increased working ranges.

Robot Specifications:

Axes: 6

Payload: 7kg

H-Reach: 930 mm

Repeatability: ±0.03 mm

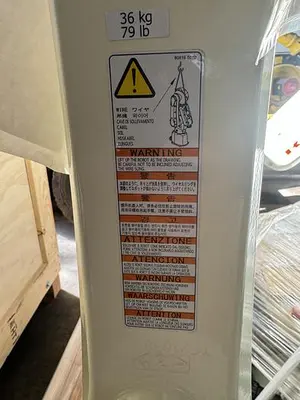

Robot Mass: 36 kg

Structure: Articulated

Mounting: Floor, Wall, Ceiling

Robot Motion Speed:

Jt1 370 °/s (1.66 rad/s)

Jt2 310 °/s (1.57 rad/s)

Jt3 410 °/s (1.66 rad/s)

Jt4 550 °/s (2.09 rad/s)

Jt5 550 °/s (2.09 rad/s)

Jt6 1000 °/s (3.32 rad/s)

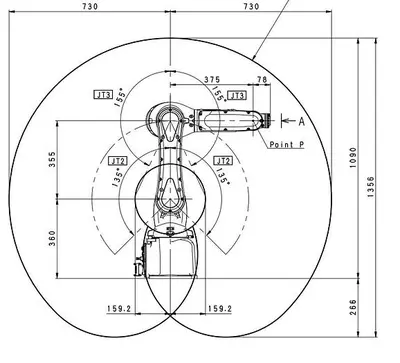

Robot Motion Range:

Jt1 ±180°

Jt2 ±135°

Jt3 ±157°

Jt4 ±200°

Jt5 ±125°

Jt6 ±360°

EQUIPPED WITH:

KAWASAKI F60 CONTROLLER

KAWASAKI ROBOT CONNECTION CABLES

KAWASAKI TEACH PENDANT

Applications:

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Pick and Place Robots

Assembly Robots

Material Removal Robots

Adhesive/Dispensing Robots

KAWASAKI BUILDS HIGH QUALITY ROBOTS TO MEET THE AUTOMATION NEEDS OF ANY INDUSTRY.

WITH KAWASAKI ROBOTS IN USE IN NEARLY EVERY CORNER OF THE WORLD ITS SURE THEY BUILD

A ROBOT TO MEET YOUR FACTORY APPLICATIONS. RAB INDUSTRIES, INC. SELLS THE NEW LINE

OF EQUIPMENT KAWASAKI ROBOTICS BUILDS. PLEASE CALL US TO DISCUSS YOUR AUTOMATION

REQUIREMENTS. YOU WILL LOVE THE GREAT PEOPLE AND SUPPORT AT KAWASAKI.
