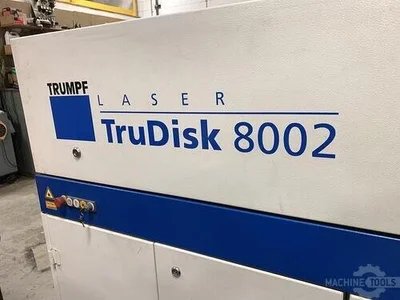

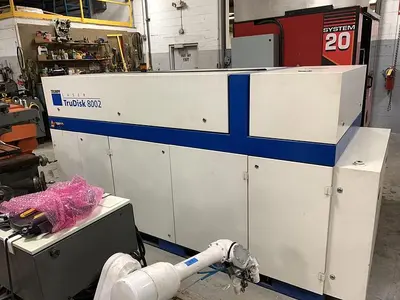

USED 2008 TRUMPF TRUDISK 8002

Trumpf 8002, Used, 2008, S/N E01853A0002

This used Trumpf 8002 (2008) is a unit available from R.A.B. Industries. It is equipped with the nan controller.

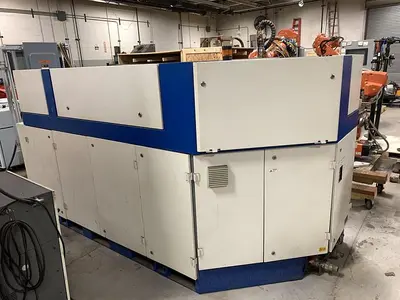

1-USED TRUMPF TRUDISK 8002 LASER

SERIAL NUMBER E01853A0002

DATE OF MFG. 2008

STK#105207

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The TruDisk is a high-power solid-state laser for the welding, cutting, and surface processing of metals

-100% consistent power output Stable processes through integrated, active laser power

control ensure reproducible results.

- Maximum beam quality As a laser medium, the disk in the TruDisk ensures brilliant beam quality up to 2 mm·mrad.

Robust against reflectionThe patented resonator design means that your TruDisk can also process highly reflective materials.

-Intelligent energy management Multiple energy-saving modes and the power factor correction reduce the power requirement.

- Low-spatter weldingWith BrightLine Weld you can achieve high-quality welding seams with minimal spatter formation.

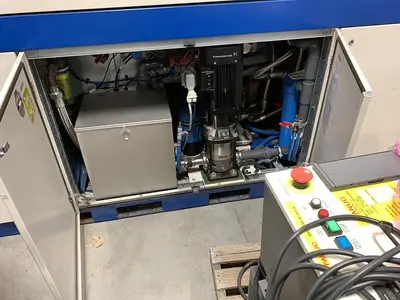

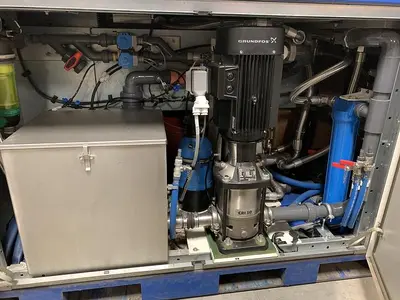

-Flexible cooling conceptChoose between an integrated heat exchanger (standard) and compressor cooler (optional).

LASER PARAMETERS

LASER POWER ON THE WORKPIECE 8,000 WATTS

TYPICAL POWER CONSTANCY AT RATED POWER ± 1 % with active power regulation

CONTINUOUSLY ADJUSTABLE POWER RANGE 160 W with active power range

BEAM QUALITY AT THE INPUT COUPLING IN THE LLK 8 mm▪mrad

NUMERICAL APERTURE ON THE OUTPUT COUPLING AFTER LLK 0.1

WAVELENGTH 1030 nm

MINIMUM LASER LIGHT CABLE DIAMETER 200 μm

TYPICAL POWER CONSTANCY AT RATED POWER OVER 8 HOURS AT CONSTANT

AMBIENT TEMPERATURE ± 0.5 %

WIDTH 1175 mm

HEIGHT 1430 mm

DEPTH 725 mm

MAXIMUM NUMBER OF LASER LIGHT CABLES 2

MAXIMUM NUMBER OF LASER LIGHT CABLES FOR EXTENDED DEVICE SIZE 4

PROTECTION CLASS IP54

AMBIENT TEMPERATURE 10 °C - 50 °C

39 KW/40KVA/56AMP
