USED 2016 FANUC R2000IC 165F

FANUC R-2000iC/165F Robot, R-30iB Control, Used, 2016

This used FANUC R-2000iC/165F (2016) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller and 6-axis configuration.

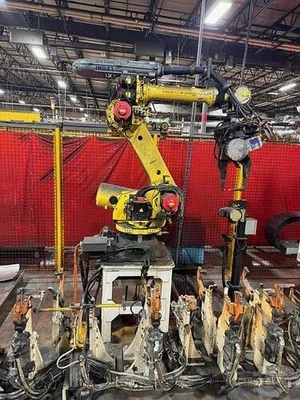

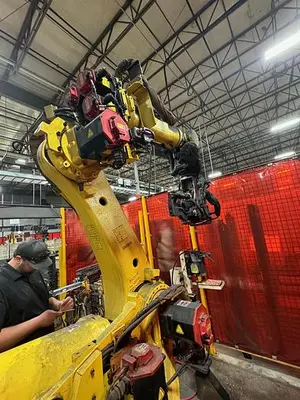

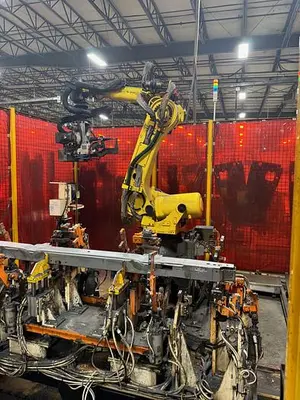

1-USED FANUC R-2000iC/165F 6 AXIS ROBOT WITH R-30iB CONTROLLER

SERIAL NUMBER F179551

DATE OF MFG. 03/2016

STK#105192

QUANTITY AVAILABLE 4 UNITS SERIAL NUMBERS F179551, F179125, F176646, F179110 ALL 2016

2 OF THE ABOVE UNITS ARE MOUNTED ON 3 METER ROBOT TRANSFER UNITS

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The Fanuc R‑2000iC/​165F is an advanced, 6‑axis, mul­ti-pur­pose robot that can han­dle a 165 kg pay­load. The R‑2000iC/​165F is a flex­i­ble robot, mak­ing it ide­al for a vari­ety of appli­ca­tions, rang­ing from spot weld­ing to mate­r­i­al han­dling. It has an incred­i­bly durable thin wrist that deliv­ers excel­lent cycle times, mak­ing it per­fect for tight space spot weld­ing. Also, the Fanuc R‑2000iC/​165F has been thought­ful­ly designed to max­i­mize use of work space and be in clos­er prox­im­i­ty to oth­er robots.

Over­all, the diverse Fanuc R‑2000iC/​165F comes equipped with the new R‑30iB con­troller and will be a great addi­tion to your factory. Whatever the application, with its 165 kg capacity this model is a great choice for tasks involving high payloads.

PRIMARY APPLICATIONS:

Spot Welding Robots

Material Handling Robots

Assembly Robots

Dispensing Robots

Material Removal Robots

Pick & Place Robots

Packaging Robots

Palletizing Robots

ROBOT SPECIFICATIONS:

PAYLOAD 165 kg

REACH 2655 mm

AXES 6

REPEATABILITY 0.2 mm

MASS 1090 kg

STRUCTURE Articulated

MOUNTING Floor

ROBOT MOTION SPEED:

J1 130 °/s (2.27 rad/s)

J2 115 °/s (2.01 rad/s)

J3 125 °/s (2.18 rad/s)

J4 180 °/s (3.14 rad/s)

J5 180 °/s (3.14 rad/s)

J6 260 °/s (4.54 rad/s)

ROBOT MOTION RANGE:

J1 ±370°

J2 ±136°

J3 ±312°

J4 ±720°

J5 ±250°

J6 ±720°

EQUIPPED WITH:

FANUC 7TH AXIS DRIVE FOR SPOT WELDING GUN

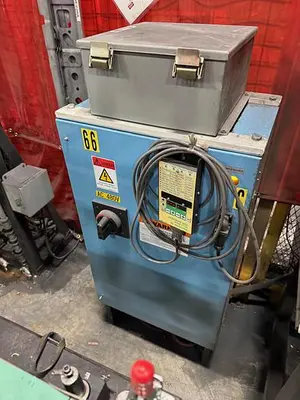

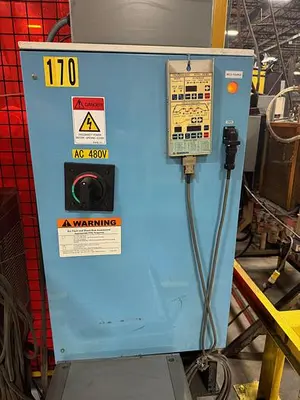

DENGENSHA SERVO SPOT WELD GUN AND POWER SUPPLY

& DENGENSHA PROGRAM BOX PBM-770E

FANUC R-30iB ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
