NEW KAWASAKI ROBOTICS RS80N

This new, never-used Kawasaki RS080N (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 5-axis configuration.

1- BRAND NEW KAWASAKI MODEL RD080N ROBOT

WITH E03 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#105189

======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

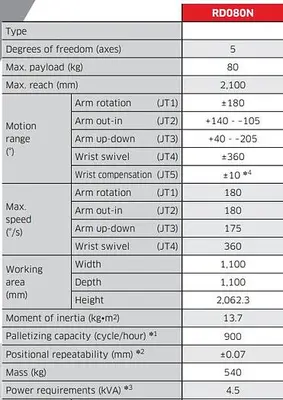

ROBOT SPECIFICATIONS:

PAYLOAD: 80KG

MAX. REACH: 2100MM

ROBOT CATEGORY: PALLETIZING ROBOTS

MOUNTING: FLOOR

ROBOT SERIES: PALLETIZING SERIES

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +140 - –105

ARM UP-DOWN (JT3): +40 - –205

WRIST SWIVEL (JT4): ±360

WRIST SWIVEL (JT5): ±10

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 180

ARM OUT-IN (JT2): 180

ARM UP-DOWN (JT3): 175

WRIST SWIVEL (JT4): 360

MOMENT OF INERTIA (KG X M2)

13.7

PALLETIZING CAPACITY (CYCLES PER HOUR)

900

ROBOT MASS (KG)

540

DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP65

EQUIPPED WITH:

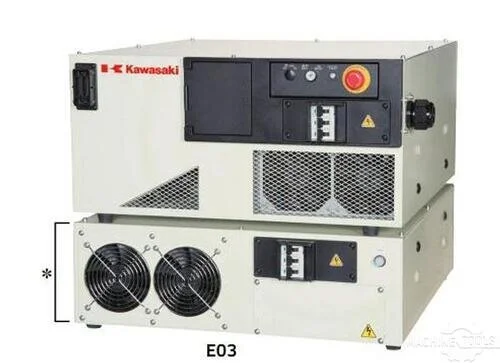

KAWASAKI ROBOTICS E03 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

DESCRIPTION:

In today’s highly competitive marketplace, meeting the demand for just-in-time deliveries, flexible packaging, the freshest products, or the highest production line efficiencies can be crucial to a company’s success. Efforts to meet these demands have led to the development of automation systems for the end-of-line and distribution processes of palletizing and depalletizing. Kawasaki’s robotic palletizing solutions provide the pallet pattern flexibility, tooling flexibility, and cycle times needed to deal with multi-variety and small-batch production, and reduce process change costs. Kawasaki Robotics offers two lines of palletizing robots with a wide range of payload options to suit most needs, including the RD080N robot with a maximum payload of 80 kg, and CP180L/300L/500L/700L robots with maximum payloads of 180/300/500/700 kg. Each has industry leading reach, speed and quality to deliver high-performance automation technology for most any palletizing application. Kawasaki can provide a solution to give your production line the palletizing flexibility and product rate it needs to compete in today's economy
