USED 2015 DENGENSHA DENGENSHA NDZ-050-41BNU-R-D

Dengensha NDZ-050-41BNU-R-D, Used, 2015, S/N 3168891B001

This used Dengensha NDZ-050-41BNU-R-D (2015) is a unit available from R.A.B. Industries. It is equipped with the nan controller.

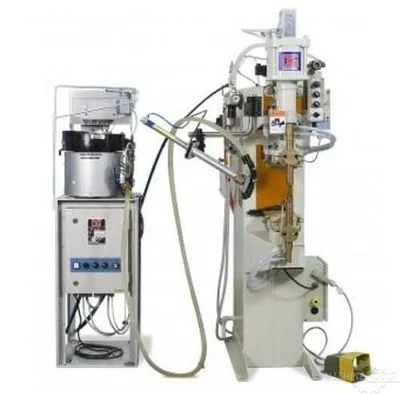

1-USED DENGENSHA NDZ-050-41BNU-R-D PROJECTION SPOT WELDER 60 KVA WITH NUT FEEDER

SERIAL NUMBER 3168891B001

DATE OF MFG. 2015

STK 105180

================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

5 Units Available in a couple different model numbers.

POWER SOURCE 1 PHASE AC 480 VOLT 60 HZ +PE

RATED CAPAPACITY 60 KVA (50% DUTY CYCLE)

ALLOWABLE DUTY CYCLE 8.1%

MAX. SHORT CIRCUIT CURRENT 20,000 A

MAX. LOAD CURRENT (100% DUTY) 345 A

AIR 0.5 TO 0.7 MPa 367L/MIN

IP CODE IP 54

AMPIENT TEMP 0-40 DEGREES CELCIUS

MASS 285KG

MFG. NUMBER 15-0618A-1

RATED MAX. INPUT 149 KVA

RATED RATED ELECTRODE FORCE 10kn

RUSH CURRENT 40A

COOLING WATER 0-30 DEGREES C 8L/MIN

AVAILABLE JULY 2024
