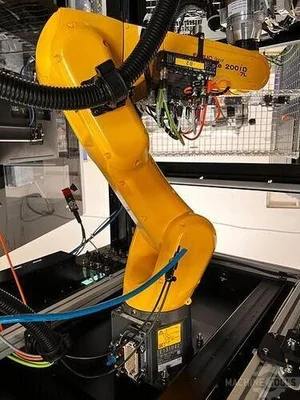

This used FANUC LR 200iD/7L (2019) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller and 6-axis configuration.

1-USED FANUC LR MATE 200iD/7L 6 AXIS ROBOT WITH FANUC R-30iB CONTROLLER

MACHINE SERIAL NUMBER E-131042

DATE OF MFG. 06/2019

FANUC CONTROL TYPE A05B-1142-B301

FANUC ARM TYPE

STK#105177

================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The LR Mate 200iD/7L can be paired with the R-30iB controller, R-30iB open air cabinet, R-30iB Mate plus cabinet, or the R-30iB iPendant touch, It is the long reach version of this series. This is a 6 axis robot.

Robot Specifications:

Axes: 6

Payload: 7kg

H-Reach: 911mm

Repeatability: ±0.03mm

Robot Mass: 27kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 370 °/s (6.46 rad/s)

J2 310 °/s (5.41 rad/s)

J3 410 °/s (7.16 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°

EQUIPPED WITH:

FANUC LR MATE 200iD MECHANICAL UNIT

FANUC R-30iB PLUS CONTROL

FANUC ROBOT CONNECTION CABLES

FANUC COLOR TEACH PENDANT

Applications:

Assembly Robots

Material Handling Robots

Order Picking Robots

Pick and Place Robots

Polishing Robots

Machine Tending Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
