Mechatronic Techniques, Inc Robot, Used, 2014
This used Mechatronic Techniques, Inc (2014) is a robot available from R.A.B. Industries. It is equipped with the nan controller.

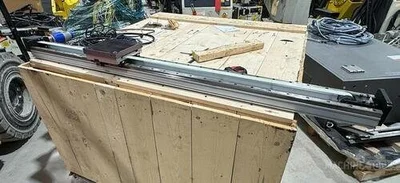

1 - LIGHTLY USED MECHATRONIC TECHNIQUES 6' LINEAR TRACK/RTU FOR
FANUC LR MATE 200iD ROBOTS
STK#105161
============================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
THESE ARE REALLY NICE SMALL ROBOT TRANSFER UNITS IN GREAT CONDITION
THAT ARE DESIGNED FOR LR MATE 200iD SERIES ROBOTS. MOVE THAT ROBOT!
EXTEND THE WORKING AREA FOR YOUR LR MATE 200iD ROBOT. IT WILL BE ABLE
TO ZIP BACK AND FORTH TO HELP YOUR SMALL ROBOT COVER A LARGE WORKING
RANGE.
OVERALL LENGTH OF RAIL 63"
WIDTH OF CARRIER 7"
APPROX. TRAVEL 56"
4 GREASABLE ZERK FITTINGS AT BASE OF CARRIER 2 FRONT 2 BACK
FANUC AC VARIABLE SPEED DRIVE MOTOR BiS 2/4000 TYPE A05B-0061-B704
MOTOR MOUNTED TO LIFETIME LUBRICATED GEAR REDUCER 1=4
WIDTH OF LINEAR WAYS 3/4"
ROBOT CARRIER PLATE 7 7/16" X 7 7/16" DRILLED AND TAPPED FOR LR MATE 200iD ROBOT
CABLE CONNECTIONS TO CONNECT TO ROBOT CONTROLLER
18-TOTAL UNITS AVAILABLE
EQUIPPED WITH:
CABLES
FANUC SERVO MOTOR
CARRIAGE FOR LR MATE 200iD ROBOT
