This used FANUC M-10iA/12 (2017) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller and 6-axis configuration.

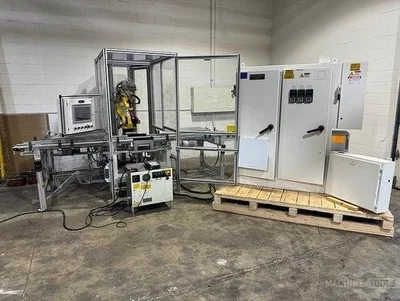

1-FANUC M-10iA/12 6 AXIS ROBOT CELL WITH R-30iB PLUS CONTROLLER

SERIAL NUMBER F209148

DATE OF MFG. 12/2017

ROBOT TYPE A05B-1224-B252

CONTROLLER TYPE A05B-2611-B222

STK#105158

HOURS ON METER 8,017

CELL TESTED UNDER POWER

=================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The FANUC M-10iA/12 R-30iB is a small but high performance handling robot that can handle up to 12kg. The robot comes with the R-30iB controller and has a reach of 1420 mm. A full 6 axis robot that has the ability of the arm flipping completely behind itself on the J3 axis.

Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 1420mm

Repeatability:±0.08mm

Robot Mass: 130kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 230 °/s (4.01 rad/s)

J2 225 °/s (3.93 rad/s)

J3 230 °/s (4.01 rad/s)

J4 430 °/s (7.5 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±250°

J3 ±447°

J4 ±380°

J5 ±380°

J6 ±720°

EQUIPPED WITH:

FANUC R-30iB PLUS CONTROL

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT CABLE

FANUC TEACH PENDANT

IO/PLC CONTROL CABINET

2 CONVEYORS

COMPLETE ENCLOSURE

Applications:

Assembly Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Order Picking Robots

Material Removal Robots

Packaging Robots

Part Transfer Robots

Pick and Place Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
