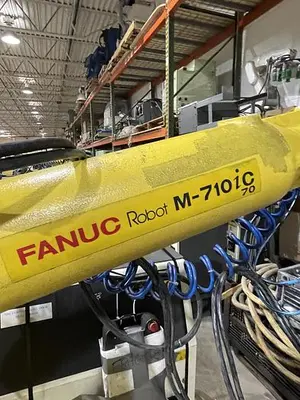

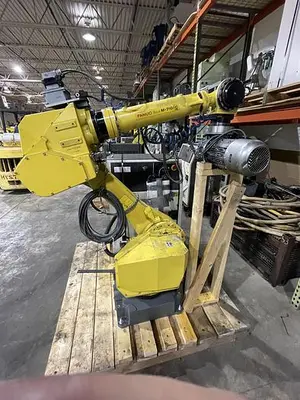

USED 2013 FANUC M-710IC/70

FANUC M-710iC/70 Robot, R-30iA Control, Used, 2013

This used FANUC M-710iC/70 (2013) is a robot available from R.A.B. Industries. It is equipped with the R-30iA controller and 6-axis configuration.

1-USED FANUC M-710iC/70 6 AXIS ROBOT WITH R-30iA CONTROLLER DATA SHEET

SERIAL NUMBER E-601149

DATE OF MFG. 04/2013

STK#105124

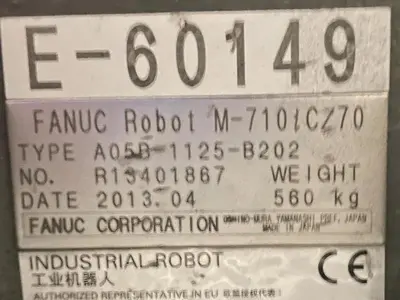

FANUC MECHANICAL ARM PART NUMBER A05B-1125-B202

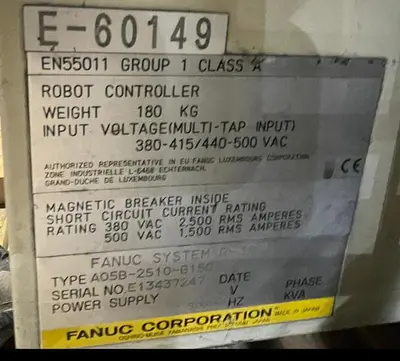

FANUC R-30iA ROBOT CONTROL PART NUMBER A05B-2510-B150

===========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The Fanuc M-710iC/70 is the heaviest M-710 in the series and highly sought after. It runs on the Fanuc R30iA or R30iB controller depending on the date of manufacture. This innovative series of lightweight robots features a slim wrist, rigid arm and small footprint. Offering best payload and inertia in its category, this powerful 6-axis model is suitable for various applications and combines a 70 kg payload with extremely high axis speeds. The robot can be deployed for a large array of applications.

Robot Specifications:

Axes: 6

Payload: 70kg

H-Reach: 2050mm

Repeatability: ±0.07mm

Robot Mass: 560kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 160 °/s (2.79 rad/s)

J2 120 °/s (2.09 rad/s)

J3 120 °/s (2.09 rad/s)

J4 225 °/s (3.93 rad/s)

J5 225 °/s (3.93 rad/s)

J6 225 °/s (3.93 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±440°

J4 ±720°

J5 ±250°

J6 ±720°

EQUIPPED WITH:

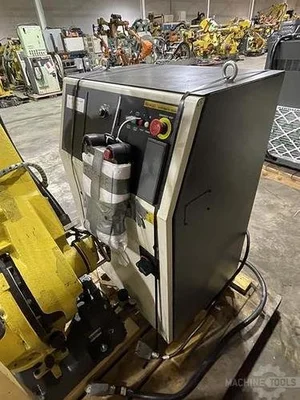

[FANUC R-30iA ROBOT CONTROLLER](https://www.rabindustries.com/blog/13020-fanuc-robtics-system-r-j3ic-and-r-30ia-robot-controller)

FANUC ROBOT CONNECTION CABLES

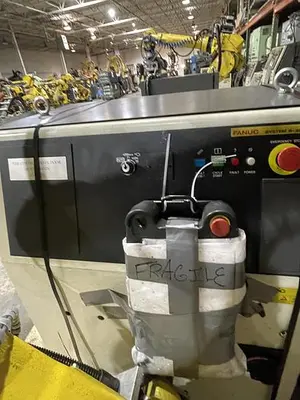

FANUC COLOR TEACH PENDANT

EE CONNECTION

Applications:

Material Handling Robots

Part Transfer Robots

Machine Loading Robots

Assembly Robots

Packaging Robots

Arc Welding Robots

Spot Welding Robots

Cutting Robots

Fiberglass Cutting Robots

Material Removal Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

[SEE CURRENT INVENTORY](https://www.rabindustries.com/fanuc-robot)
