NEW KAWASAKI BX200X

This new, never-used Kawasaki BX200X (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 7-axis configuration.

1- BRAND NEW KAWASAKI MODEL BX200X

WITH E02 OR F02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#105007

======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE

AND DEEMED RELIABLE.

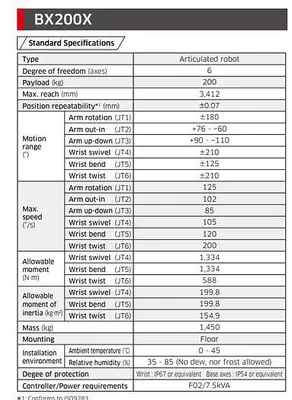

ROBOT SPECIFICATIONS:

PAYLOAD: 200KG

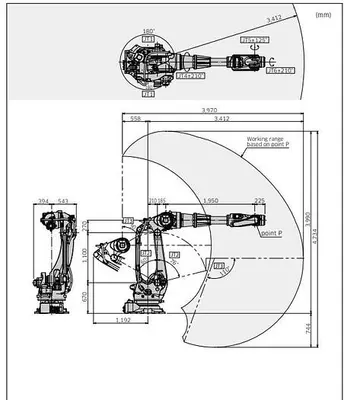

MAX. REACH: 3,412 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX/BT SERIES

POSITIONAL REPEATABILITY: ±0.07MM

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −110

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 125

ARM OUT-IN (JT2): 102

ARM UP-DOWN (JT3): 85

WRIST SWIVEL (JT4): 105

WRIST BEND (JT5): 120

WRIST TWIST (JT6): 200

ROBOT MAX WRIST TORQUE (N X M)

WRIST SWIVEL (JT4): 1,334

WRIST BEND (JT5): 1,334

WRIST TWIST (JT6): 588

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 199.8

WRIST BEND (JT5): 199.8

WRIST TWIST (JT6): 159.9

ROBOT MASS (KG)

1,450 WITHOUT OPTIONS

DEGREE OF PROTECTION

ROBOT WRIST: IP67 EQUIVALENT

BASE AXES: IP54 EQUIVALENT

EQUIPPED WITH:

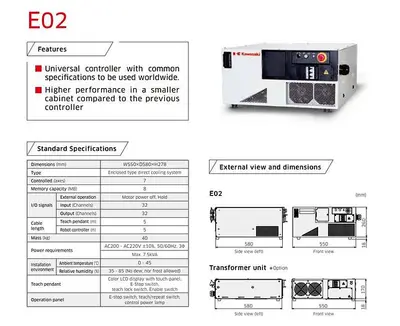

KAWASAKI ROBOTICS E02 CONTROLLER

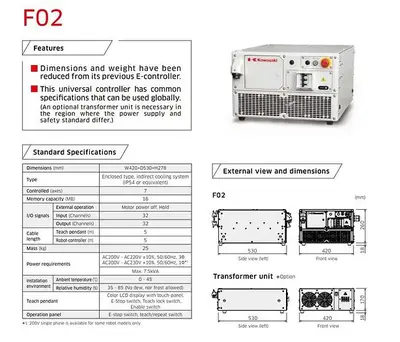

OR KAWASAKI F02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

Kawasaki makes a wide array of Industrial Robots suited for a variety of applications. They

design and manufacture

fantastic products, and they have a great track record across their decades of work in

Robotics - and in many other areas. They use their own Industrial Robots to manufacture their

own Kawasaki Products, and some of the more well known products can be seen on your

favorite off road trails, or even on the freeway! Kawasaki is heavily involved in Wafer Handling

Robots, which is related to the Semi Conductor Industry. They also have Food and Medical

Grade Robots, Explosion Proof (Thank Goodness!) Painting Robots, Collaborative Robots,

Highly Flexible 7 Axis Robots, and Education Robots, too. Kawasaki has a strong presence in

the Automotive Industry, which one may expect from an Industrial Robot Manufacturer, but

they have their hands in a little bit of everything - sort of like we do at R.A.B. Industries.

Industrial Robots, Wafer Handling Robots, Internal Combustion Engines, everyone's favorite

Dirt Bikes, and even enormous Tunnel Boring Machines - They have the knowledge,

experience, and know-how that you would expect from such a successful, diverse, and well

known company. You will not be disappointed with your Kawasaki robot. They can be

programmed simply from the pendant - called block style programming, or from their offline

programming software, called K-Roset. They also interface with 3rd party offline

programming applications. Their internal programming language - called AS Language, is

similar to C+, and is very powerful!

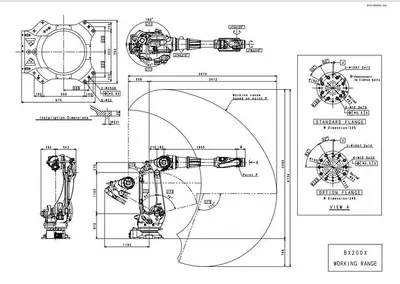

Heavy Duty, Long Reach Robot

With the longest reach of the B series line, the BX200X high speed, high payload robot is a powerful and flexible robot. It features a hollow wrist for housing cables and hoses, can accommodate large weld guns or tooling, and its small footprint makes it suitable for high-density installations.
