NEW KAWASAKI ROBOTICS RS007L

Kawasaki RS007L Robot, F60 Control, Never Used

This new, never-used Kawasaki RS007L (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 6-axis configuration.

1- BRAND NEW KAWASAKI MODEL RS007L 6 AXIS ROBOT

WITH F60 CONTROLLER, TEACH PENDANT, CABLES,

AND 14 MONTH WARRANTY

STK# 104993

=====================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER.

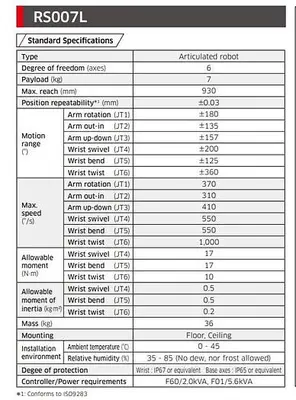

Robot Specifications:

Axes: 6

Payload: 7kg

H-Reach: 930 mm

Repeatability: ±0.03mm

Robot Mass: 36kg

Structure: Articulated

Mounting: Floor, Wall, Ceiling

Robot Motion Speed:

Jt1 370 °/s (1.66 rad/s)

Jt2 310 °/s (1.57 rad/s)

Jt3 410 °/s (1.66 rad/s)

Jt4 550 °/s (2.09 rad/s)

Jt5 550 °/s (2.09 rad/s)

Jt6 1000 °/s (3.32 rad/s)

Robot Motion Range:

Jt1 ±180°

Jt2 ±135°

Jt3 ±157°

Jt4 ±200°

Jt5 ±125°

Jt6 ±360°

EQUIPPED WITH:

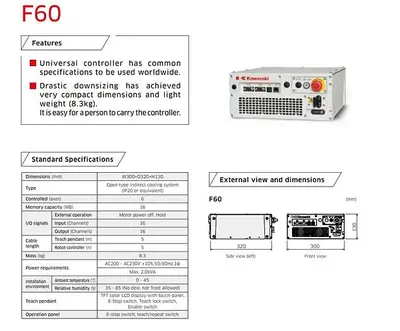

KAWASAKI F60 CONTROLLER

KAWASAKI ROBOT CONNECTION CABLES

KAWASAKI TEACH PENDANT

High Speed, High Performance Robot

The R series robots are setting the benchmark for all small to medium duty industrial robots. The RS007L is part of the next generation of the series, which offers a redesigned arm structure and main-unit weight reductions. By utilizing a cantilever design for the upper arm section, Kawasaki has achieved a longer maximum reach and an expanded range of motion below, behind and in the immediate vicinity of the robot. These enhancements result in the fastest operating speeds in its class along with increased working ranges.

Applications:

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Pick and Place Robots

Assembly Robots

Material Removal Robots

Adhesive/Dispensing Robots
