NEW 2019 KAWASAKI RS010L

Kawasaki RS010L Robot, E01 Control, Never Used, 2019

This new, never-used Kawasaki RS010L (2019) is a robot available from R.A.B. Industries. It is equipped with the E01 controller and 6-axis configuration.

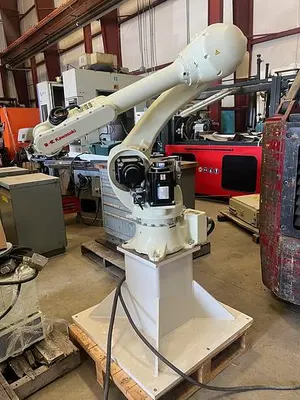

1- NEW NEVER USED KAWASAKI MODEL RS010L

WITH E01 CONTROLLER, TEACH PENDANT, CABLES,

TRANSFORMER, AND RISER.

HOURS ON THIS UNIT: 0 HOURS

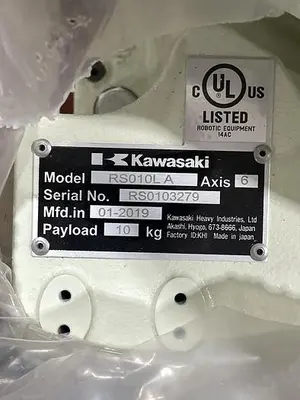

SERIAL NUMBER RS0103279

DATE OF MFG. 01/2019

STK#104982

======================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

ROBOT SPECIFICATIONS:

COMPARE TO FANUC ARC MATE 120iC/10L

PAYLOAD: 10KG

MAX. REACH: 1925MM

ROBOT CATEGORY: GENERAL PURPOSE ROBOTS (3-80KG PAYLOAD)

MOUNTING: FLOOR, CEILING

ROBOT SERIES: R SERIES

POSITIONAL REPEATABILITY: 0.05MM

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +155 - –105

ARM UP-DOWN (JT3): +150 - –163

WRIST SWIVEL (JT4): ±270

WRIST BEND (JT5): ±145

WRIST TWIST (JT6): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 190

ARM OUT-IN (JT2): 205

ARM UP-DOWN (JT3): 210

WRIST SWIVEL (JT4): 400

WRIST BEND (JT5): 360

WRIST TWIST (JT6): 610

ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 22

WRIST BEND (JT5): 22

WRIST TWIST (JT6): 10

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 0.7

WRIST BEND (JT5): 0.7

WRIST TWIST (JT6): 0.2

ROBOT MAXIMUM SPEED (MM/S)

13,100

ROBOT MASS (KG)

230

DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP65

APPLICATIONS:

MIG WELDING ROBOT

ARC WELDING ROBOT

MATERIAL HANDLING ROBOT

WATER JET CUTTING ROBOT

FIBERGLASS CUTTING ROBOT

MACHING TENDING ROBOT

EQUIPPED WITH:

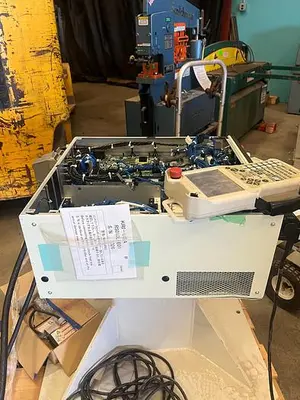

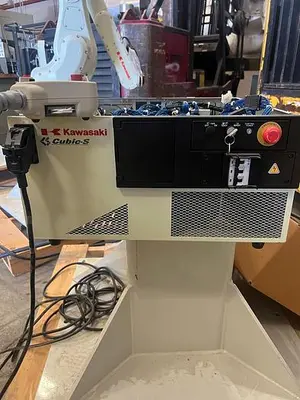

KAWASAKI ROBOTICS E01 CONTROLLER

KAWASAKI ROBOT CONNECTION CABLES

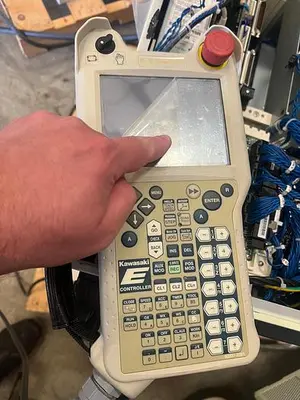

KAWASAKI COLOR TEACH PENDANT

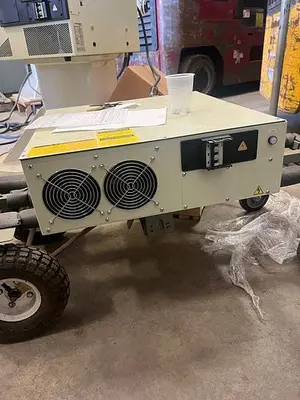

KAWASAKI TRANSFORMER

DESCRIPTION:

Kawasaki’s R series robots are setting the benchmark for all small to medium duty

industrial robots. The compact design along with industry leading speed, reach, and work

range make the R series robots ideal for a wide range of applications in a multitude of

diverse industries.

Features:

High-speed operation

The light weight of the R series arm together with high output, high revolution motors provide industry leading

acceleration and high-speed operation. The acceleration rate automatically adjusts to suit the payload and robot

posture to deliver optimum performance and the shortest cycle times.

High torque:

High output motors combined with a rigid arm construction deliver superior wrist torque and load capacity. This

high torque rating lets system designers select from a broad range of end-of-arm tooling, as well as provides more

­flexibility when working with complex workpieces.

Wide work range:

In addition to extending the robot’s maximum reach, the rotation range of each axis has also been increased. The

extended motion range translates to a larger usable work area with minimal dead space and greater fl­exibility.

Environmental protection

The R series incorporates a double seal construction on all axes and water-resistant electrical connections, offering

an IP67 classification for the wrist and IP65 for the remaining axes. If a washdown arm is required, the entire

robot can be provided as IP67. (Except for the RS003N, RS005N and RS005L)

Integrated features:

Built-in pneumatic lines and internal wiring for sensors and solenoid valves are standard. Mounting pads and taps

are provided to allow the easy installation of additional cabling, tubing or equipment
