NEW KAWASAKI BU015X

Kawasaki BU015X Robot, Never Used

This new, never-used Kawasaki BU015X (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller and 7-axis configuration.

1- BRAND NEW KAWASAKI MODEL BU015X 7 AXIS

SEALING/DISPENSING ROBOT WITH E52 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104979

======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

ROBOT SPECIFICATIONS:

PAYLOAD: 15KG

MAX. REACH: 2,887.5MM

ROBOT CATEGORY: ARTICULATED 7 AXIS ROBOT

MOUNTING: FLOOR

POSITIONAL REPEATABILITY: ±0.06MM

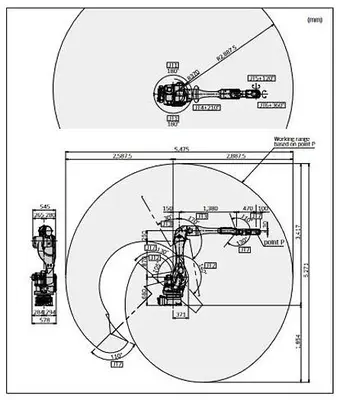

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +140 - −105

ARM UP-DOWN (JT3): +30 - −170

WRIST SWIVEL (JT4): ±210

WRIST BEND1 (JT7): +110 - −130 THIS IS A UNIQUE 7 AXIS ROBOT DESIGNED FOR SEALING/DISPENSING

WRIST BEND2 (JT5): ±120

WRIST TWIST (JT6): ±360

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 200

ARM OUT-IN (JT2): 200

ARM UP-DOWN (JT3): 200

WRIST SWIVEL (JT4): 290

WRIST BEND1 (JT7): 170 THIS IS A UNIQUE 7 AXIS ROBOT DESIGNED FOR SEALING/DISPENSING

WRIST BEND2 (JT5): 280

WRIST TWIST (JT6): 360

MAX SPEED: 5,000 MM/S

ROBOT WRIST MOMENT (N X M)

WRIST BEND (JT5): 27

WRIST TWIST (JT6): 22

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST BEND (JT5): .7

WRIST TWIST (JT6): .25

ROBOT MASS (KG)

590

EQUIPPED WITH:

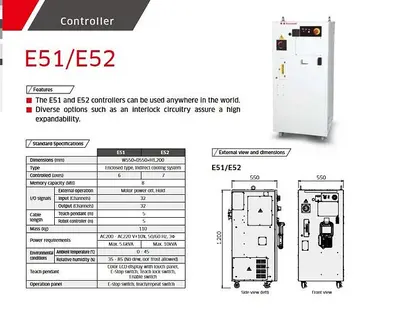

KAWASAKI ROBOTICS E52 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

Sealing-Specific Robot with Seventh Axis

The BU015X robots' 7-axis design allows it to seal hard-to-reach areas where a conventional 6-axis robot cannot reach, such as the underside of car bodies. Its long 2887.5 mm reach also allows for sealing on large workpieces. The robot's hollow, compact arm accommodates cables and hoses inside the wrist, upper arm and base. This design feature eliminates interference with peripheral equipment and makes offline programming easier.
