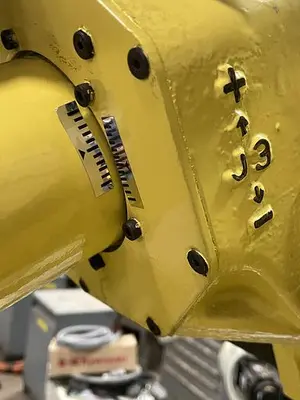

USED 2005 FANUC ARCMATE 120IB

This used FANUC Arcmate 120iB (2005) is a robot available from R.A.B. Industries. It is equipped with the RJ3iB controller and 6-axis configuration.

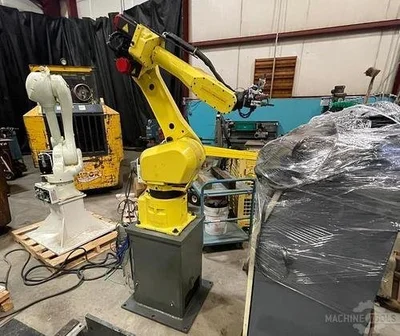

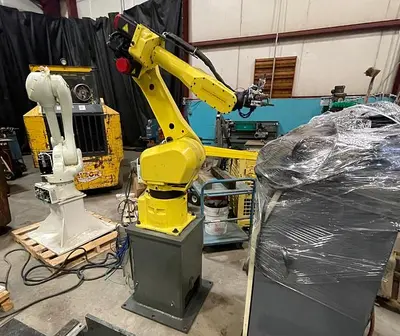

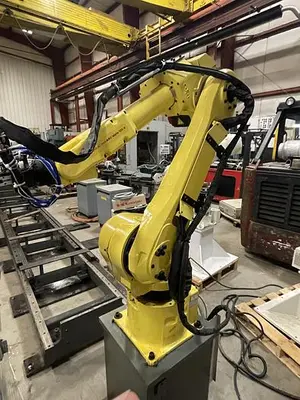

1-USED FANUC ARC MATE 120iB 6 AXIS ROBOT WITH R-J3iB CONTROLLER

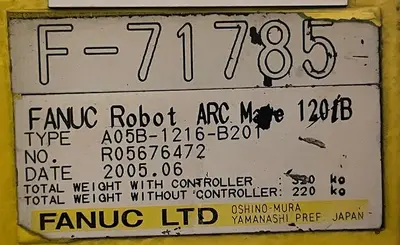

SERIAL NUMBER F71785 FANUC Robot

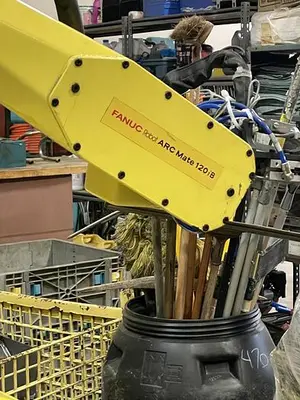

ARC Mate 120iB

TYPE A05B-1216-B20

NO R05676472

DATE 2005.06

TOTAL WEIGHT WITH CONTROLLER 320kg

TOTAL WEIGHT WITHOUT *CONTROLLER: 220kg

FANUC LTD HW OSHINO-MURA YAMANASHI PREF JAPAN

STK#104978

==========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

ROBOT IS VERY CLEAN USED IN A MATERIAL HANDLING APPLICATION.

Suit­able for high-speed weld­ing and cut­ting process­es, the Fanuc ARC Mate 120iB is a six-axis robot­ic arm that is ser­vo-dri­ven. The Fanuc 120iB RJ3iB weld­ing robot pro­vides accu­rate and con­sis­tent path per­for­mance based on its sim­ple and reli­able construction.

ROBOT SPECIFICATIONS:

PAYLOAD 20 kg

REACH 1667 mm

AXES 6

REPEATABILITY 0.08 mm

MASS 220 kg

STRUCTURE Articulated

MOUNTING Floor, Inverted, Angle

ROBOT MOTION SPEED:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

ROBOT MOTION RANGE:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

EQUIPPED WITH:

FANUC R-J3iB CONTROLLER

FANUC TEACH PENDANT

FANUC ROBOT CONNECTION CABLES

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
