USED 2005 FANUC FANUC ARCMATE 100IB

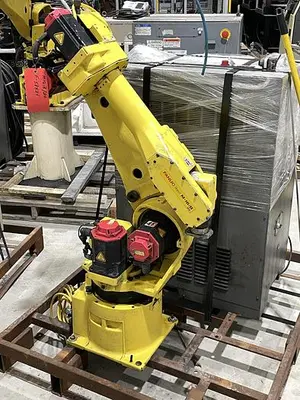

This used FANUC Arcmate 100iB (2005) is a robot available from R.A.B. Industries. It is equipped with the RJ3iB controller.

1-USED FANUC ARCMATE 100iB ROBOT WITH RJ3iB CONTROLLER

ROBOT SERIAL NUMBER F68548

DATE OF MFG. 02/2005

HOURS ON METER 11,254

STK#104953

============================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications

Axes:6

Payload:6.00kg

H-Reach:1373.00mm

Repeatability:±0.0800mm

Robot Mass:135.00kg

Structure:ArticulatedMounting:Floor, Inverted, Wall, Angle

Robot Motion Speed

J1150 °/s (2.62 rad/s)

J2160 °/s (2.79 rad/s)

J3170 °/s (2.97 rad/s)

J4400 °/s (6.98 rad/s)

J5400 °/s (6.98 rad/s)

J6520 °/s (9.08 rad/s)

Robot Motion Range

J1±170°

J2+160° - 90°

J3+145° - 170°

J4±190°

J5±140°

J6±360°

Robot Controller

FANUC R-J3iB

FANUC ROBOT CONNECTION CABLES

FANUC TEACH PENDANT

Robot Applications

- Arc Welding Robots
- Welding Automation Robots
- MIG Welding Robots
- Orbital Welding Robots
- Oxyacetylene Welding Robots
- Plasma Cutting Robots
- Plasma Welding Robots
- Submerged Arc Welding Robots
- TIG Welding Robots
