USED FANUC ARCMATE 120IB

This used FANUC Arcmate 120iB (nan) is a robot available from R.A.B. Industries. It is equipped with the RJ3iB controller and 6-axis configuration.

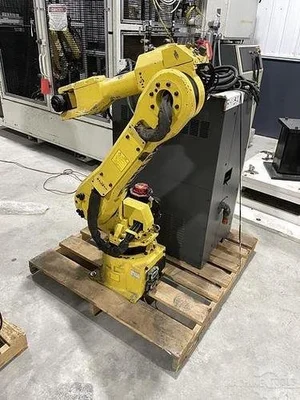

1-USED FANUC ARCMATE 120iB 6 AXIS ROBOT WITH RJ3iB CONTROLLER

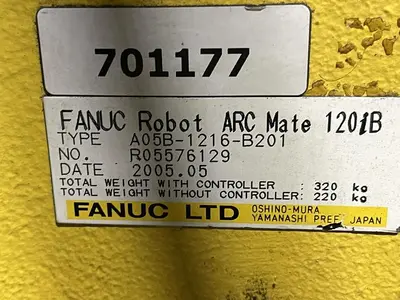

ARM SERIAL NUMBER: F701177

DATE OF MFG:

STK#104955

==============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

For high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction. In addition to high-speed cutting and welding, the ARC Mate 120iB is capable of performing a variety of welding applications, including MIG welding, TIG welding, Plasma welding and Plasma cutting.

Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1667mm

Repeatability: ±0.08mm

Robot Mass: 220kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

Applications:

MIG Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots

MAG Welding Robots

Welding Automation Robots

Arc Welding Robots

EQUIPPED WITH:

FANUC RJ3iB CONTROLLER

FANUC RCC CABLES

FANUC TEACH PENDANT
