NEW KAWASAKI BX250L

Kawasaki BX250L Robot, F02 Control, Never Used

This new, never-used Kawasaki BX250L (nan) is a robot available from R.A.B. Industries. It is equipped with the nan controller.

1- BRAND NEW KAWASAKI MODEL BX250L

WITH F02 CONTROLLER, TEACH PENDANT, CABLES,

STANDARD 14 MONTH WARRANTY

STK#104938

======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

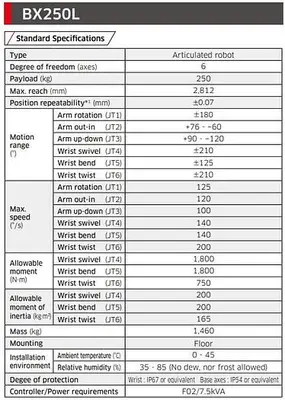

ROBOT SPECIFICATIONS:

PAYLOAD: 250KG

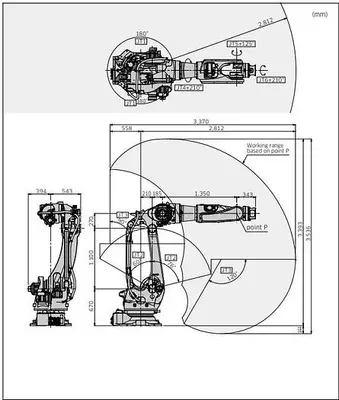

MAX. REACH: 2,812 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX SERIES

POSITIONAL REPEATABILITY: ±0.07MM

ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −120

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210

MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 125

ARM OUT-IN (JT2): 120

ARM UP-DOWN (JT3): 100

WRIST SWIVEL (JT4): 140

WRIST BEND (JT5): 140

WRIST TWIST (JT6): 200

ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 1,800

WRIST BEND (JT5): 1,800

WRIST TWIST (JT6): 750

ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 200

WRIST BEND (JT5): 200

WRIST TWIST (JT6): 165

ROBOT MASS (KG)

1,460

DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP54

EQUIPPED WITH:

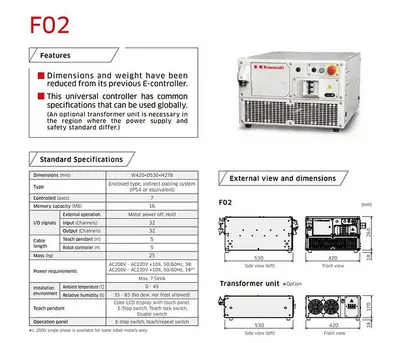

KAWASAKI ROBOTICS F02 CONTROLLER

CABLES

TEACH PENDANT

STANDARD 14 MONTH WARRANTY

Description:

Kawasaki's large general-purpose robots (100-300kg payload) are used in diverse industries, such as the automobile, aerospace, machinery, metal working, electric, electronics and food industries. With high versatility, they can be used for a wide range of applications including assembling, handling and spot welding.

The BX/BT series robots are equipped with hollow wrists and arms.
